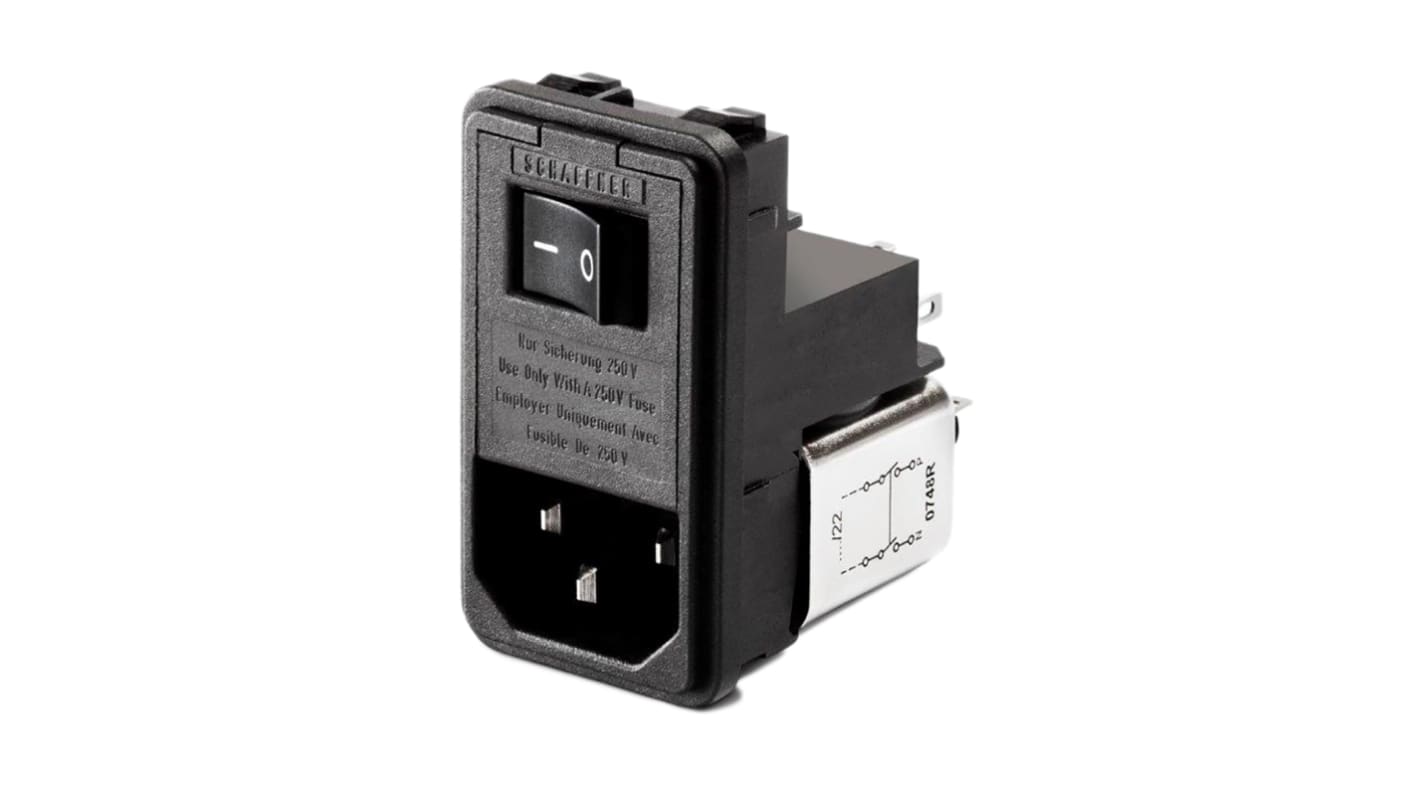

Schaffner 2A, 250 V ac Male Flange Mount IEC Inlet Filter 2 Pole FN388-2-22, Solder 2 Fuse
- RS Stock No.:
- 882-6910
- Mfr. Part No.:
- FN388-2-22
- Brand:
- Schaffner
Discontinued product
- RS Stock No.:
- 882-6910
- Mfr. Part No.:
- FN388-2-22
- Brand:
- Schaffner
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TH
Product Details
Schaffner FN380 Series
The FN 380 power entry module combines an IEC inlet, a mains filter with a single or dual fuse holder and a 2-pole rocker switch. A wide selection on amperage ratings, fuse options, mounting possibilities and filters for medical applications are designed to offer you the desired solution.
Can be used in a wide range of applications such as portable electrical and electronic equipment, consumer goods, EDP & office equipment, single-phase power supplies, switch-mode power supplies, test & measurement equipment and medical equipment.
Can be used in a wide range of applications such as portable electrical and electronic equipment, consumer goods, EDP & office equipment, single-phase power supplies, switch-mode power supplies, test & measurement equipment and medical equipment.
Up to 6A current ratings
IEC 950-compliant (twin fuse configurations only)
General purpose applications
Rear/front or snap-in mounting
Single or dual-fuse holder
2-pole rocker switch
IEC 950-compliant (twin fuse configurations only)
General purpose applications
Rear/front or snap-in mounting
Single or dual-fuse holder
2-pole rocker switch
Note
Snap-in and screw mount versions available.
Approvals
UL recognised component, VDE, CSA certified, SEMKO
Specifications
Attribute | Value |
|---|---|
| Gender | Male |
| Number of Fuses | 2 |
| Fuse Size | 6.3 x 32mm |
| Switch Type | 2 Pole |
| Termination Method | Solder |
| Current Rating | 2A |
| Voltage Rating | 250 V ac |
| Mounting Type | Flange Mount |
| Operating Frequency | 50 → 400Hz |
| IEC Connector Type | C14 |
| Width | 50mm |
| Depth | 56.5mm |
| Height | 58mm |
