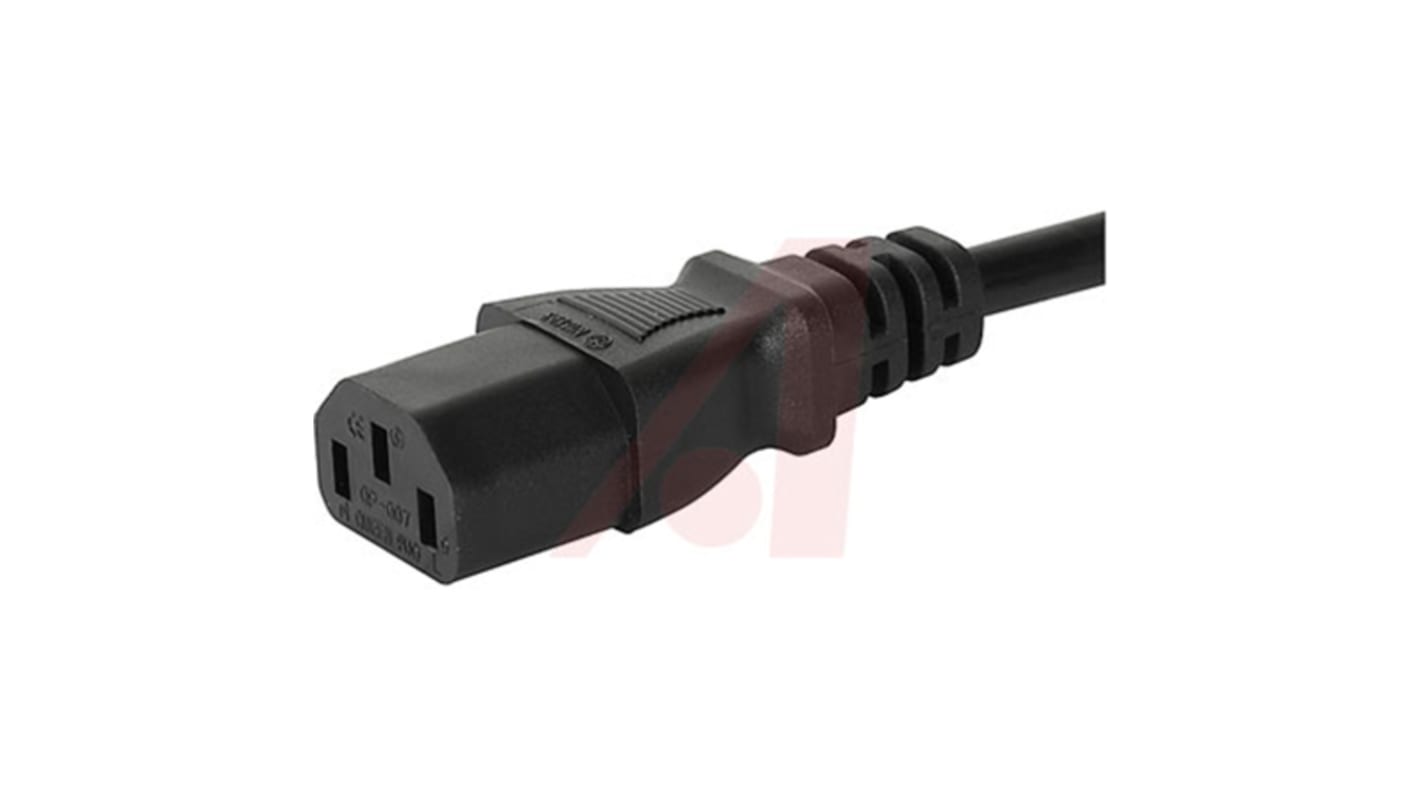

Schurter C13 Cable Mount IEC Connector Socket, Plug, 10A, 250 V ac

  • RS Stock No. 870-2237
  • Mfr. Part No. 6011.0215
  • Brand Schurter
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

RS Pro C13 Socket Lead

Brought to you from RS Pro, this power cable cord has a fully moulded IEC C13 socket and non-terminated integral leads. The 'mains lead' cable is PVC 3 core 1.0 mm² rated with the socket at 250 V ac 7 or10A max. to EN60320. C13 sockets are widely used in household and commercial appliances, typically in computer monitors and larger utilities. The non-terminated end allows flexibility and convenience when installing appliances. All models are highly reliable and excellent quality.

Approvals

VDE, IMQ, SEV, SEMKO, GOST

IEC and International Leads

A range of electrical appliance connecting leads, the majority of which are terminated with connectors that conform to IEC 60320. The IEC (International Electrotechnical Commission) is the international standards and conformity assessment body. The drawing illustrates the range of connector types offered within this section - The 'odd' 'C' numbers refer to a socket type connector - mains input - and the 'even' 'C' numbers refer to a plug type connector - the appliance inlet.

Specifications
Attribute Value
IEC Connector Type C13
Mounting Type Cable Mount
Gender Female, Male
Current Rating 10A
Body Orientation Straight
Switch Type None
Number of Fuses None
Voltage Rating 250 V ac
Rewireable Yes
Available to back order for despatch 05/01/2021
Price Each (In a Pack of 50)
£ 7.749
(exc. VAT)
£ 9.299
(inc. VAT)
Units
Per unit
Per Pack*
50 +
£7.749
£387.45
*price indicative
