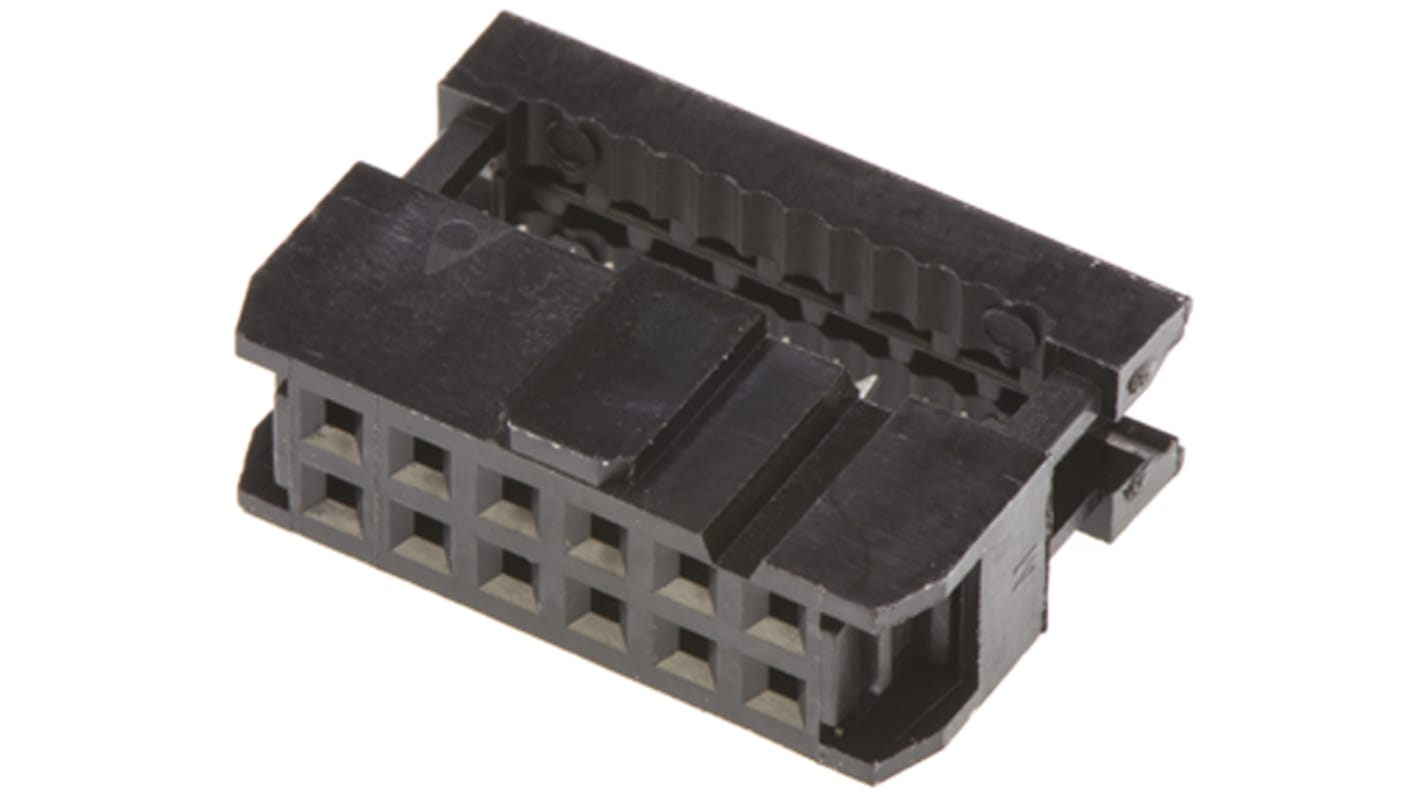

Amphenol ICC 12-Way IDC Connector Socket for Cable Mount, 2-Row

RS Stock No.:: 832-3626
Mfr. Part No.:: T812112A100CEU
Brand:: Amphenol ICC

Amphenol ICC 12-Way IDC Connector Socket for Cable Mount, 2-Row

1287 In stock - FREE next working day delivery available

272 available from Europe for delivery within 1 working day(s).

Added

Price Each

£1.43

(exc. VAT)

£1.72

(inc. VAT)

Units	Per unit
1 - 49	£1.43
50 - 99	£0.41
100 - 499	£0.32
500 - 999	£0.27
1000 +	£0.24

RS Stock No.:: 832-3626
Mfr. Part No.:: T812112A100CEU
Brand:: Amphenol ICC

Technical Reference

T812 Series Drawing

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

Amphenol T812 Series 2.54mm IDC Ribbon Cable Socket Connector

T812 series IDC ribbon cable socket connectors with a 2.54mm pitch and 1.27mm lead pitch. These wire to board T812 2.54mm IDC ribbon cable connectors are made from black UL 94V-0 PBT, have gold flash plated IDC receptacle contacts and are available with or without a strain relief.
Part numbers T812-1-XX-XX-00-CEU - without strain relief
Part numbers T812-1-XX-XX-01-CEU - with strain relief

2.54mm Amphenol T812 Range

Specifications

Attribute	Value
Number of Contacts	12
Number of Rows	2
Gender	Female
Pitch	2.54mm
Mounting Type	Cable Mount
Body Orientation	Straight
Termination Method	IDC
Current Rating	3A
Contact Plating	Gold
Series	T812
Minimum Operating Temperature	-40.0°C
Maximum Operating Temperature	105.0°C
Voltage Rating	250.0 V ac
Housing Material	PBT
Contact Material	Beryllium Copper
