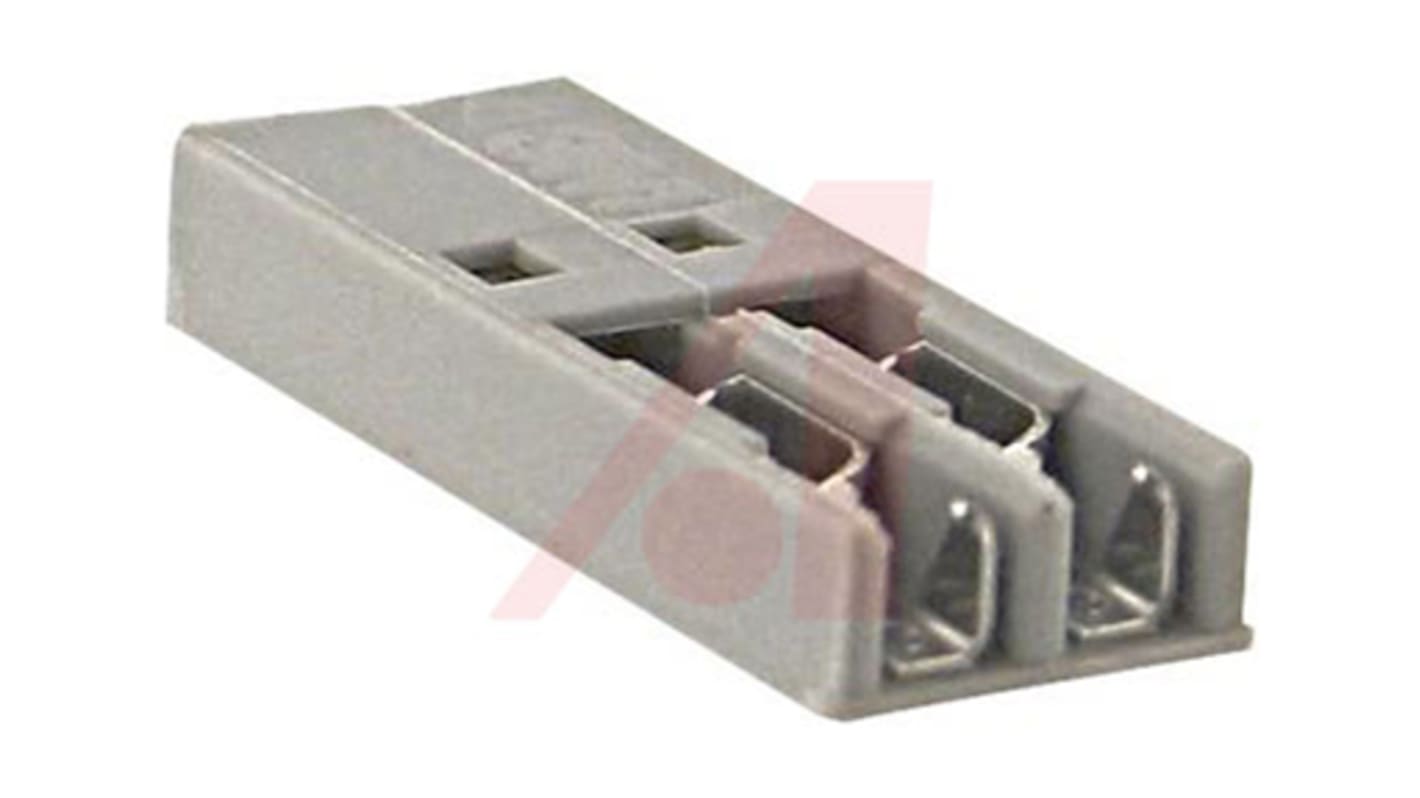

3M 2-Way IDC Connector Socket for Cable Mount, 1-Row

  • RS Stock No. 827-1673
  • Mfr. Part No. CHG-1002-001010-KCP
  • Brand 3M
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

Military/DIN 41612 Compatible Wiremount Sockets

These 3M Polarized Wiremount Sockets accept notched flat cable with 0.01 inch pitch or discrete wire. The design of these Polarized Wiremount Sockets uses twin slot IDC to give four points of contact to the wire. Twin slots and Centre Bump provide the Polarization for these Wiremount Sockets.

Note

Mates to 3M long ejector latched headers and plugs.

DIN 41612

Specifications
Attribute Value
Number of Contacts 2
Number of Rows 1
Gender Female
Pitch 2.54mm
Mounting Type Cable Mount
Body Orientation Straight
Termination Method IDC
Current Rating 1A
Contact Plating Gold over Nickel
Series CHG
Minimum Operating Temperature -55°C
Maximum Operating Temperature +105°C
Voltage Rating 500 V ac
Contact Material Brass
Housing Material Glass-Filled PET
