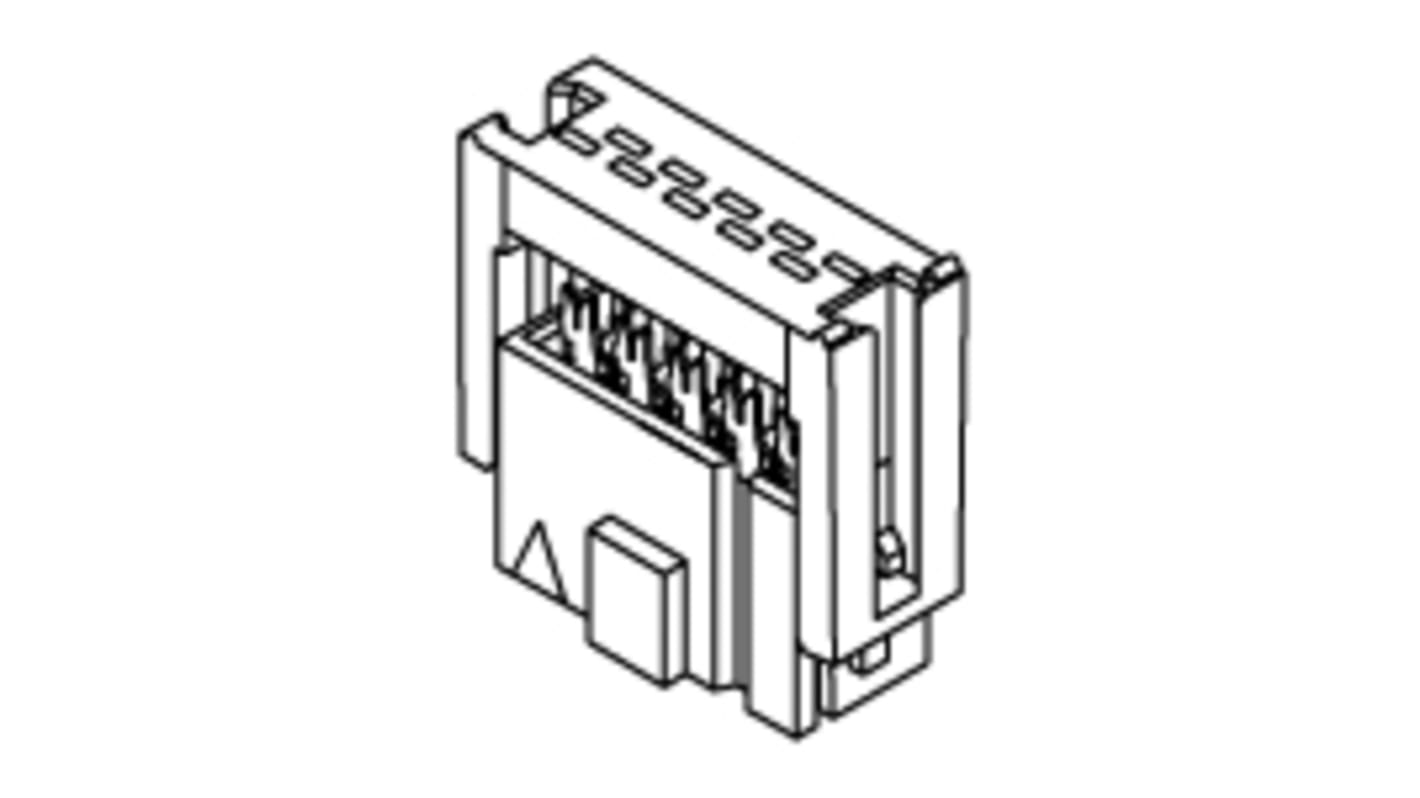

Molex 34-Way IDC Connector Socket for Cable Mount, 2-Row

  • RS Stock No. 178-9708
  • Mfr. Part No. 90635-1343
  • Brand Molex
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IE
Product Details

1.27mm Pitch QF-50 Single Beam, Vertical MIL/DIN Version, 0.38μm Gold (Au), 34 Circuits

Specifications
Attribute Value
Number of Contacts 34
Number of Rows 2
Gender Female
Pitch 1.27mm
Mounting Type Cable Mount
Body Orientation Vertical
Termination Method IDC
Current Rating 1A
Contact Plating Gold, Tin
Series QF-50
Minimum Operating Temperature -25°C
Maximum Operating Temperature +85°C
Voltage Rating 250 V ac, 250 V dc
Housing Material Polyester
Contact Material Phosphor Bronze
Available to back order for despatch 14/12/2020
Price Each (In a Tray of 760)
£ 1.008
(exc. VAT)
£ 1.21
(inc. VAT)
Units
Per unit
Per Tray*
760 +
£1.008
£766.08
*price indicative
