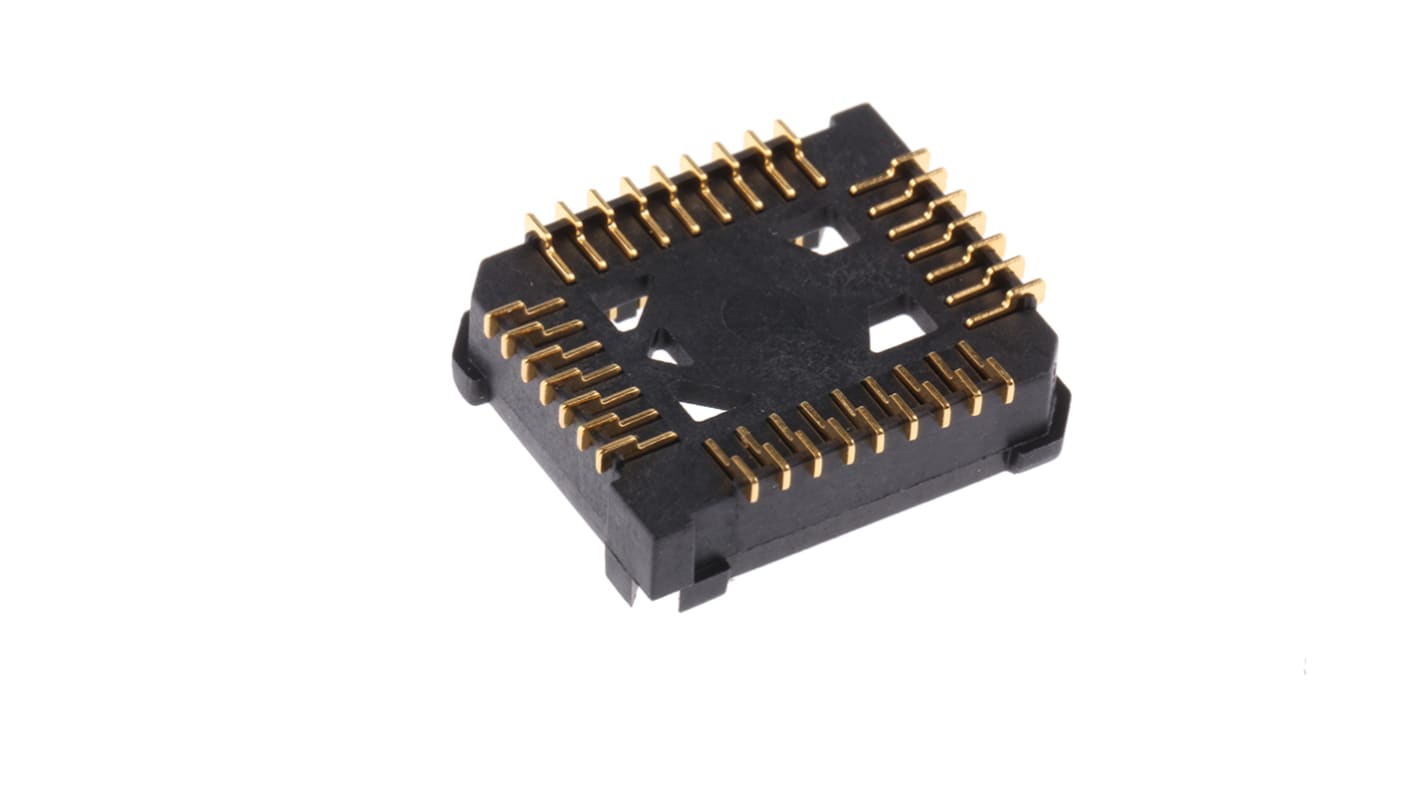

E-TEC 1.27mm Pitch 32 Way PLCC Socket

  • RS Stock No. 600-7811
  • Mfr. Part No. LCC-032-H200-55
  • Brand E-TEC
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

LCC Sockets for surface-mounted soldering

LCC enclosure production sockets compliant with JEDEC Type C standard.
Feature SMT output
Cut-out body for testing soldering.
Each socket is supplied with a retention clip.
Contacts in gold-plated beryllium copper over nickel.
Diagonal slots for removal of the component using the extraction tool stock no.
104-4310.

Specifications
Attribute Value
IC Socket Type PLCC Socket
Gender Female
Number of Contacts 32
Pitch 1.27mm
Body Orientation Straight
Contact Material Beryllium Copper
Contact Plating Gold over Nickel over Copper
Current Rating 1.0A
Termination Method Solder
Housing Material Polymer
62 In stock - FREE next working day delivery available
21 available from Europe for delivery within 1 working day(s)
Price Each
£ 4.58
(exc. VAT)
£ 5.50
(inc. VAT)
Units
Per unit
1 +
£4.58
