Yamaichi 1.27mm Pitch 44 Way PLCC Socket

  • RS Stock No. 117-8520
  • Mfr. Part No. IC51-0444-400
  • Brand Yamaichi
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): JP
Product Details

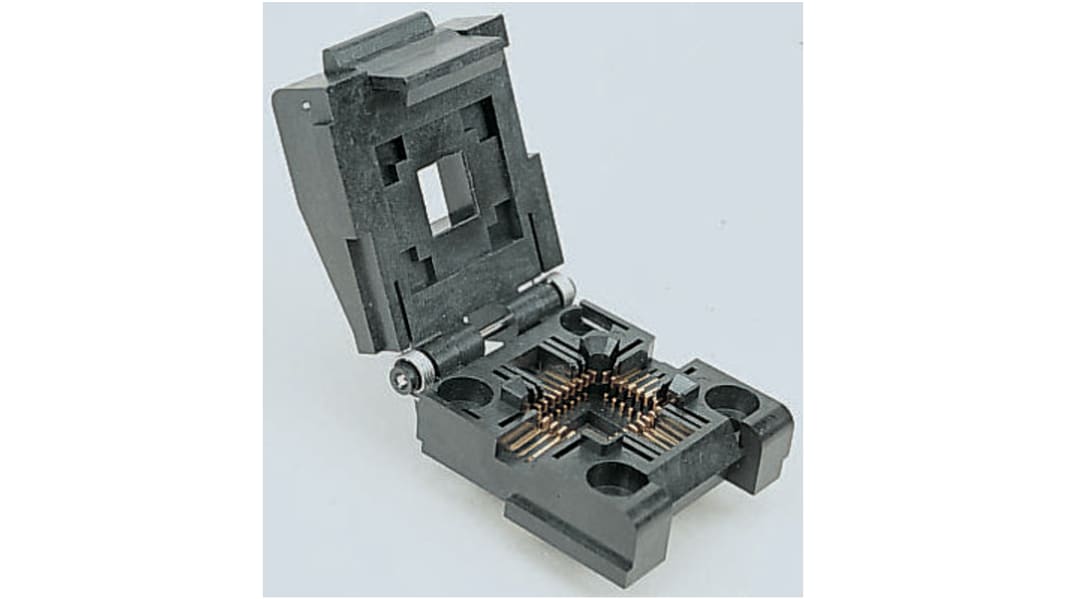

PLCC Test Sockets Clamshell

Clamshell test sockets for PLCC's
Spring loaded hinged lid latches to retain ICs
Easy, repeatable access for test purposes
Full performance material and electrical specification
Body material glass filled Polyethersulfone (PES)
Contact material Beryllium Copper
Contact plating Gold
Insulation Resistance 1000 MΩ (At 500 Vdc)
Contact resistance 30mΩ (at 10mA)
Current rating 1A
Operating temperature -55°C to 170°C
Durability 10000 insertions

Specifications
Attribute Value
IC Socket Type PLCC Socket
Gender Female
Number of Contacts 44
Pitch 1.27mm
Body Orientation Straight
Contact Material Beryllium Copper
Contact Plating Gold over Nickel
Current Rating 1.0A
Termination Method Solder
Housing Material PES
2 In stock - FREE next working day delivery available
Price Each
£ 73.86
(exc. VAT)
£ 88.63
(inc. VAT)
Units
Per unit
1 - 24
£73.86
25 - 74
£66.47
75 - 199
£59.07
200 - 399
£51.70
400 +
£48.00
