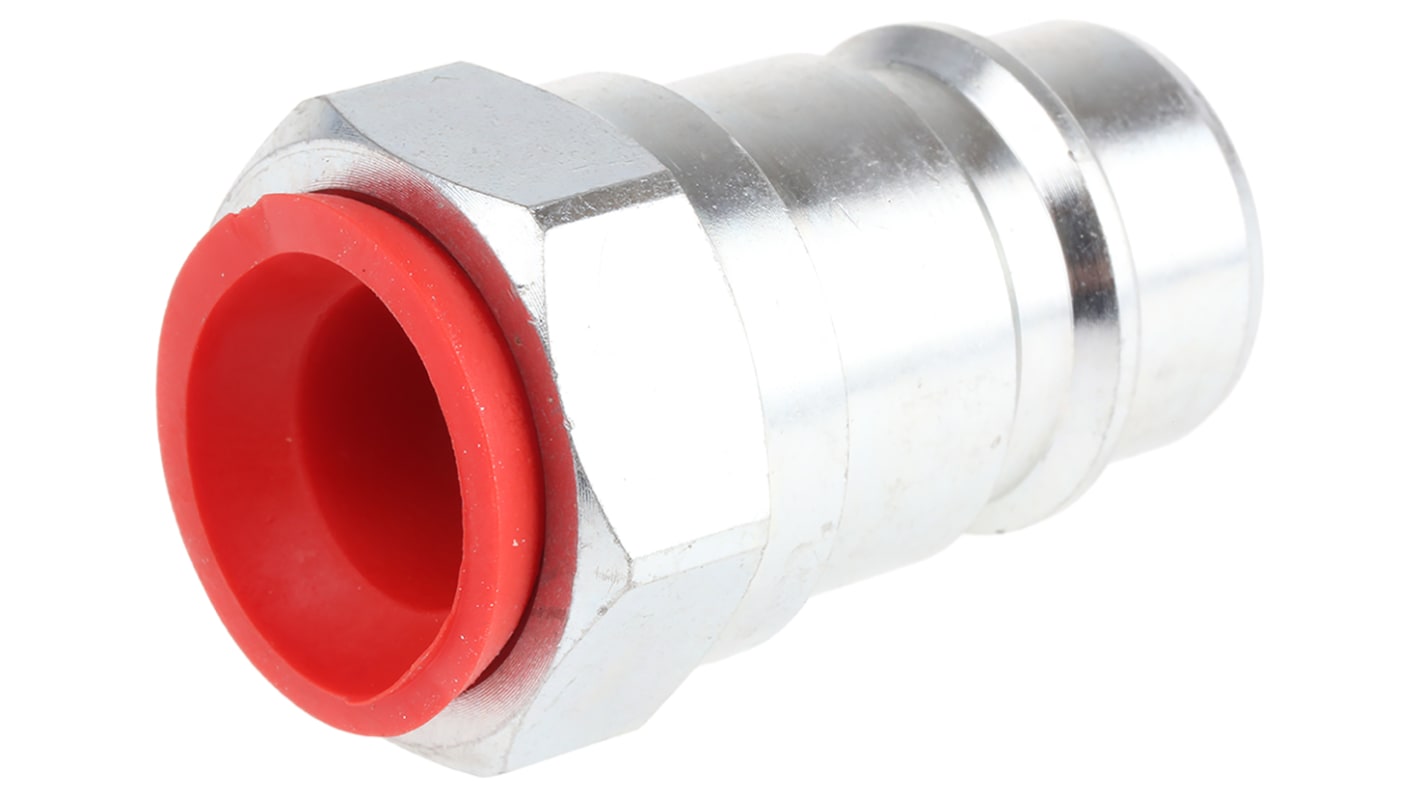

RS PRO Steel Male Hydraulic Quick Connect Coupling 1/2 in

Technical Reference
Legislation and Compliance
Non Compliant
COO (Country of Origin): TR
Product Details

ISO Quick Couplers, ANV series

Strong and durable self-sealing quick couplers for general use in industrial and agricultural applications.
The built-in shut-off valve ensures maximum sealing even at low pressure.

Standard: ISO 7241-A

Standards

ISO 7241-A

Ball Locking

Couplings manufactured to ISO standards and fitted with NBR (Nitrile) seals, with secondary PTFE seals for backup purposes. Suitable for working environments within -25 to 125°C.

Specifications
Attribute Value
Compatible With Faster ANV Series, Hansen HA 15000 (Gromelle), Intertraco A Series, Safeway S565, Stucchi BIR Series
Type Union
Coupling Gender Male
Locking Style Ball Lock
Thread BSP 1/2 Male
Material Steel
Finish Yellow Passivated, Zinc Plated
Seal Material Nitrile Rubber
Thread Size 1/2in
Thread Standard BSP
Thread Gender Male
Maximum Operating Pressure 250 bar
Maximum Operating Temperature +125°C
Minimum Operating Temperature -25°C
317 In stock for FREE next working day delivery
Price Each
£ 3.81
(exc. VAT)
£ 4.57
(inc. VAT)
Units
Per unit
1 - 4
£3.81
5 - 9
£3.69
10 +
£3.57
