RS PRO Steel Male Hydraulic Quick Connect Coupling, BSP 1/4 Male
- RS Stock No.:
- 745-4700
- Brand:
- RS PRO
202 In stock - FREE next working day delivery available
29 available from Europe for delivery within 1 working day(s).
Added
Price Each
£7.55
(exc. VAT)
£9.06
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £7.55 |
| 5 - 9 | £7.32 |
| 10 + | £7.07 |
- RS Stock No.:
- 745-4700
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
Non Compliant
- COO (Country of Origin):
- TR
Product Details

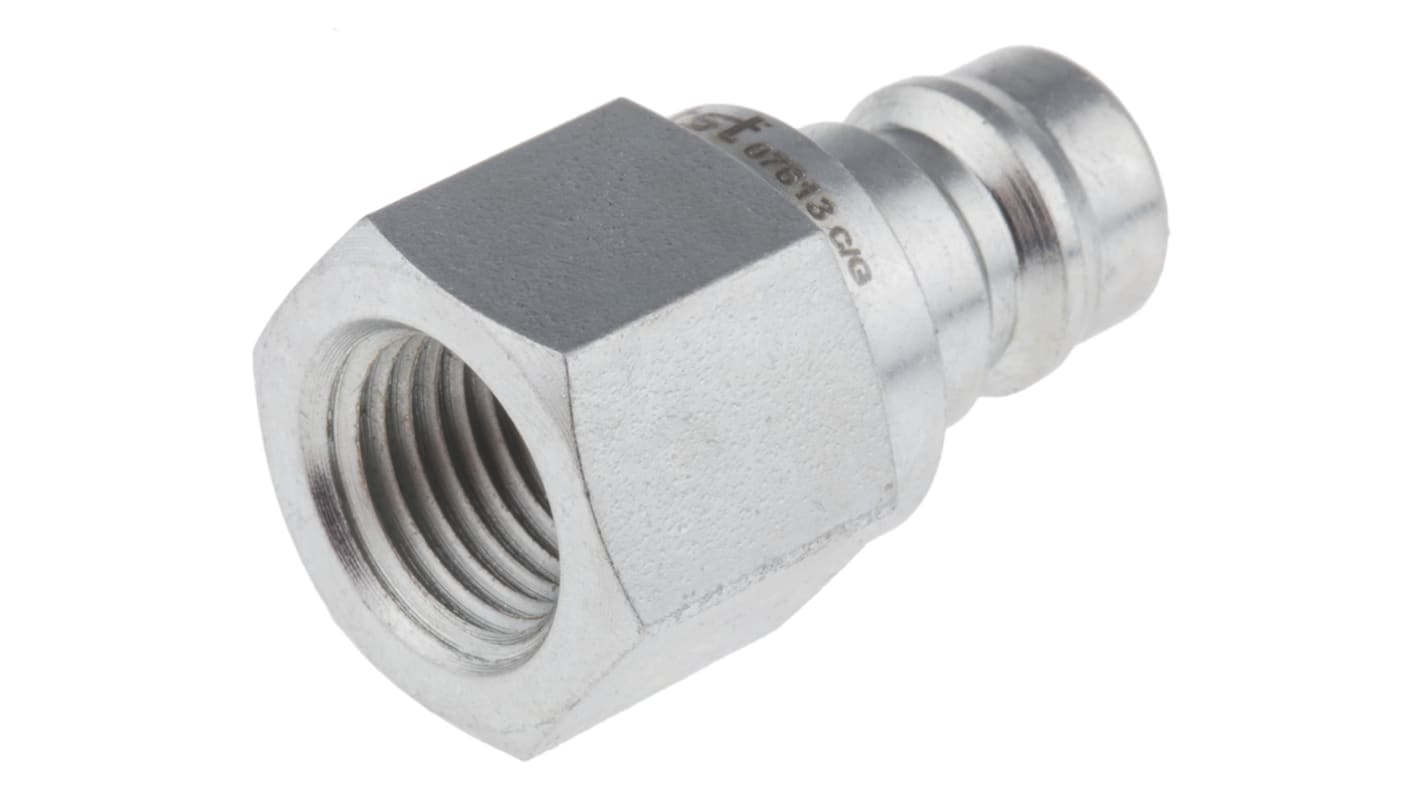

RS PRO 1/4in Steel Hydraulic Quick Connect Coupler
A hydraulic quick coupling enabling fluid flow to be shut off instantly in order to prevent hydraulic fluid leakage. Manufactured to ISO standards the self sealing coupler features a NBR (Nitrile) O-ring seal with a secondary PTFE seal for back up purposes and enabling double shut off.
Constructed from strong and durable Chromate Steel with a protective and corrosion resistant Zinc plating and Stainless Steel ball bearings the quick connect couple is hardwearing and suitable for temperature extremes of -25 to 125°C.
The hydraulic coupler is suitable for use in a range of applications and provides excellent sealing even at low pressure and is commonly found in industrial and agricultural environments.
Compatibility
The RS PRO 1/4in male Hydraulic Coupling is interchangeable with FASTER ANV Series, STUCCHI BIR Series, INTERTRACO A Series, SAFEWAY S565, HANSEN HA 15000 (GROMELLE)
Features and Benefits
1/4in quick connect coupler
Male
Chromate Steel
Stainless Steel ball bearings
Zinc plating
NBR O-ring seal
PTFE secondary seal
Male
Chromate Steel
Stainless Steel ball bearings
Zinc plating
NBR O-ring seal
PTFE secondary seal
Standards and Approvals: ISO 7241-A
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
Specifications
Attribute | Value |
|---|---|
| Thread | BSP 1/4 Male |
| Coupling Gender | Male |
| Thread Size | 1/4in |
| Material | Steel |
| Compatible With | Faster ANV Series, Hansen HA 15000 (Gromelle), Intertraco A Series, Safeway S565, Stucchi BIR Series |
| Type | Union |
| Locking Style | Ball Lock |
| Finish | Yellow Passivated, Zinc Plated |
| Seal Material | Nitrile Rubber |
| Thread Standard | BSP |
| Thread Gender | Male |
| Maximum Operating Pressure | 400 bar |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -25°C |
