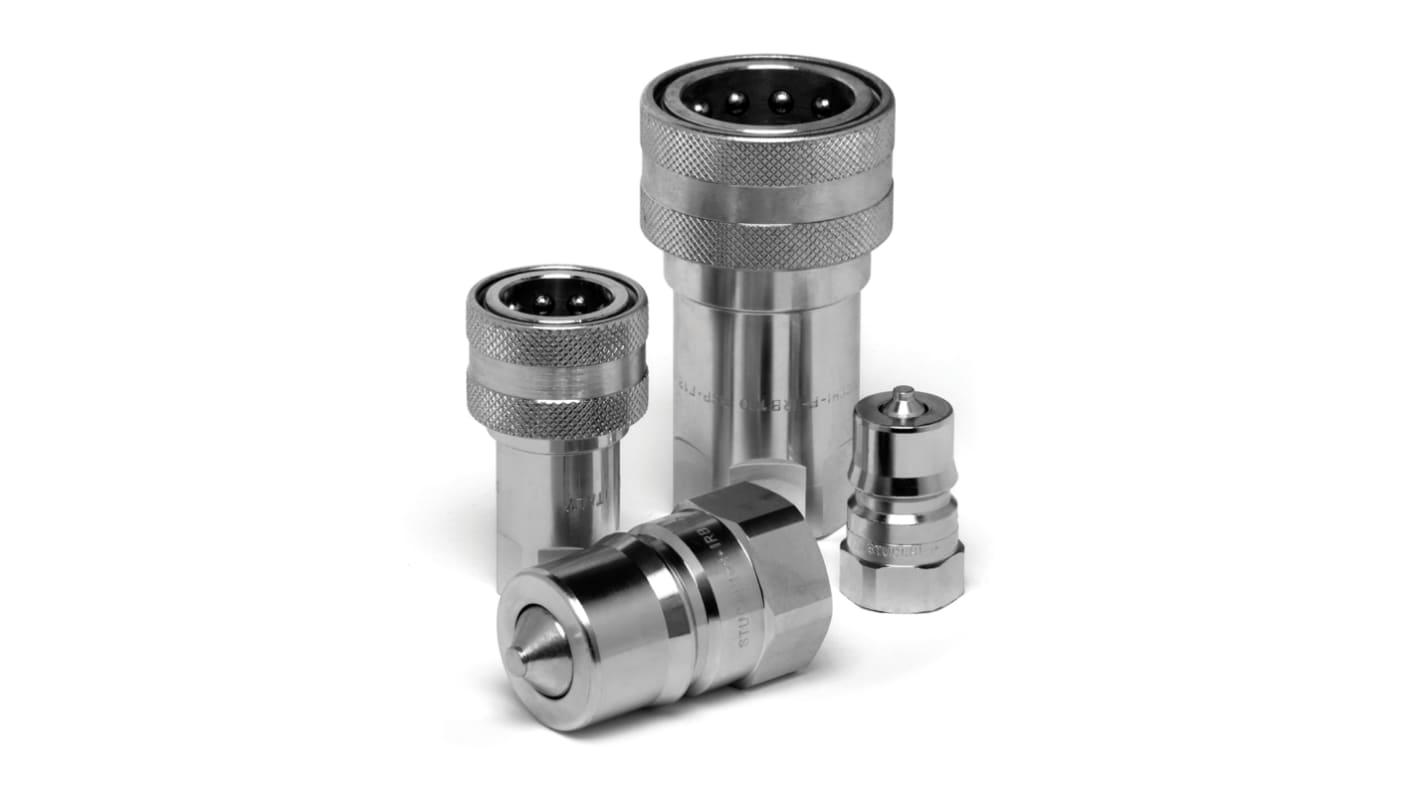

RS PRO Carbon Steel Female Hydraulic Quick Connect Coupling, BSP 3/4 Female

RS Stock No.:: 733-5609
Brand:: RS PRO

RS PRO Carbon Steel Female Hydraulic Quick Connect Coupling, BSP 3/4 Female

Available to back order for despatch 13/05/2024

Added

Price Each

£34.28

(exc. VAT)

£41.14

(inc. VAT)

Units	Per unit
1 - 4	£34.28
5 - 9	£33.08
10 +	£31.95

RS Stock No.:: 733-5609
Brand:: RS PRO

Technical Reference

RS PRO Datasheet

Legislation and Compliance

RoHS Status: Not Applicable

COO (Country of Origin):: IT

Product Details

ISO B - Steel Male Tip / Female Body Couplers

Resistance to high temperatures (-25 → +125 °C)
Suited to general industrial and agricultural applications
Nitrile seal material
Steel body construction
Complies with standard ISO 7241-1, 'B'

Standards

ISO 7241-1, 'B'

Warning

Do not connect under pressure.

Ball Locking

Couplings manufactured to ISO standards and fitted with NBR (Nitrile) seals, with secondary PTFE seals for backup purposes. Suitable for working environments within -25 to 125°C.

Specifications

Attribute	Value
Thread	BSP 3/4 Female
Coupling Gender	Female
Thread Size	3/4in
Material	Carbon Steel
Series	RS
Compatible With	ISO 7241-1-B
Type	Union
Locking Style	Ball Lock
Seal Material	Nitrile Rubber
Thread Standard	BSP
Thread Gender	Female
Maximum Operating Pressure	230bar
Maximum Operating Temperature	+100°C
Minimum Operating Temperature	-20°C
