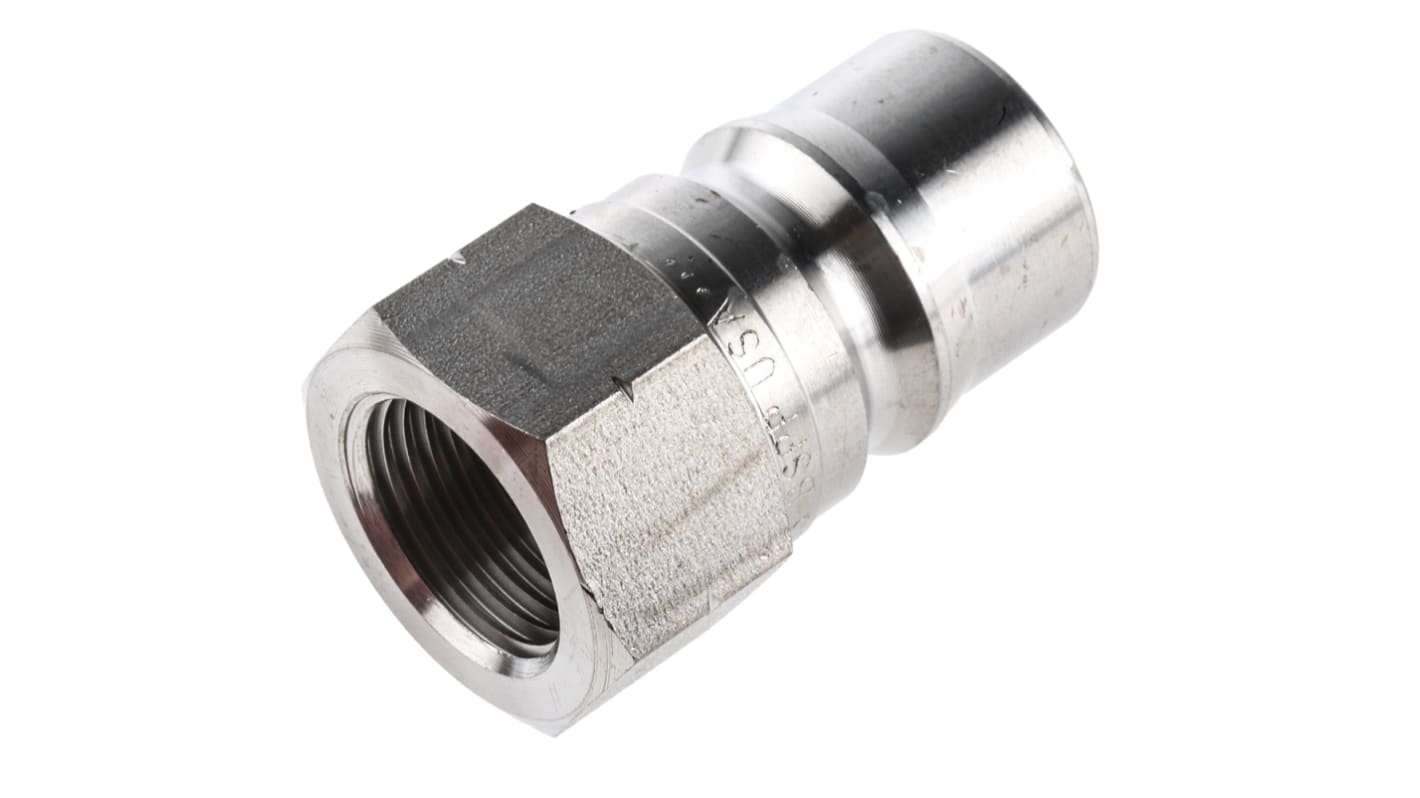

Parker Stainless Steel Male Hydraulic Quick Connect Coupling SH4-63-BSPP 1/2 in

  • RS Stock No. 263-0849
  • Mfr. Part No. SH4-63-BSPP
  • Brand Parker
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

AISI 303 Stainless Steel

Parker 60 series quick connect couplings for hydraulic applications. The 60 series is a double shut off coupling that is suitable for various hydraulic applications where hoses are frequently connected and disconnected. Fitted with double O-Rings and stainless steel locking balls for durability.

Features and Benefits

BSPP Thread sizes
Hardened nipples and sleeves
High flow capacity
High pressure seal design
Captive valve seal
Durable ball locking mechanism
Temperature range: -40 to +80°C

Applications

Industrial hydraulic lines
Food and chemical processing
Water and coolant lines
Mobile Equipment

Standards

ISO 7241-B

Parker 60 Series

Specifications
Attribute Value
Series 60 Series
Compatible With CEJN 320/410, ISO 7241-1-B, Rectus 25/27
Type Nipple
Coupling Gender Male
Locking Style Ball Lock
Thread G 1/2 Female
Material Stainless Steel
Seal Material Nitrile Rubber
Thread Size 1/2in
Thread Standard G
Thread Gender Female
Maximum Operating Pressure 35 MPa
Maximum Operating Temperature +110°C
Minimum Operating Temperature -40°C
21 In stock for FREE next working day delivery
Price Each
£ 58.15
(exc. VAT)
£ 69.78
(inc. VAT)
Units
Per unit
1 - 4
£58.15
5 - 9
£55.82
10 +
£53.49
