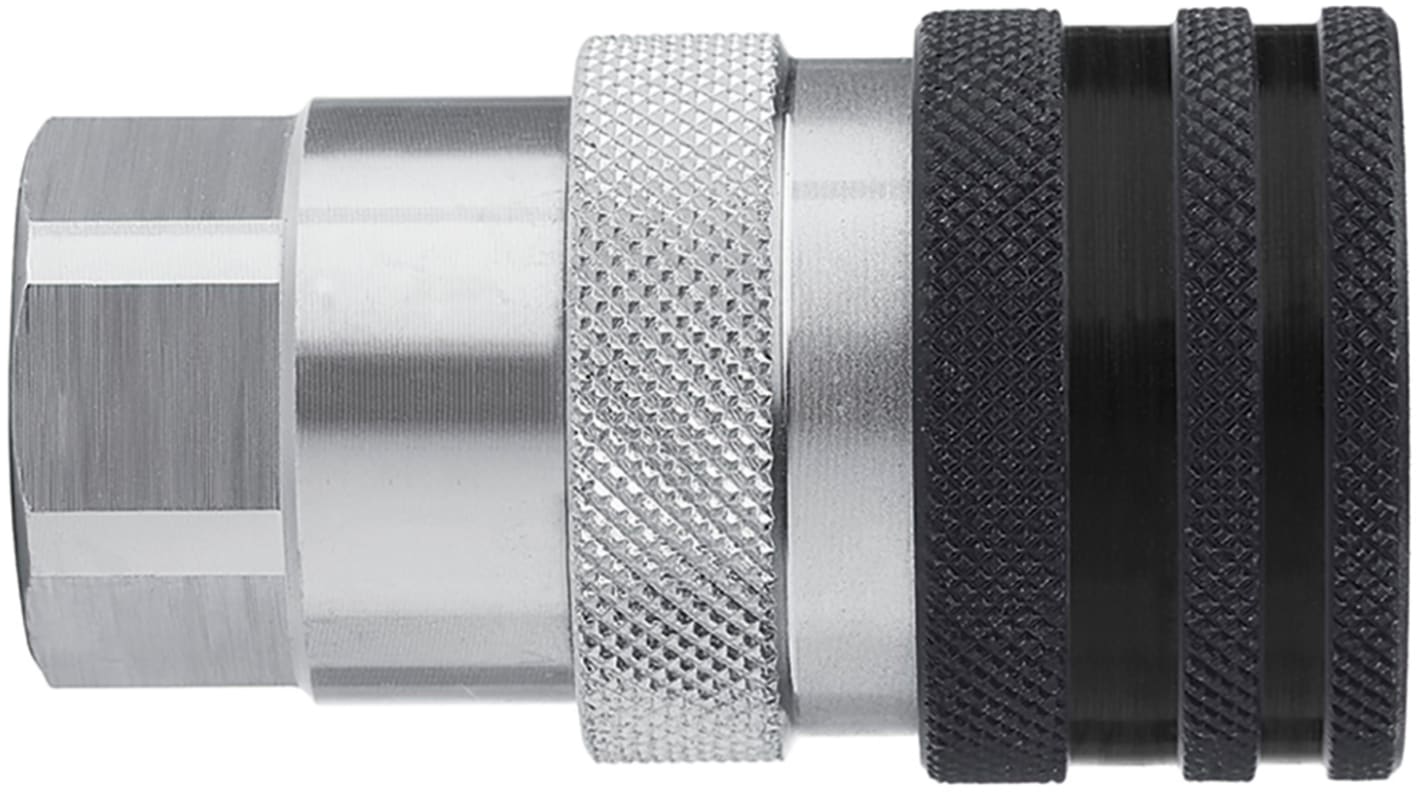

3/8" BSP FEMALE/PRESSURE ELIM CEJN 525 H

  • RS Stock No. 189-1731
  • Mfr. Part No. C105251234
  • Brand CEJN
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): SE
Product Details

Series 525 is a family of quick couplings for hydraulic systems. A manually operated locking ring provides extra security against involuntary disconnection. An extra option for Series 525 couplings and nipples is a pressure eliminator for evacuating residual pressure during connection. Both couplings and nipples are made of steel with Zinc-Nickel surface for maximum durability in tough applications and environments. The Series is also available in four other sizes: DN 6.3 (1/4"), DN 12.5 (1/2"), DN 20 (3/4") and DN 25 (1"). For a stainless steel version see Series 526. Available are also a version with viton seals and a free flow version (without valve package).

Manual locking ring for extra securityHigh durabilityOptional pressure eliminator

Specifications
Attribute Value
Series 525
Type Coupling
Coupling Gender Female
Material Steel
Seal Material Nitrile Rubber
Thread Size 3/8in
Thread Standard BSPP
Thread Gender Female
Maximum Operating Pressure 350 bar
Maximum Operating Temperature +205°C
Minimum Operating Temperature -20°C
2 In stock for FREE next working day delivery
Price Each
£ 43.16
(exc. VAT)
£ 51.79
(inc. VAT)
Units
Per unit
1 - 4
£43.16
5 - 9
£41.43
10 +
£40.57
