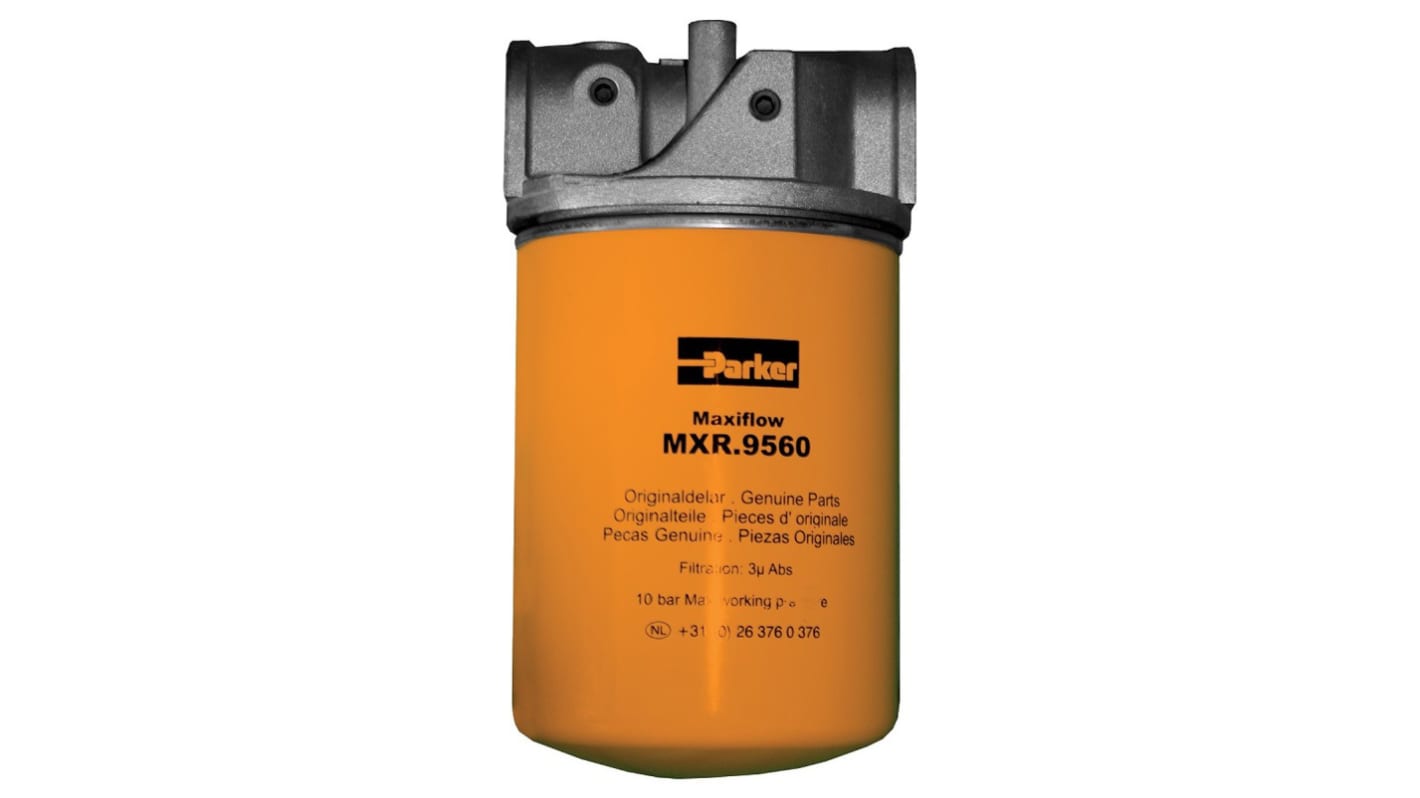

Parker Hydraulic Filter MXA2310CBG2GG201 Maxiflo, 180L/min 1-1/4 in

  • RS Stock No. 125-8432
  • Mfr. Part No. MXA2310CBG2GG201
  • Brand Parker
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IT
Product Details

Maxiflow Spin-on Filters

A professional range of Maxiflow series spin-on filters. This series of filters are designed to provide quality protection for hydraulic and lubrication systems. All models are highly reliable and excellent quality.

Maximum pressure 10bar
Maximum flow 360 I/min
High quality filter medium

Parker Hannifin Hydraulic Filtration

Specifications
Attribute Value
Manufacturer Series Maxiflo
Filtration Size 10µm
Maximum Flow Rate 180L/min
Connection Thread G 1-1/4
Maximum Operating Pressure 10 bar
Thread Standard G
Thread Size 1-1/4in
Maximum Operating Temperature +100°C
Minimum Operating Temperature -30°C
10 In stock - FREE next working day delivery available
Price Each
£ 107.09
(exc. VAT)
£ 128.51
(inc. VAT)
Units
Per unit
1 +
£107.09
