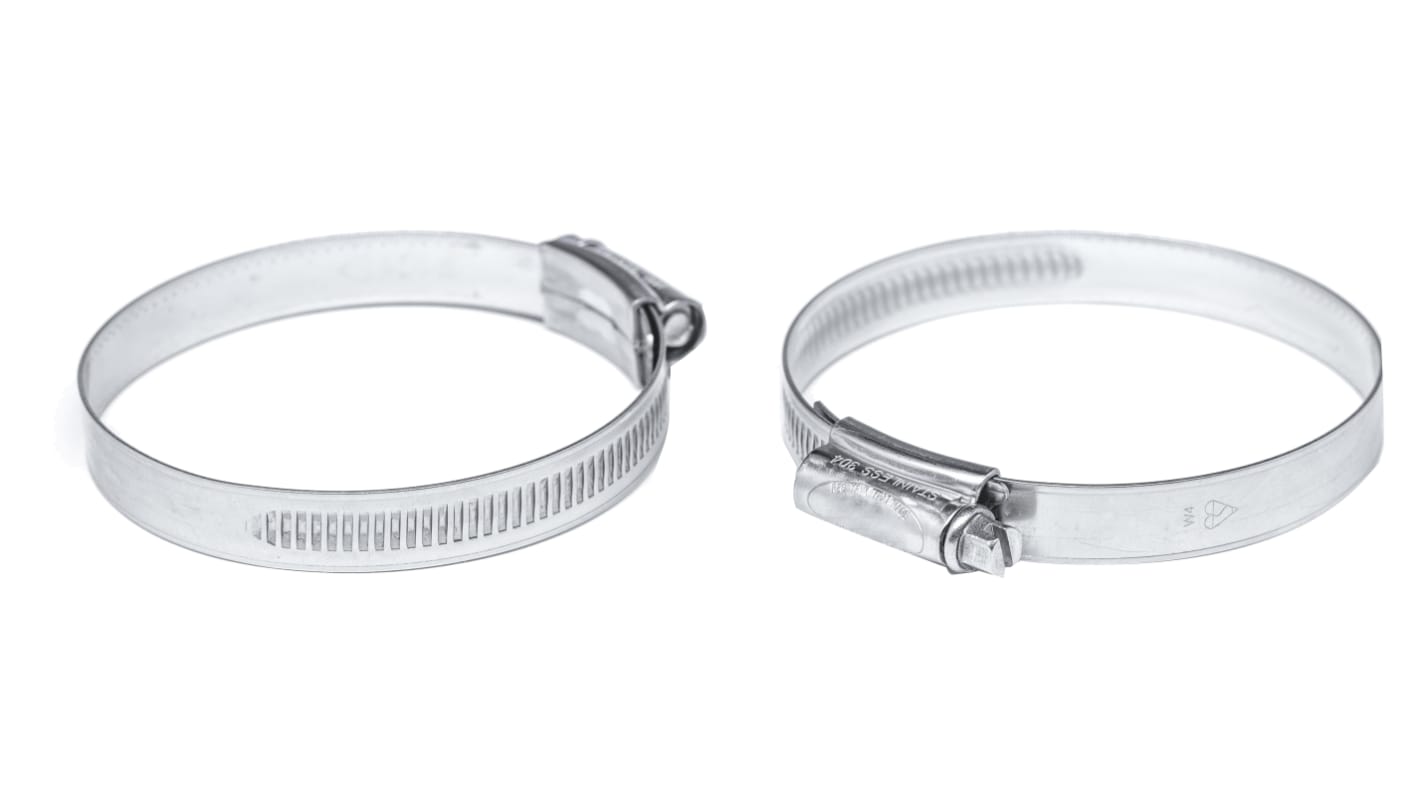

RS PRO Stainless Steel Hex Screw Worm Drive, 12mm Band Width, 55 → 70mm ID
- RS Stock No.:
- 145-0277
- Brand:
- RS PRO
41 In stock - FREE next working day delivery available
8 available from Europe for delivery within 1 working day(s).
Added
Price 1 Bag of 5
£15.21
(exc. VAT)
£18.25
(inc. VAT)
| Bag(s) | Per Bag | Per unit* |
| 1 - 4 | £15.21 | £3.042 |
| 5 - 9 | £14.44 | £2.888 |
| 10 - 29 | £13.69 | £2.738 |
| 30 + | £12.80 | £2.56 |
| *price indicative | ||
- RS Stock No.:
- 145-0277
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TH
Product Details
RS Pro worm drive hose clips are manufactured in 304 grade stainless steel. They are tested and “BSI Kitemark” certified according to British Standard 5315:1991. OBBSW4 is made entirely from AISI-304 stainless steel, austenitic grade 18/8 Stainless Steel (18% Chromium with 8% Nickel), which is comparable to W4 DIN3017 (German Standard).
The hose clip is optimized for hose protection by raising the band edges and precisely stamping the band to provide a smooth underside surface. It provides the ultimate exterior hose wall protection with a non-perforated band, which gives more protection to the soft hose surface, during the installation and usage.
The hose clip is optimized for hose protection by raising the band edges and precisely stamping the band to provide a smooth underside surface. It provides the ultimate exterior hose wall protection with a non-perforated band, which gives more protection to the soft hose surface, during the installation and usage.
316 Stainless Steel
Slotted Head Screw
Slotted Head Screw
Specifications
Attribute | Value |
|---|---|
| Inside Diameter | 55 → 70mm |
| Clip Type | Worm Drive |
| Material | Stainless Steel |
| Inside Diameter Minimum | 55mm |
| Inside Diameter Maximum | 70mm |
| Band Width | 12mm |
| Stainless Steel Type | A2 304 |
| Screw/Bolt Head | Hex Screw |
