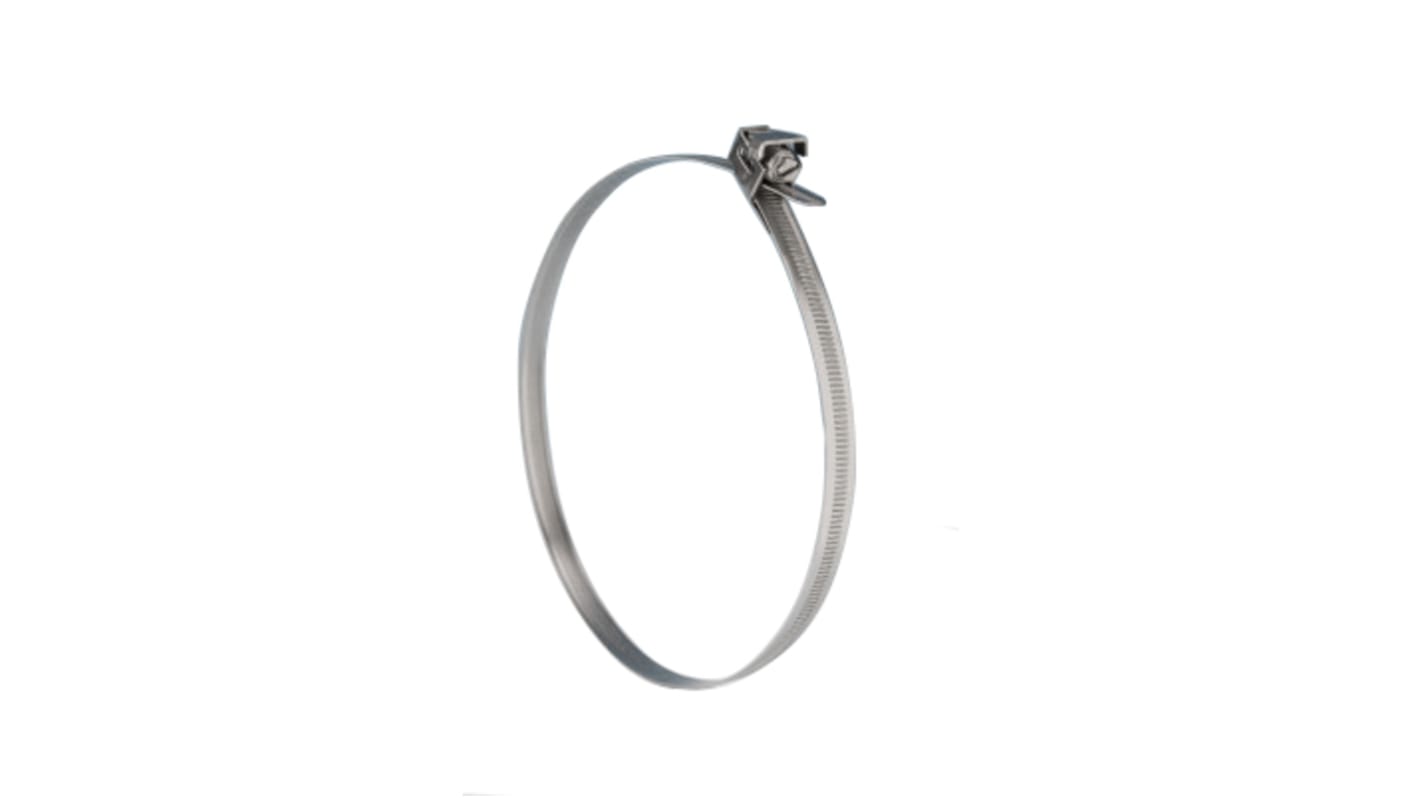

Jubilee Mild Steel Slotted Hex Quick Release Strap, 11mm Band Width, 50mm - 355mm Inside Diameter

  • RS Stock No. 144-0742
  • Mfr. Part No. CAS355MS
  • Brand Jubilee
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

Jubilee Captive Straps are used in a wide range of applications where a closed installation requires the clamp to be opened fully for positioning of the clamp. Examples include sign fixing, cable retention, repairs and heating, ventilation and air conditioning. Jubilee Captive Straps are available in mild and stainless steel.

7mm hex head or slotted design
Zinc protected mild steel or all 304 stainless steel
11mm or 7mm band width
Made in UK

Jubilee Quick Release Straps are used in a wide range of applications where a closed installation requires the clamp to be opened fully for positioning. Examples include sign fixing, cable retention, repairs and heating, ventilation and air conditioning. Jubilee Quick Release Straps are available in mild and stainless steel. Jubilee Quick Release Straps are manufactured with a quick release swivel housing design which locks into position once the clip is fastened. The strong housing design ensures a higher maximum tightening torque than other quick release designs and the screw fitting requires no specialist tools to install, making installation quicker and more cost effective than some more complex solutions. The design also benefits from being reusable. Jubilee Quick Release Straps may also be used in cable retaining applications where nylon cable ties are not suitable due to fire regulations. Jubilee Quick Release Straps have a very wide clamping range and excess band material can be removed at the point of installation. These clamps are flexible enough to conform to unusually shaped fittings and they are also suitable for very large diameter applications.

Specifications
Attribute Value
Inside Diameter 50 → 355mm
Clip Type Quick Release Strap
Material Mild Steel
Inside Diameter Minimum 50
Inside Diameter Maximum 355mm
Band Width 11mm
Screw/Bolt Head Slotted Hex
1 In stock for FREE next working day delivery
Price 1 Bag of 2
£ 6.85
(exc. VAT)
£ 8.22
(inc. VAT)
Bag(s)
Per Bag
Per unit*
1 - 4
£6.85
£3.425
5 - 9
£6.51
£3.255
10 - 29
£6.16
£3.08
30 +
£5.76
£2.88
*price indicative
