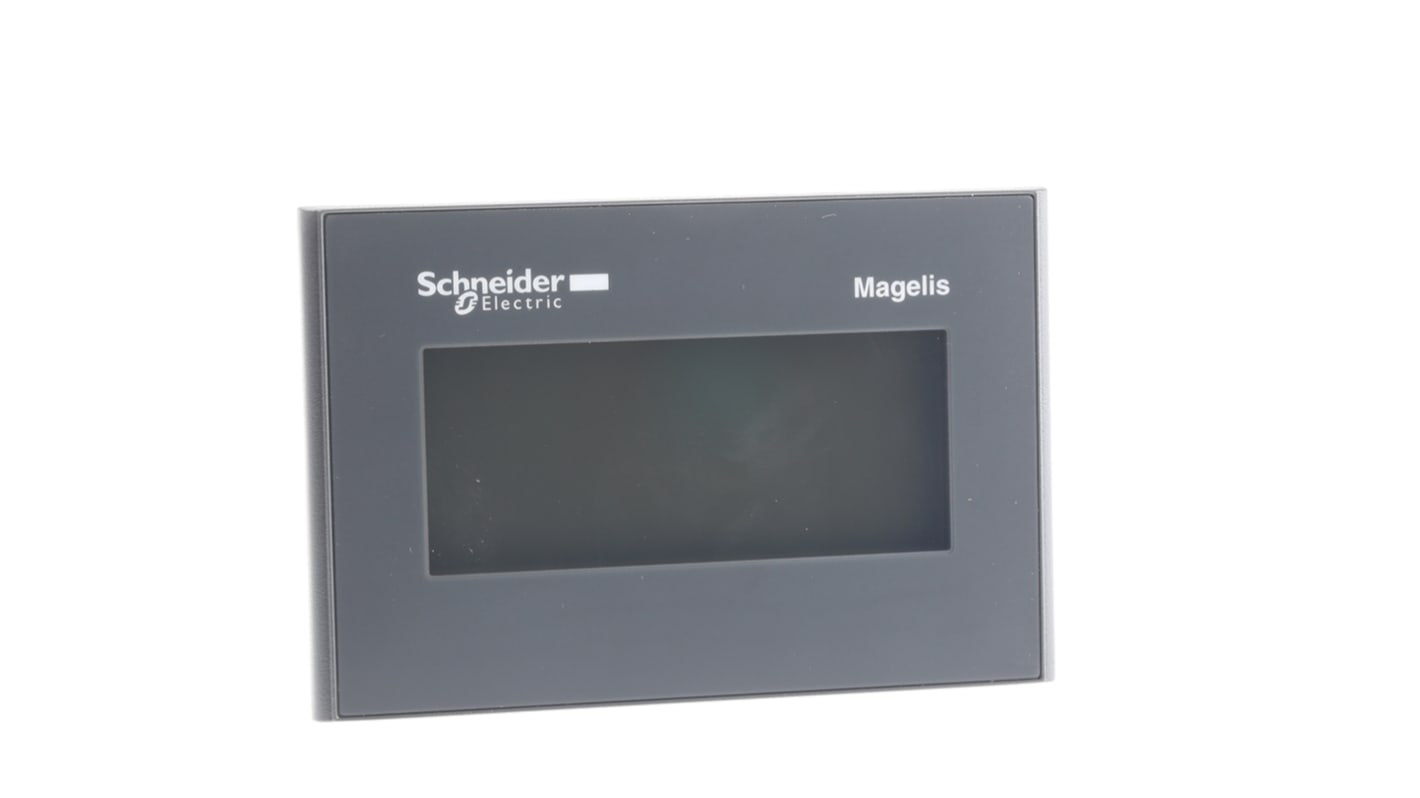

Schneider Electric STO Series Touch Screen HMI - 3.4 in, LCD Display, 200 x 80pixels

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Magelis STO 3.4" Touchscreen Graphic Terminals

Schneider Electric’s new range of touch screen small panels offers greater ease of use and efficiency while retaining the inherent features of the HMI range.

3.4"" Touch screen graphic terminal, configured by Vijeo Designer
Resolution: 200 x 80 pixels
2 versions 3 colours (green, orange, red) or (white, pink, red)
Fast mounting system tool free installation
Terminals are mounted easily onto your enclosure using spring clips.
Unique software, contribute to cut down the global cost of your installation
No batteries required, backlit by LEDs
Removable power connector
USB memory stick for application downloads
Standard RJ45 serial port with Modbus protocol and other commercially-available third-party protocols
2 USB ports: 1 mini B port for downloading and 1 standard A port for USB memory stick and USB peripherals

Schneider Electric Magelis STO-STU

The new Magelis STO and STU boost the Magelis Small Panels range: more flexibility, more communication, easy and fast revolutionary mounting system. Powered by Vijeo Designer, they bring a cost-effective solution, especially to the machine builders.

Attribute Value
Manufacturer Series STO
Display Type LCD
Display Size 3.4 in
Display Resolution 200 x 80pixels
Display Colour Monochrome
Number of Ports 3
Port Type COM1, USB 2.0
Processor Type RISC
Processor Speed 333MHz
Onboard Memory 16 (Application) MB, 128 (Back Up) kB
Backlighting Yes
Supply Voltage 24 V dc
Length 116.5mm
Width 77.5mm
IP Rating IP20, IP65
Maximum Operating Temperature +50°C
Minimum Operating Temperature 0°C
Dimensions 116.5 x 77.5 x 36.5 mm
Depth 36.5mm
Available to back order for despatch when stock is available
Price Each
£ 262.00
(exc. VAT)
£ 314.40
(inc. VAT)
Per unit
1 +
