PSEN PSENhinge Safety Hinge Switch, 2NC, M12

  • RS Stock No. 744-8692
  • Mfr. Part No. 570271
  • Brand Pilz
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

PSEN Hinge Switch

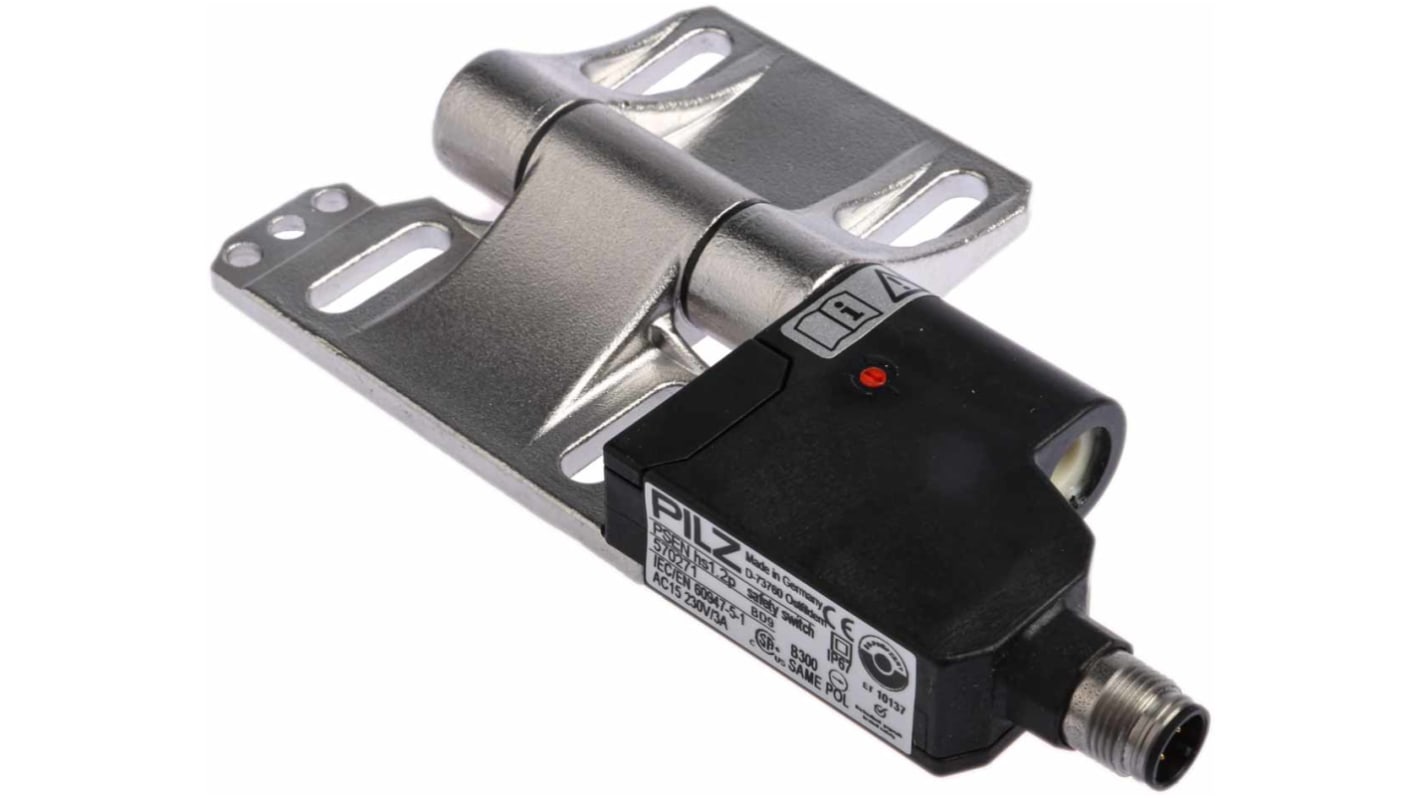

The PSENhinge is designed to offer a high level of flexibility in installation, connection and adjustment and when used in conjunction with Pilz control systems, can be used for applications with high safety requirements. The hinge switch is manipulation proof as it's integrated directly into the safeguard. The PSENhinge can be used on rotatable and hinged gates as well as flaps, and can be attached to the right or left, for optimum cable feed at a switching point between 0° and 270°. Also, the integrated precision adjustment system of the hinge switch means the user can employ a change kit to redefine the switching point even after setting, if upgrading the plant.

Safe, complete solution for rotatable/hinged guards, comprising hinge and safety switch
IP67 protection allows use in areas with strict hygiene regulations or heavy soiling
Manipulation proof and space saving as it is integrated directly into the safeguard
Switching point is free to set from 0° to 270° and is re-adjustable
Slot fastening for mounting on profiles
Simple readjustment by means of integrated precision adjustment system
Systems can be attached to right and left
Low maintenance
Plastic bodied design

Standards

VDE 0660 T100, DIN EN 60947-1, IEC 60947-1, VDE 0660 T200, DIN EN 60947-5-1, IEC 60947-5-1

Approvals

BG / BG / BG, CCSAUS B300

Pilz Safety Hinge Switch

The Pilz 2NC left safety hinge switch is designed to offer a high level of flexibility in installation, connection and adjustment. When used in conjunction with Pilz control systems, it can be used for applications with high safety requirements. This hinge switch is a manipulation proof as it is integrated directly into the safeguard. Also, the integrated precision adjustment system of this hinge switch means the user can employ a change kit to redefine the switching point even after setting if upgrading the plant.

Features and Benefits


Safe and complete solution for rotatable/hinged guards, comprising hinge and safety switch
• Manipulation proof and space saving as it is integrated directly into the safeguard
• Switching point is free to set from 0° to 270° and is re-adjustable
• Slot fastening for mounting on profiles
• Simple readjustment by means of an integrated precision adjustment system
• Systems can be attached to right and left
• Low maintenance
• Plastic bodied design
• Connection type M12 connector, 4 pin

Applications


Packing machines
• Printing and paper machines
• Tool machines
• Metal industry
• Electrical industry
• Special machine construction
• Measurement technology, process engineering, testing and laboratory equipment
• Plastics processing machinery
• Enclosures/profile systems
• Food processing machinery

Certifications


VDE 0660 T100
• DIN EN 60947-1
• IEC 60947-1
• VDE 0660 T200
• DIN EN 60947-5-1
• IEC 60947-5-1
• BG certified
• CCSAUS B300 certified
• IP67 rated

Safety Limit Switch

Specifications
Attribute Value
Range PSEN
Series PSENhinge
Lock Style Hinge
Normal State Configuration 2NC
Size of Cable Entries M12
Conduit Entry M12
Minimum Operating Temperature -25°C
Maximum Operating Temperature +70°C
7 in stock for FREE next working day delivery
12 available from Europe for delivery within 1 working day(s)
Price Each
£ 132.35
(exc. VAT)
£ 158.82
(inc. VAT)
Units
Per unit
1 +
£132.35
