- RS Stock No.:
- 492-5616
- Mfr. Part No.:
- 09330102701+19300100272
- Brand:
- HARTING
Available to back order for despatch 09/05/2024
Added
Price Each
£47.98
(exc. VAT)
£57.58
(inc. VAT)
Units | Per unit |
1 - 9 | £47.98 |
10 - 24 | £46.59 |
25 + | £45.25 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 492-5616
- Mfr. Part No.:
- 09330102701+19300100272
- Brand:
- HARTING
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
Product Details

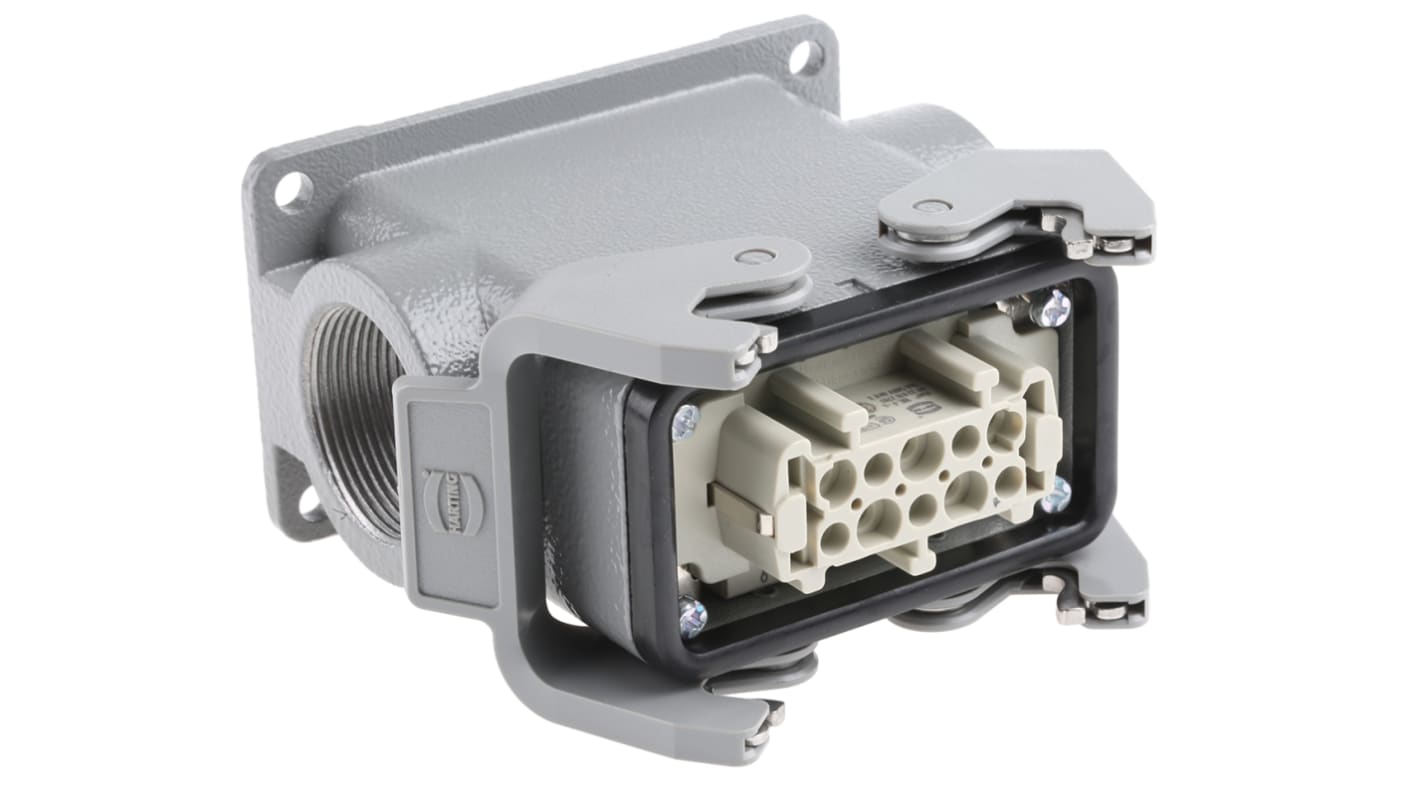

Surface Mounting Housing Socket + Female Insert
From Harting, this combination of components is part of the Han E range of Connector Assembly Packs.
Note
Male and female inserts may be fitted to a hood or housing if the installation requires such a reverse configuration.
Approvals
UL, CSA, SEV
Han E® Connector Assembly Packs
Two-part packs that provide towards the assembly of Harting Han E® metal-bodied cable plugs, cable coupling hoods, bulkhead/panel mounting housings, and surface mounting housing sockets. Screw terminal connection. Each pack contains a hood or housing, and male or female insert. All the individual components are available separately from within the relevant Ranges of inserts, hoods, and housings. All are rated at 450 – 500V, and 16A, suitable cable glands are available separately
Specifications
Attribute | Value |
---|---|
Number of Contacts | 10 |
Current Rating | 16A |
Gender | Female |
Series | Han E |
Type | Connector Set |
Voltage Rating | 500 V |
Thread Size | M32 |
Pole Format | 10 + PE |
Manufacturer Size Code | 10 B |
