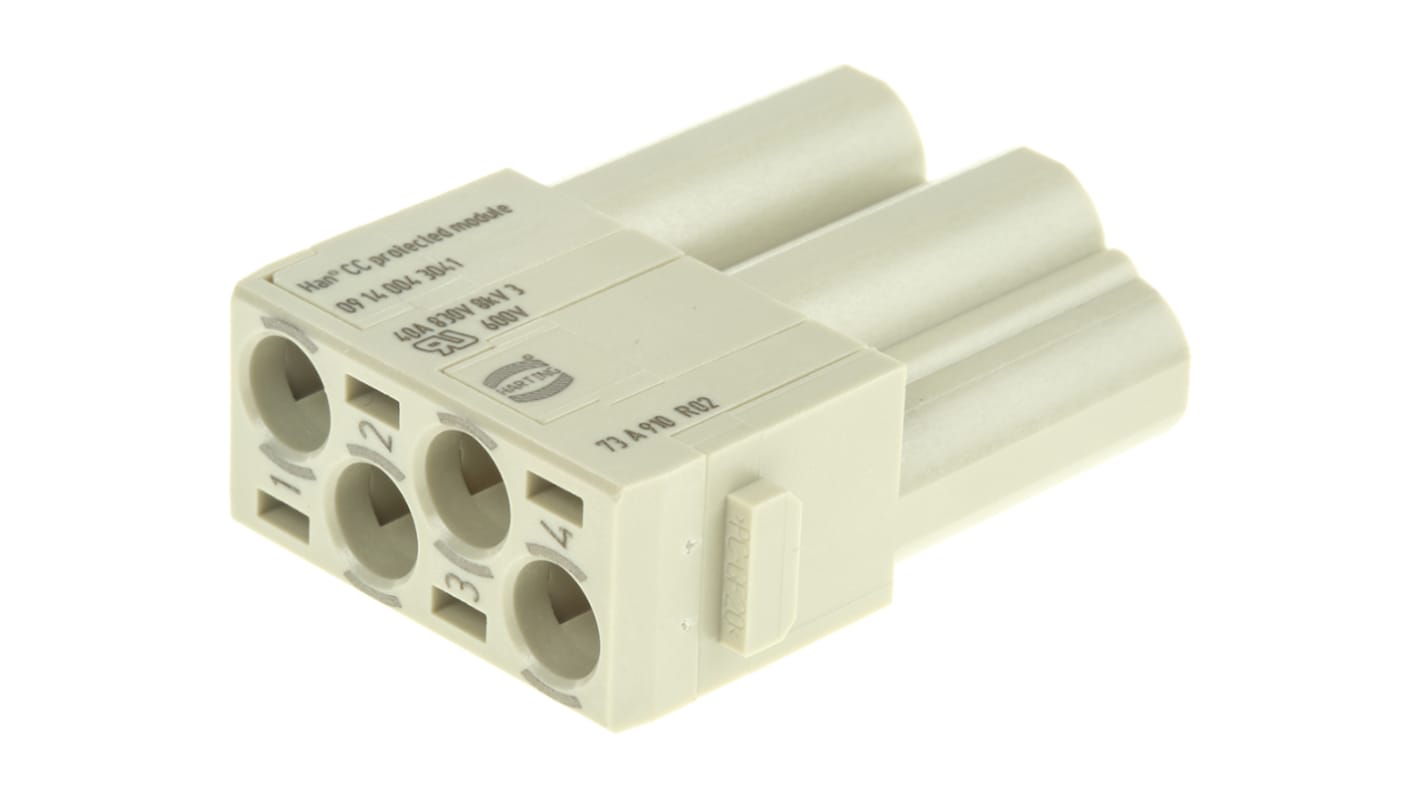

HARTING Han-Modular Heavy Duty Power Connector Module, 4 contacts, 40A, Male

  • RS Stock No. 173-7509
  • Mfr. Part No. 09140043041
  • Brand HARTING
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Han CC Protected Module

Suitable for Han C crimp contacts
Designed for a high working voltage up to 830 V
Finger safe male and female contacts
High contact density

Harting Han® Modular

The Han-Modular series is a system consisting of insert modules and frames into which the insert modules fit. These in turn may be fitted to standard Han® housings. The system allows a variety of insert configurations within the one connector assembly. The Han-Modular system is designed to meet specific requirements of individual customers and offers flexibility when considering connections for signal, power & pneumatic lines when a solution is required with one connector Apart from the quality of the crimp connector, the right choice of the assembly tool is the basic element of a reliable connection. HARTING offers appropriate crimping tools for different levels of automation for all connectors.

Specifications
Attribute Value
For Use With Heavy Duty Power Connectors
Number of Contacts 4
Type Connector Module
Current Rating 40A
Series Han-Modular
Gender Male
Range Han CC Protected
Voltage Rating 830 V
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Price Each (In a Pack of 2)
£ 5.02
(exc. VAT)
£ 6.02
(inc. VAT)
Units
Per unit
Per Pack*
2 - 8
£5.02
£10.04
10 - 22
£4.815
£9.63
24 - 48
£4.53
£9.06
50 +
£4.165
£8.33
*price indicative
Not available for guaranteed pre 9am/10am delivery
