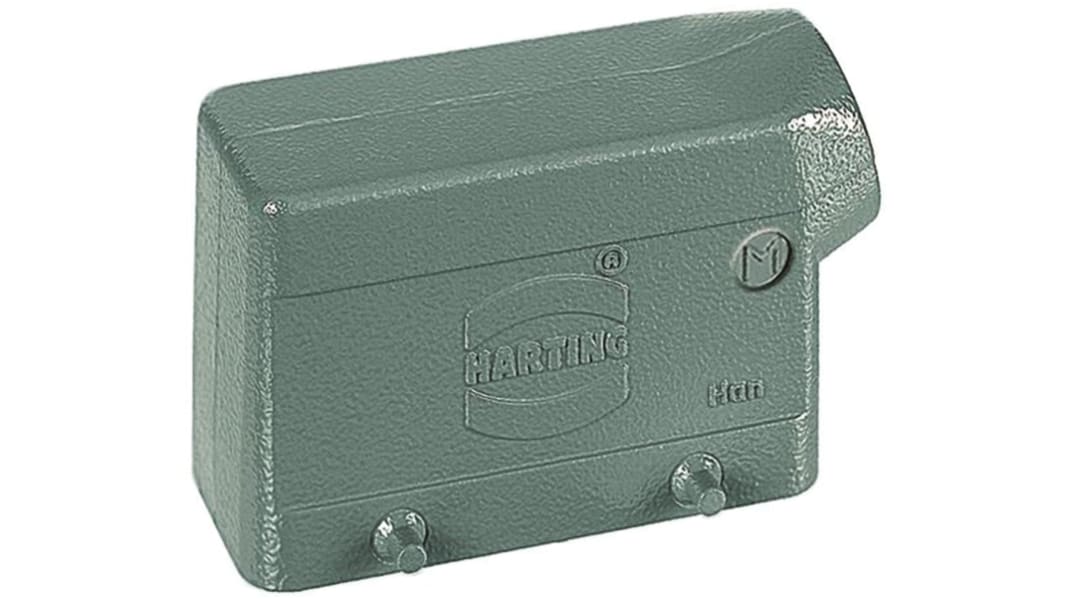

HARTING Han Hv E Series Heavy Duty Power Connector Hood

  • RS Stock No. 842-4356
  • Mfr. Part No. 19340060521
  • Brand HARTING
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Han HV E/ES Hoods and Housings

A comprehensive offering of die cast aluminium hoods and housings from the Han HV E/ES range, to be used in conjunction with associated module inserts and also those from the Han B range. Han Hv E and Han Hv ES series connectors are designed for industrial applications up to 830 V.

Features and Benefits:
• Rated current 16, voltage 830V
• Over 500 mating cycles
• Temperature range -40 to +125° C

Approvals

CSA, RU

Harting Han® Modular

The Han-Modular series is a system consisting of insert modules and frames into which the insert modules fit. These in turn may be fitted to standard Han® housings. The system allows a variety of insert configurations within the one connector assembly. The Han-Modular system is designed to meet specific requirements of individual customers and offers flexibility when considering connections for signal, power & pneumatic lines when a solution is required with one connector Apart from the quality of the crimp connector, the right choice of the assembly tool is the basic element of a reliable connection. HARTING offers appropriate crimping tools for different levels of automation for all connectors.

Specifications
Attribute Value
Type Connector Hood
Series Han Hv E Series
Thread Size M25
IP Rating IP65
Series Number 1934
Available to back order for despatch 17/12/2020
Price Each
£ 23.80
(exc. VAT)
£ 28.56
(inc. VAT)
Units
Per unit
1 - 9
£23.80
10 - 24
£22.85
25 - 49
£21.90
50 +
£20.93
