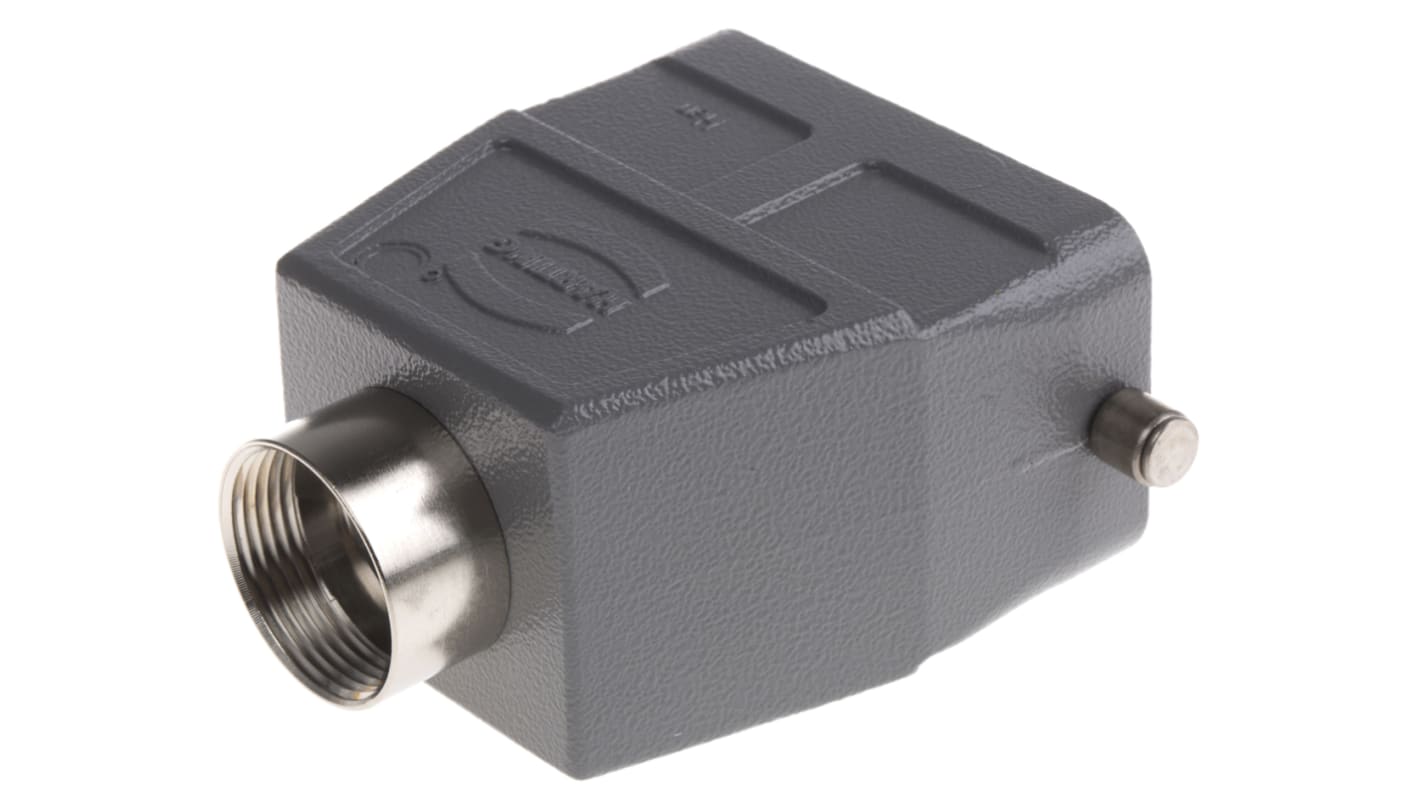

HARTING Han B Series, 10B Side Entry Heavy Duty Power Connector Hood

  • RS Stock No. 363-8096
  • Mfr. Part No. 09300100442
  • Brand HARTING
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Hoods and Housings

Metal bodied, with options of one or two locking levers on the hoods, and bulkhead or surface mounting housings

Note

Only the Housing stock no. 114-7964 can be used with the Han E AV series.

Approvals

UL, CSA, SEV

Range 6 - (Harting Size 10B)

These hoods and housings are compatible with appropriate inserts from the Han DD®, EE, E, ES, EAV, Com and modular series. The 'compatibility' table associated with item types 1 and 2 details that relationship by indicating the specific Harting insert series, together with a stock number typical of each insert range.

Warning

  • These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.
Specifications
Attribute Value
Type Connector Hood
Series Han B Series
Manufacturer Size Code 10B
IP Rating IP65
Size 10B
Body Orientation Side Entry
30 In stock - FREE next working day delivery available
Price Each
£ 24.11
(exc. VAT)
£ 28.93
(inc. VAT)
Units
Per unit
1 - 9
£24.11
10 - 24
£23.15
25 +
£22.18
