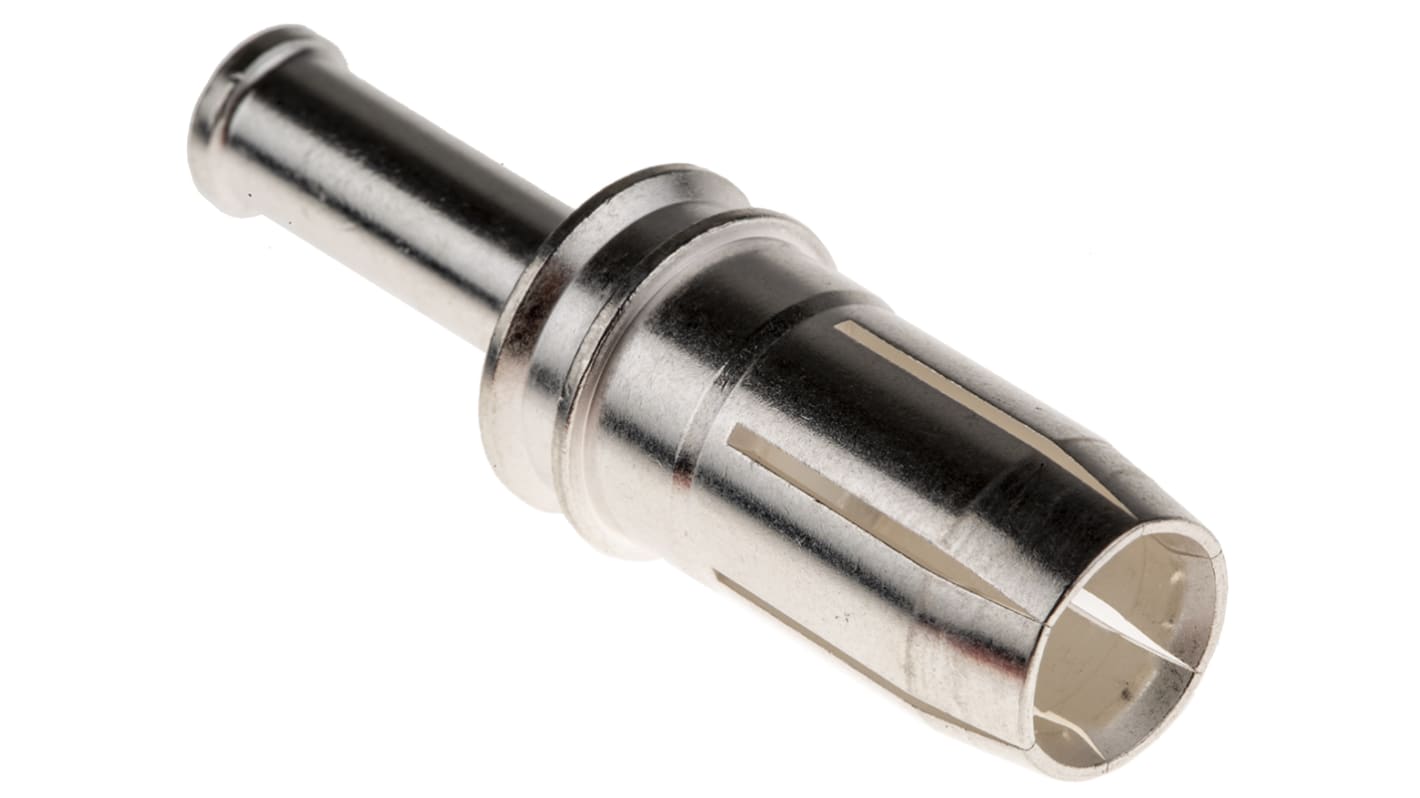

MH Female Contact to10mm², For Use With Connectors, EPIC

  • RS Stock No. 180-9562
  • Mfr. Part No. 44423246
  • Brand Lapp
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Epic MH Contact

From Lapp, these contacts are for use with Epic MH Bus connector system kits. The connectors are a shielded module for data and signal transmission, and are mateable with market standard connectors. These crimp connecting contact allow permanent vibration proof contact in connections.

Features and Benefits

• Flame Retardant
• Vibration proof
• Crimp connection

Applications

Due to their versatility and durability, the Epic MH Bus connector system can be used in many applications, such as;

• Mechanical engineering
• Robotics industry
• Plant engineering
• Renewable energy
• Railway applications / vehicle construction

Alternatives

Epic MH BUS contacts are available in different sizes to suit appropriate MH Connector system modules and inserts.

180-9561 is a Male 10mm EPIC MH Contact D=8.0mm
180-9562 is a Female 10mm EPIC MH Contact D=8.0mm
180-9563 is a Male 16mm EPIC MH Contact D=8.0mm
180-9564 is a Female 16mm EPIC MH Contact D=8.0mm
180-9565 is a Male 25mm EPIC MH Contact D=8.0mm
180-9566 is a Female 25mm EPIC MH Contact D=8.0mm
180-9567 is a Male 35mm EPIC MH Contact D=8.0mm
180-9568 is a Female 35mm EPIC MH Contact D=8.0mm
180-9569 is a Male 1.5mm EPIC MH Contact D=4.0mm
180-9570 is a Female 1.5mm EPIC MH Contact D=4.0mm
180-9571 is a Male 2.5mm EPIC MH Contact D=4.0mm
180-9572 is a Female 2.5mm EPIC MH Contact D=4.0mm
180-9573 is a Male 4mm EPIC MH Contact D=4.0mm
180-9574 is a Female 4mm EPIC MH Contact D=4.0mm
180-9575 is a Male 6mm EPIC MH Contact D=4.0mm
180-9576 is a Female 6mm EPIC MH Contact D=4.0mm
180-9577 is a Male 10mm EPIC MH Contact D=4.0mm
180-9578 is a Female 10mm EPIC MH Contact D=4.0mm

Specifications
Attribute Value
Series MH
Accessory Type Contact
For Use With Connectors
Range EPIC
Maximum Wire Size mm² 10mm²
Size 8 mm
Gender Female
10 In stock - FREE next working day delivery available
Price Each (In a Pack of 10)
Was £12.88
£ 11.588
(exc. VAT)
£ 13.906
(inc. VAT)
Units
Per unit
Per Pack*
10 +
£11.588
£115.88
*price indicative
