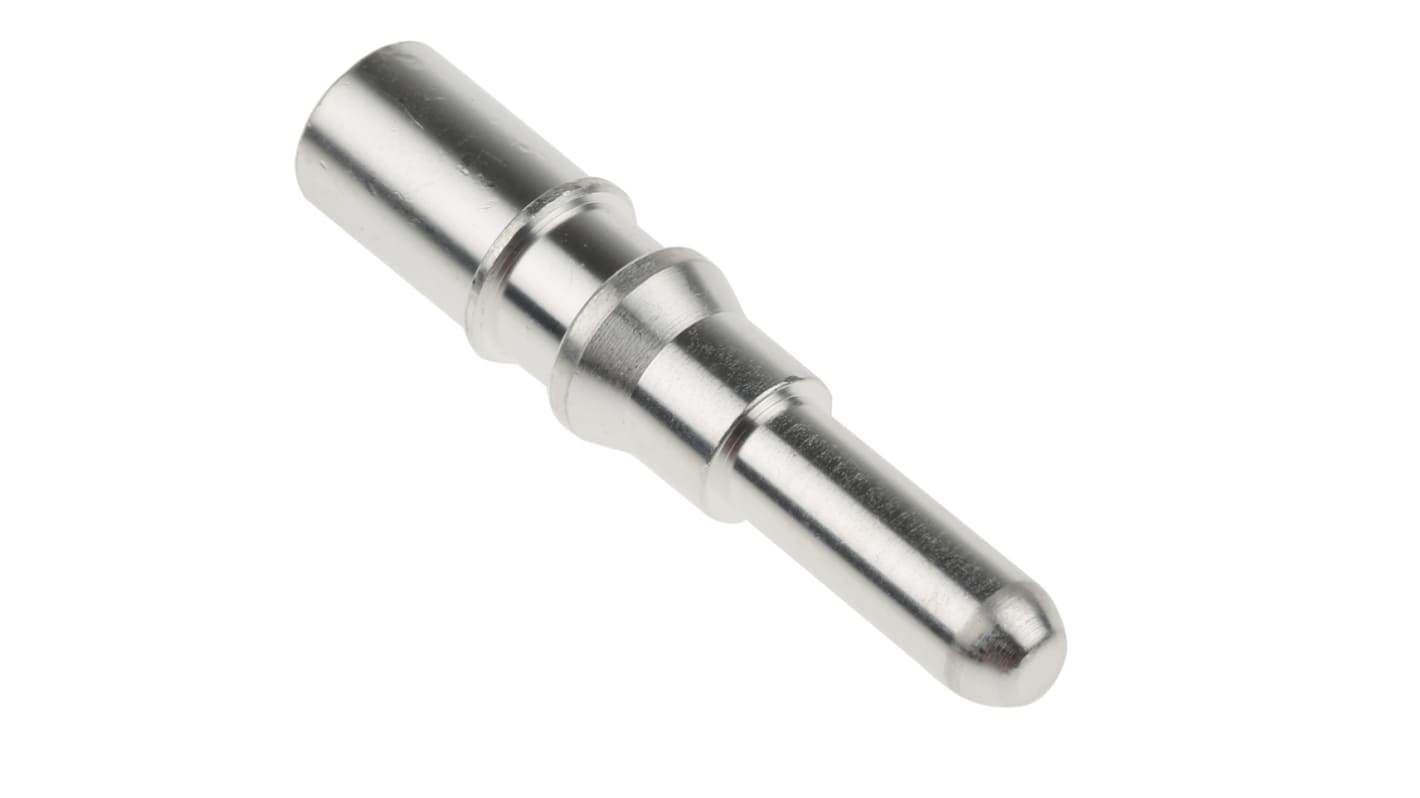

Male 75A Crimp Contact Maximum Wire Size 16mm² for use with CT-E6-2

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CH
Product Details

Multi Contact Connector

The Multi-Contact is CT-E6-2 series 6mm, male CombiTac socket connector. It has a current rating of 75A. This connector is silver plated. PE is for protective earth purpose only.

Features and Benefits

• Maximum wire size is 16mm²
• Sockets fitted with MULTILAM
• Uses crimp and screw termination for Cu conductor

Specifications
Attribute Value
Accessory Type Crimp Contact
For Use With CT-E6-2
Current Rating 75A
Maximum Wire Size mm² 16mm²
Gender Male
Termination Method Crimp
8 In stock - FREE next working day delivery available
Price Each
£ 13.38
(exc. VAT)
£ 16.06
(inc. VAT)
Units
Per unit
1 - 9
£13.38
10 - 49
£12.44
50 - 99
£11.63
100 - 199
£10.93
200 +
£10.30
