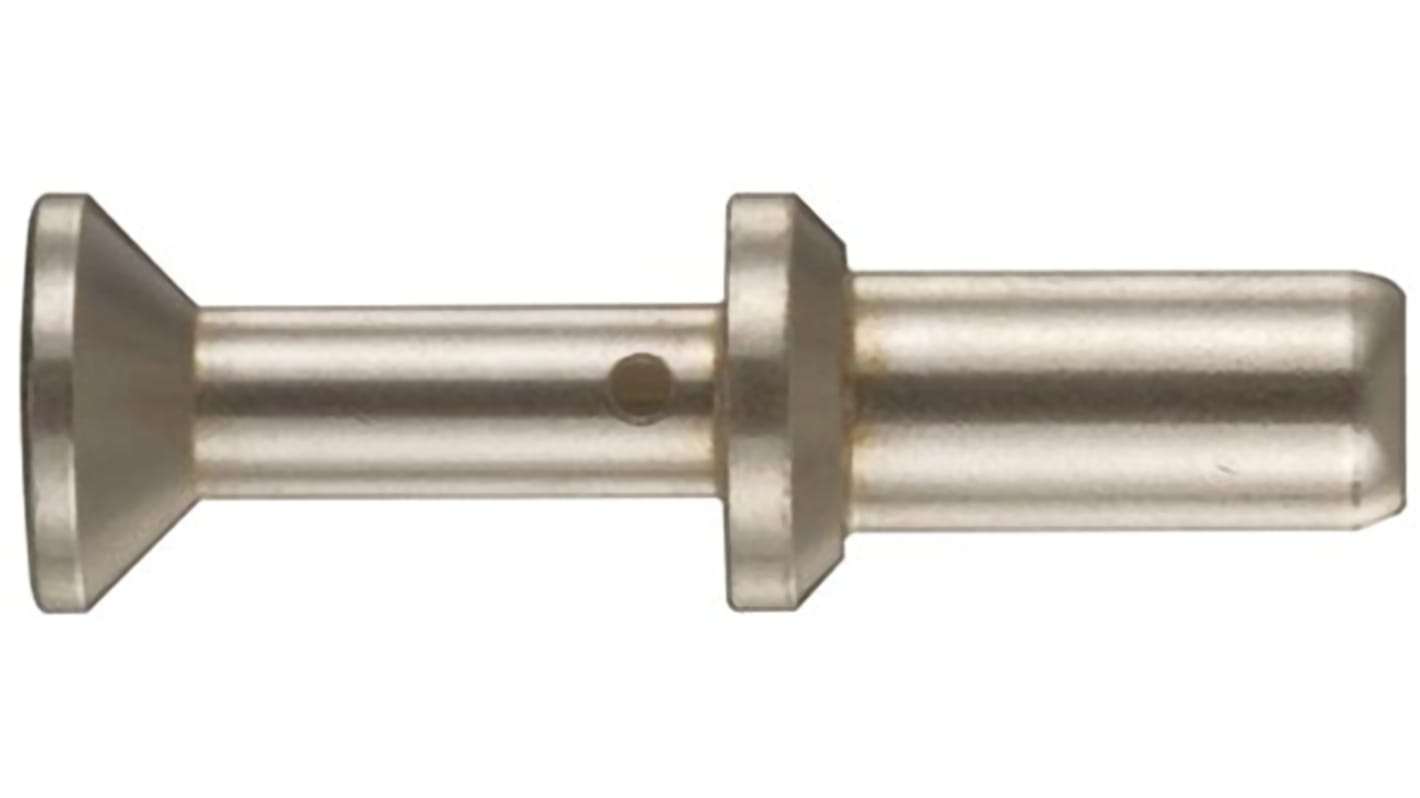

HAN TC Male 100A Crimp Contact Minimum Wire Size 25mm² Maximum Wire Size 25mm² for use with Crimp module

  • RS Stock No. 173-7631
  • Mfr. Part No. 09110006125
  • Brand HARTING
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Han TC Crimp Contacts

A comprehensive range of TC contacts offered in a large range of power capacities, suitable for high power applications.

Harting Han® Modular

The Han-Modular series is a system consisting of insert modules and frames into which the insert modules fit. These in turn may be fitted to standard Han® housings. The system allows a variety of insert configurations within the one connector assembly. The Han-Modular system is designed to meet specific requirements of individual customers and offers flexibility when considering connections for signal, power & pneumatic lines when a solution is required with one connector Apart from the quality of the crimp connector, the right choice of the assembly tool is the basic element of a reliable connection. HARTING offers appropriate crimping tools for different levels of automation for all connectors.

Specifications
Attribute Value
Series HAN TC
Accessory Type Crimp Contact
For Use With Crimp module
Current Rating 100A
Minimum Wire Size mm² 25mm²
Maximum Wire Size mm² 25mm²
Termination Method Crimp
Gender Male
50 In stock - FREE next working day delivery available
Price Each (In a Pack of 10)
£ 8.593
(exc. VAT)
£ 10.312
(inc. VAT)
Units
Per unit
Per Pack*
10 - 10
£8.593
£85.93
20 - 40
£8.164
£81.64
50 +
£7.592
£75.92
*price indicative
