Heatsink, TBH25 Ohmite Resistor Series, TCH35 Ohmite Resistor Series, TEH100 Ohmite Resistor Series, TEH70 Ohmite

  • RS Stock No. 893-4939
  • Mfr. Part No. RA-T2X-51E
  • Brand Ohmite
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

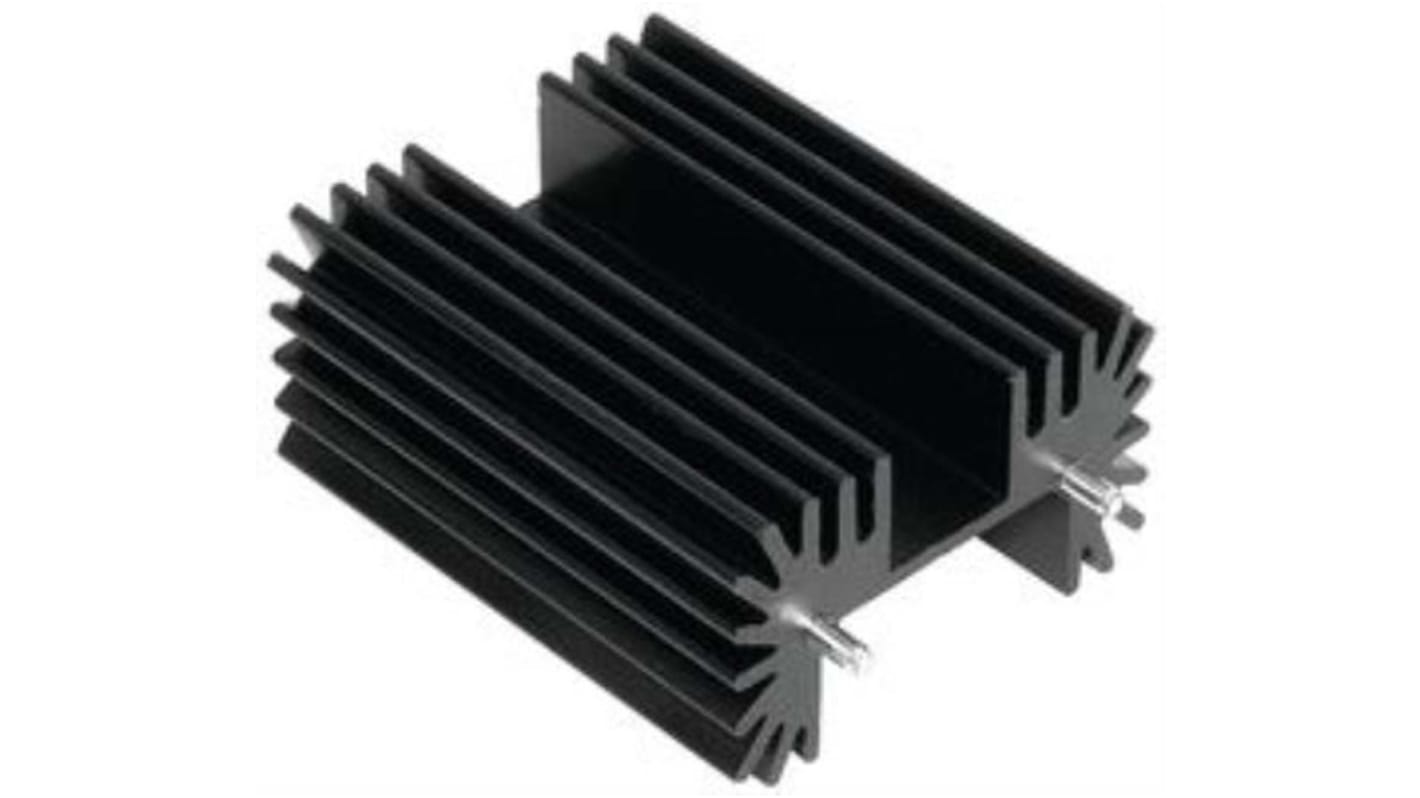

Ohmite F/R Series Vertical Mount Heatsinks

Ohmite F/R Series heatsink provides a large surface area with spring clipping mechanism to attach to a TO-220, TO-247, or TO-264 package. The self-aligning features of the clip assure secure attachment and enhanced thermal performance. Because no screws are required for device mounting, additional fins can be added to the rear side of the heatsink for increased total surface area in a more compact space.

Specifications
Attribute Value
For Use With TBH25 Ohmite Resistor Series, TCH35 Ohmite Resistor Series, TEH100 Ohmite Resistor Series, TEH70 Ohmite Resistor Series, TO-218, TO-220, TO-247
Length 42mm
Width 25mm
Height 50.8mm
Dimensions 42 x 25 x 50.8mm
Thermal Resistance 3.5°C/W
Mounting Vertical
Colour Black
Series R
Material Aluminium
Surface Area 17605mm²
Special Features With Solderable Pin
Finish Black Anodized
Available to back order for despatch 10/09/2019
Price Each (In a Pack of 10)
Was £2.28
£ 1.914
(exc. VAT)
£ 2.297
(inc. VAT)
Units
Per unit
Per Pack*
10 +
£1.914
£19.14
*price indicative
