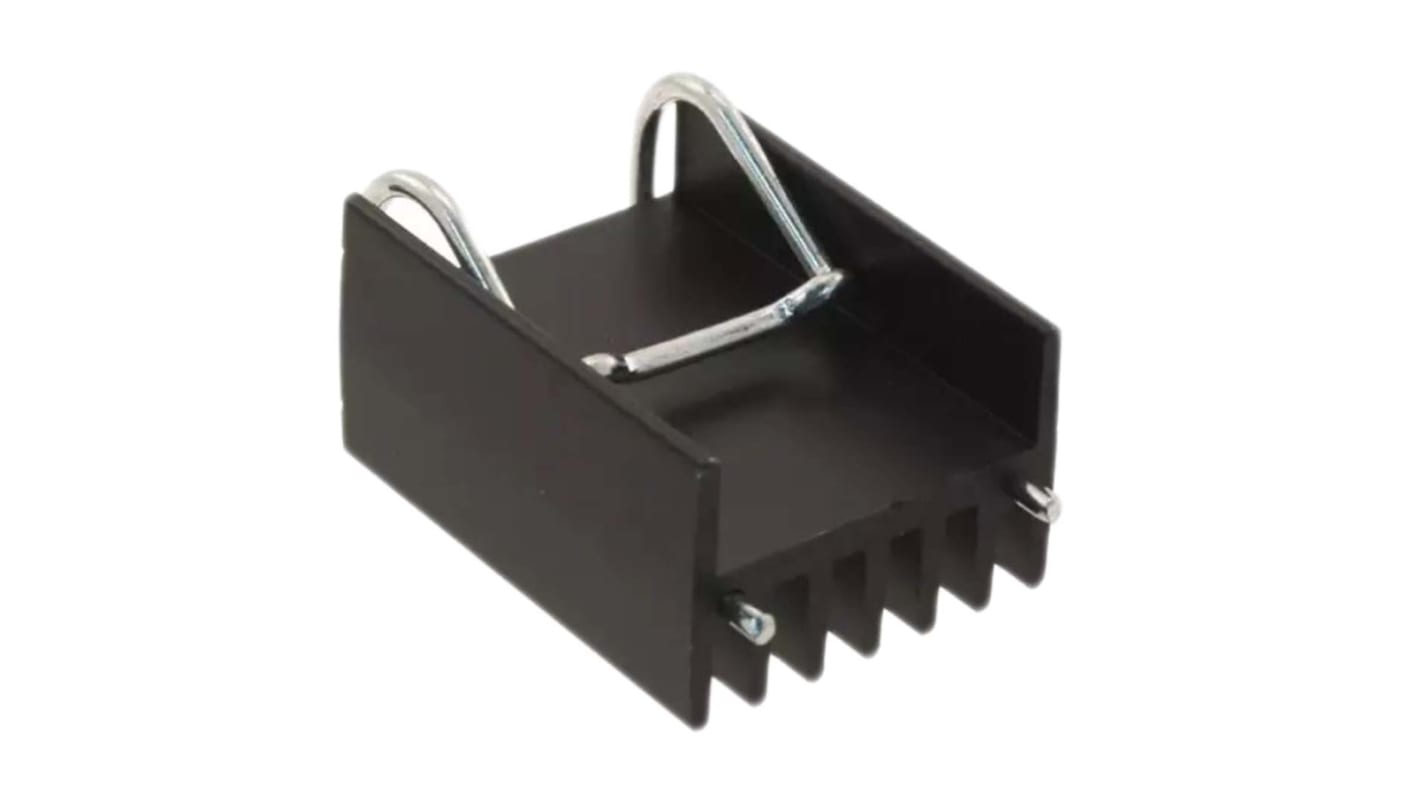

Heatsink, TEH100 Ohmite Resistor Series, TEH70 Ohmite Resistor Series, TO-247, 11°C/W, 43.4 x 23.4 x 32mm, Vertical

  • RS Stock No. 892-6483
  • Mfr. Part No. WA-T247-101E
  • Brand Ohmite
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Ohmite W Series Clip Heatsinks

Ohmite W Series heat sinks combine a tin plated, solderable, integral spring clip with an extruded aluminium heat sink body for an all-in-one solution to through-hole mounting of TO-220, TO-247, and TO-264 packages. These self-aligning heat sinks feature solderable feet and an integrated clip with 13.2 (lbf) of force on the centre of the device to enhance thermal performance.

Specifications
Attribute Value
For Use With TEH100 Ohmite Resistor Series, TEH70 Ohmite Resistor Series, TO-247
Length 43.4mm
Width 23.4mm
Height 32mm
Dimensions 43.4 x 23.4 x 32mm
Thermal Resistance 11°C/W
Mounting Vertical
Colour Black
Material Aluminium
Finish Black Anodized
Special Features Auto Design Feature, Maximum Heat Transfer, Maximum Reliability, Maximum Repeatability Constant Spring Force, Maximum Resistance to Shock and Vibration
Series W
Available to back order for despatch 10/09/2019
Price Each (In a Pack of 10)
Was £2.08
£ 1.727
(exc. VAT)
£ 2.072
(inc. VAT)
Units
Per unit
Per Pack*
10 +
£1.727
£17.27
*price indicative
