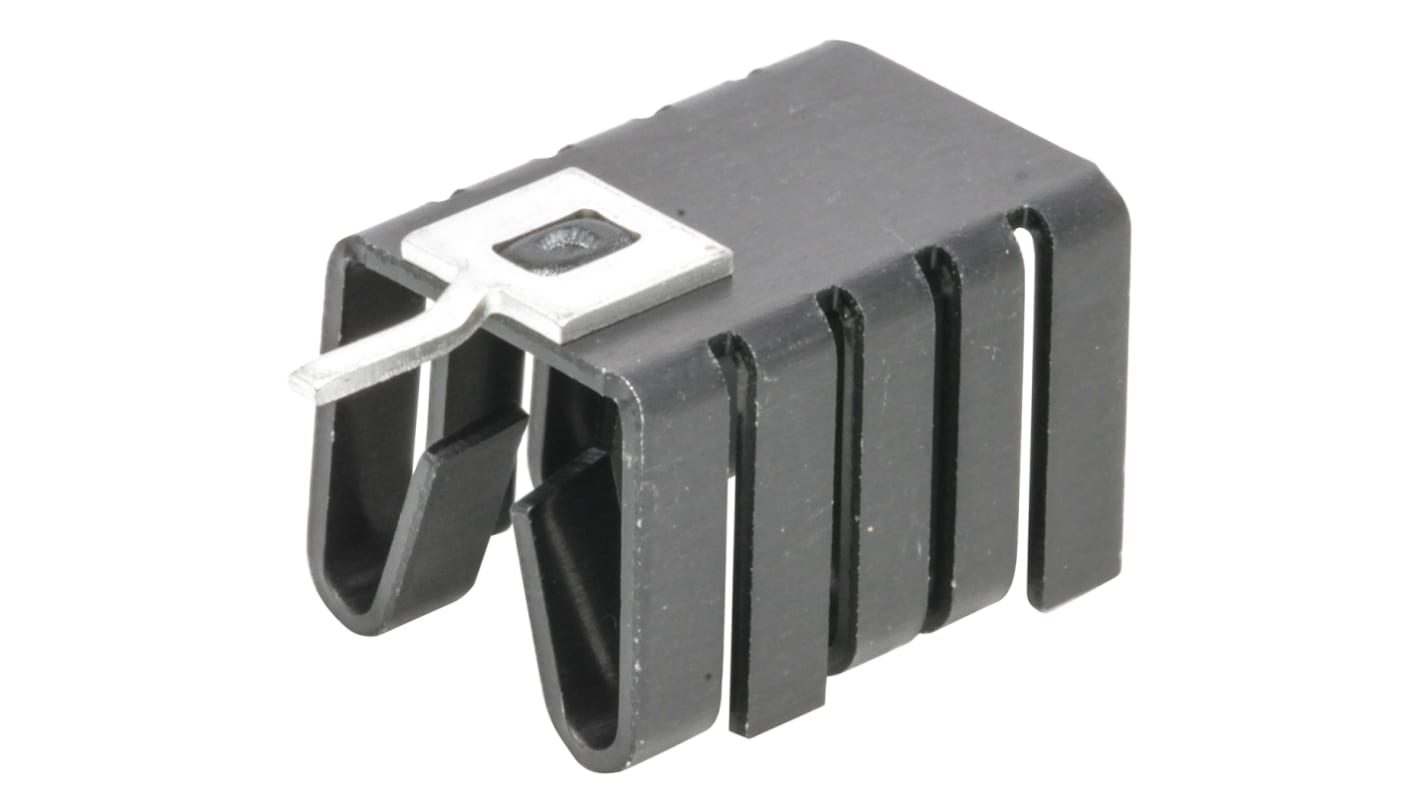

Heatsink, 21K/W, 19.05 x 14.5 x 12.7mm, Clip
- RS Stock No.:
- 189-9104
- Mfr. Part No.:
- FK237SA220V
- Brand:
- Fischer Elektronik
50 In stock for delivery within 1 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£2.08
(exc. VAT)
£2.50
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £2.08 |
| 10 - 24 | £1.92 |
| 25 - 49 | £1.82 |
| 50 - 99 | £1.77 |
| 100 + | £1.62 |
- RS Stock No.:
- 189-9104
- Mfr. Part No.:
- FK237SA220V
- Brand:
- Fischer Elektronik
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Attachable Heat Sink for TO 220, 21 and 25 K/W
All attachable heatsinks are made from black anodised diecast aluminium.
Heatsinks in the FK 237 Series have the following features:
Heatsinks in the FK 237 Series have the following features:
A very slim design ensures that it does not require much space
Easy assembly by sliding the heatsink onto the TO220 housing
Optimal heat transfer as the fastening clips on the TO 220 housing press firmly on the heatsink
Effective heat dissipation in both horizontal and vertical installation positions
Easy assembly by sliding the heatsink onto the TO220 housing
Optimal heat transfer as the fastening clips on the TO 220 housing press firmly on the heatsink
Effective heat dissipation in both horizontal and vertical installation positions
Versions:
FK 220-SA-220
No solder tags, with a transistor retaining spring for simple attachment to the TO 220 housing
FK 237-SA-220 H
With tin-plated solder tags, enabling it to be soldered directly onto the printed circuit board in a horizontal position
FK 237-SA-220 O
No solder tags
FK 237-SA-220V
With tin-plated solder tags, enabling it to be soldered directly onto the printed circuit board in a vertical position
No solder tags, with a transistor retaining spring for simple attachment to the TO 220 housing
FK 237-SA-220 H
With tin-plated solder tags, enabling it to be soldered directly onto the printed circuit board in a horizontal position
FK 237-SA-220 O
No solder tags
FK 237-SA-220V
With tin-plated solder tags, enabling it to be soldered directly onto the printed circuit board in a vertical position
Specifications
Attribute | Value |
|---|---|
| Length | 19.05mm |
| Width | 14.5mm |
| Height | 12.7mm |
| Dimensions | 19.05 x 14.5 x 12.7mm |
| Thermal Resistance | 21K/W |
| Mounting | Clip |
| Colour | Black |
| Package Type | TO-220 |
