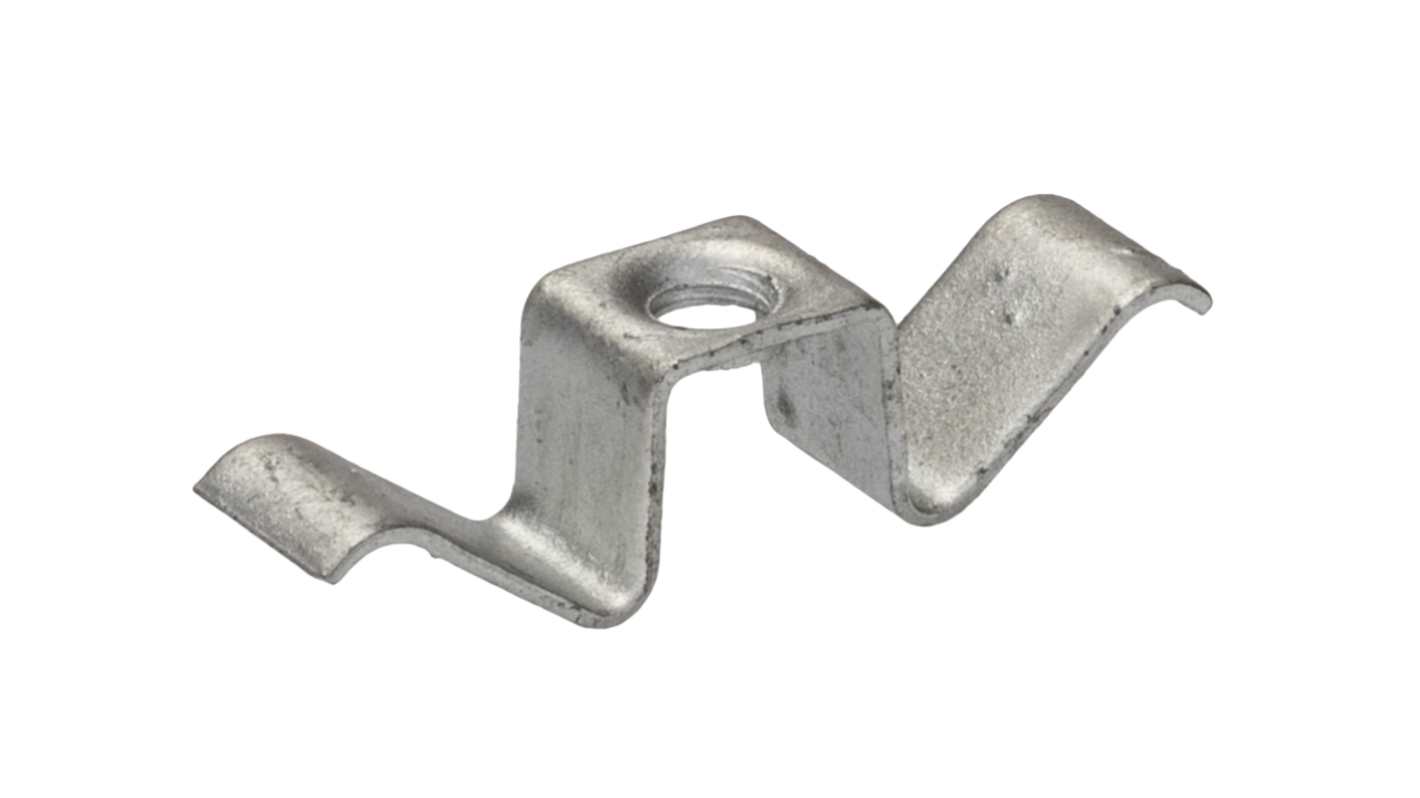

Heatsink Transistor Spring Clip for use with TO-218, TO-220, TO-247, TO-3P

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

Transistor Spring Clips

Transistor spring clips designed for single point fixing of power transistors such as TO220, TO218, TO247 and TO3P to their heatsinks
They provide strong central pressure (max. 7.5kg) to maximise the thermal transfer properties to the heatsink with only one circular hole required for two transistors
Suitable for any heatsink panel or pad thickness
Zinc plated with clear passivated finish - Isolation voltage 1000V

Specifications
Attribute Value
Accessory Type Spring Clip
For Use With TO-218, TO-220, TO-247, TO-3P
2730 In stock - FREE next working day delivery available
Price Each (In a Pack of 5)
£ 0.538
(exc. VAT)
£ 0.646
(inc. VAT)
Units
Per unit
Per Pack*
5 - 45
£0.538
£2.69
50 - 120
£0.488
£2.44
125 - 245
£0.43
£2.15
250 - 495
£0.366
£1.83
500 +
£0.306
£1.53
*price indicative
