Cartridge Heater, 130mm, 200 W, 230 V ac
- RS Stock No.:
- 374-2707
- Mfr. Part No.:
- H8X130X200
- Brand:
- Acim Jouanin
7 In stock - FREE next working day delivery available
20 available from Europe for delivery within 1 working day(s).
Added
Price Each
£46.76
(exc. VAT)
£56.11
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £46.76 |
| 5 - 9 | £45.31 |
| 10 + | £44.32 |
- RS Stock No.:
- 374-2707
- Mfr. Part No.:
- H8X130X200
- Brand:
- Acim Jouanin
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details

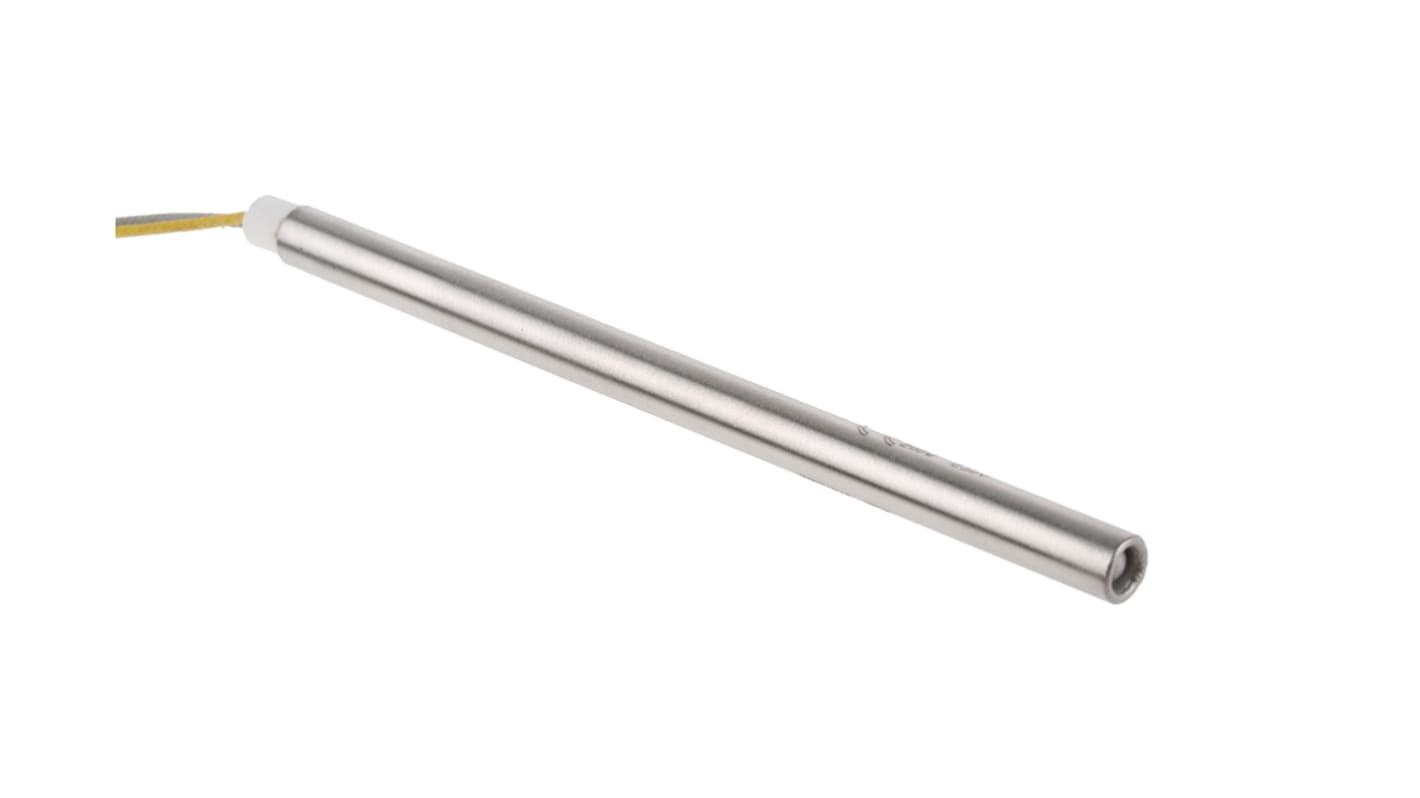

Acim Jouanin Cartridge Heater
The Acim Jouanin 200W cartridge heater has a diameter of 8mm and length of 130mm. It provides localised heat to a restricted work area requiring close thermal control. The cartridge heater has low/moderate watt density elements consisting of helical wire coils on ceramic former. It can also have high watt density elements with the heating element located close to the sheath that is swaged to improve heat conduction.
Features and Benefits
Ceramic end cap protecting the connection leads
Lead length is 250mm
Plasma-welded completely sealed base
Stainless steel body for applications up to maximum 750°C
Supply voltage is 230V
Very quickly raises the temperature of solid masses by conduction
Watt density is 7W/cm²
Lead length is 250mm
Plasma-welded completely sealed base
Stainless steel body for applications up to maximum 750°C
Supply voltage is 230V
Very quickly raises the temperature of solid masses by conduction
Watt density is 7W/cm²
Applications
Food production
HVAC compressors
Immersion tank heating
Injection moulding manifolds
Mass spectrometry
Rubber moulding
Seal bars
Torpedo heaters for injection moulding
HVAC compressors
Immersion tank heating
Injection moulding manifolds
Mass spectrometry
Rubber moulding
Seal bars
Torpedo heaters for injection moulding
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
BS EN 61340-5-1:2007
Specifications
Attribute | Value |
|---|---|
| Element Type | Cartridge Heater |
| Power Rating | 200 W |
| Supply Voltage | 230 V ac |
| Length | 130mm |
| Diameter | 8 mm |
| Lead Length | 250mm |
