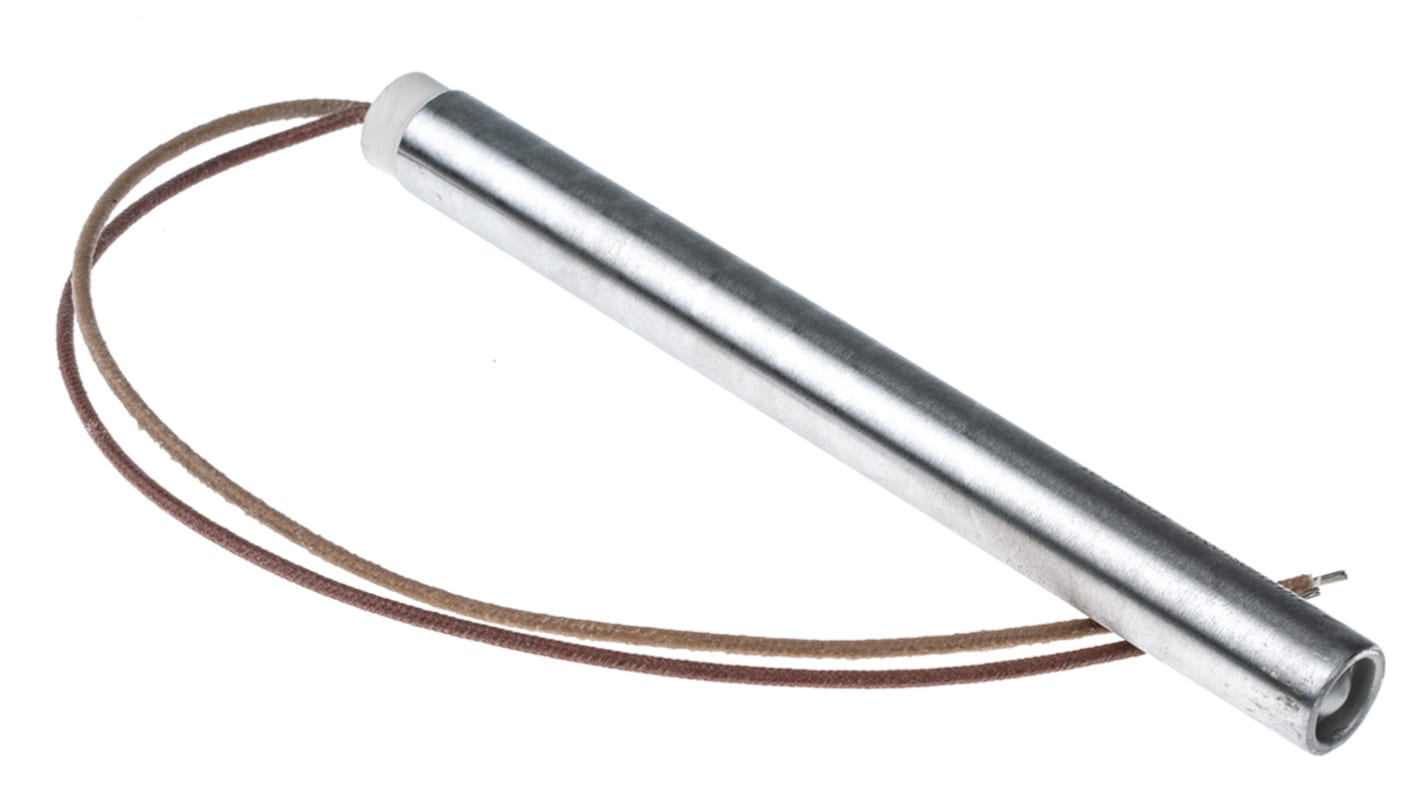

Cartridge Heater, 160mm, 1 kW, 230 V ac

RS Stock No.:: 374-2533
Mfr. Part No.:: H16X160X1000
Brand:: Acim Jouanin

3 In stock - FREE next working day delivery available

Added

Price Each

£56.87

(exc. VAT)

£68.24

(inc. VAT)

Units	Per unit
1 - 4	£56.87
5 - 9	£55.10
10 +	£53.97

RS Stock No.:: 374-2533
Mfr. Part No.:: H16X160X1000
Brand:: Acim Jouanin

Technical Reference

Standard Cartridge Heaters Datasheet

Legislation and Compliance

COO (Country of Origin):: FR

Product Details

Acim Jouanin Cartridge Heater

The Acim Jouanin 1000W cartridge heater has a diameter of 16mm and length of 160mm. It provides localised heat to a restricted work area requiring close thermal control. The cartridge heater has low/moderate watt density elements consisting of helical wire coils on ceramic former. It can also have high watt density elements with the heating element located close to the sheath that is swaged to improve heat conduction.

Features and Benefits

Ceramic end cap protecting the connection leads
Lead length is 267mm
Plasma-welded completely sealed base
Stainless steel body for applications up to maximum 750°C
Supply voltage is 230V
Very quickly raises the temperature of solid masses by conduction
Watt density is 14W/cm²

Applications

Food production
HVAC compressors
Immersion tank heating
Injection moulding manifolds
Mass spectrometry
Rubber moulding
Seal bars
Torpedo heaters for injection moulding

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Specifications

Attribute	Value
Element Type	Cartridge Heater
Power Rating	1 kW
Supply Voltage	230 V ac
Length	160mm
Diameter	16 mm
Lead Length	267mm
