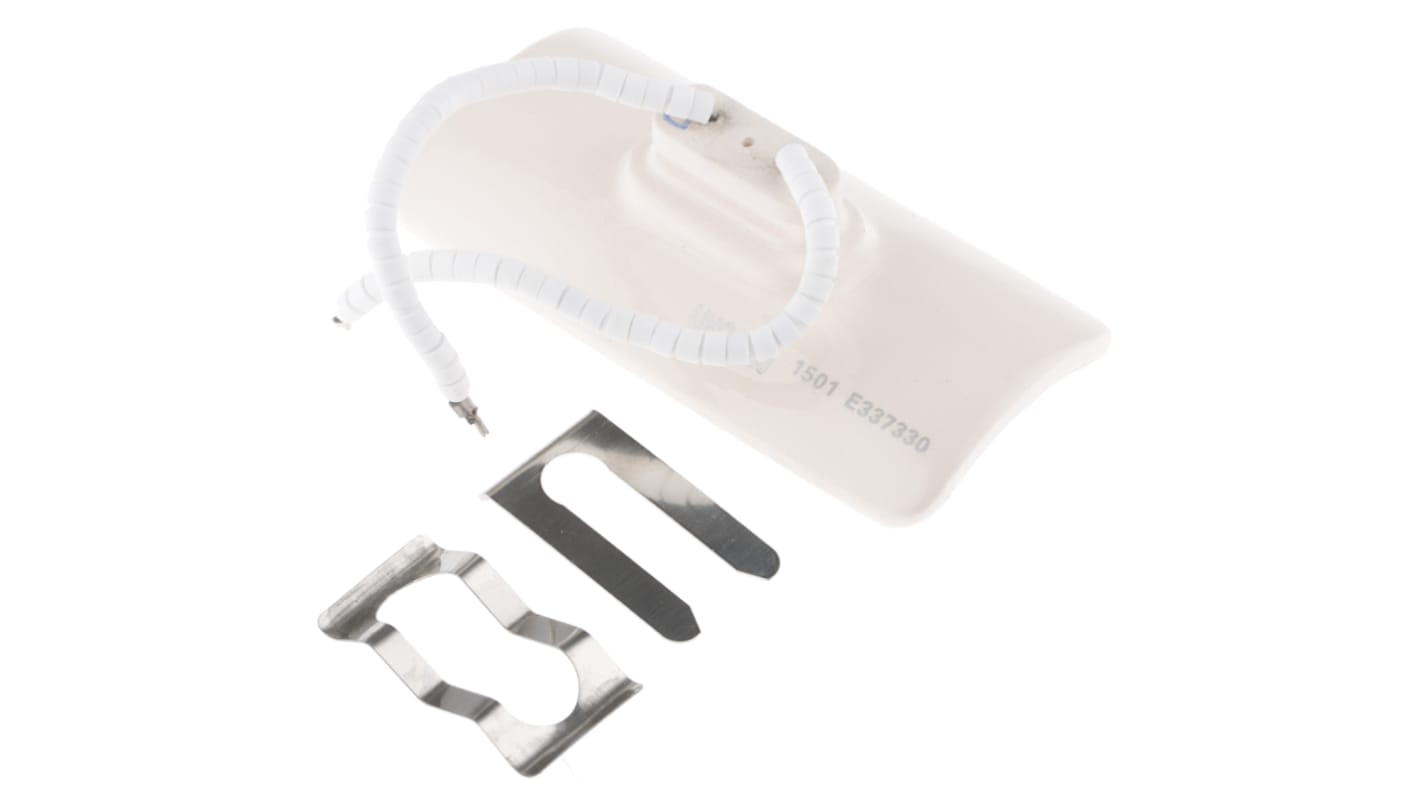

Ceramic Heating Element, 122mm, 200 W, 230 V ac


13 In stock - FREE next working day delivery available
Add to Basket

Price Each

£18.28

(exc. VAT)

£21.94

(inc. VAT)

Units

Added

RS Stock No.:
196-6490
Brand:
RS PRO
UnitsPer unit
1 - 4£18.28
5 - 9£17.73
10 +£17.34

Ceramic Heating Elements


These heating elements are extremely energy efficient converting 96% of the input power to heat with a maximum temperature of 700ºC


5000 - 10,000 hours working life
Available in two sizes and with or without integral type K thermocouple for monitoring and control

Heating wire embedded into concave shaped heater creates infrared in parallel rays

230V ac supply

Suitable for long wave radiation, curing, heating and drying

Thermocouple included with RS Stock Numbers - 376-2688, 376-2694 and 376-2701


Note

Stock Item 376-2672 has a built in Thermocoupler and is 4 wire.

Multi-Purpose Process Heaters

In order to obtain optimum performance from these products, it is advised that temperature sensing and control elements be used with them.

Warning

These heaters shall only be used where adequate electrical, thermal and mechanical barriers are provided to prevent access to hazardous parts without the use of a tool.

AttributeValue
Power Rating200 W
Supply Voltage230 V ac
Length122mm
Width60mm
Thickness35mm
Heating Element FormCurved Ceramic Element
Dimensions122 x 60 x 35 mm
