Bosch GHG 23-66 650°C max Heat Gun, Type G - British

  • RS Stock No. 181-6799
  • Mfr. Part No. 06012A6370
  • Brand Bosch
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): RO
Product Details

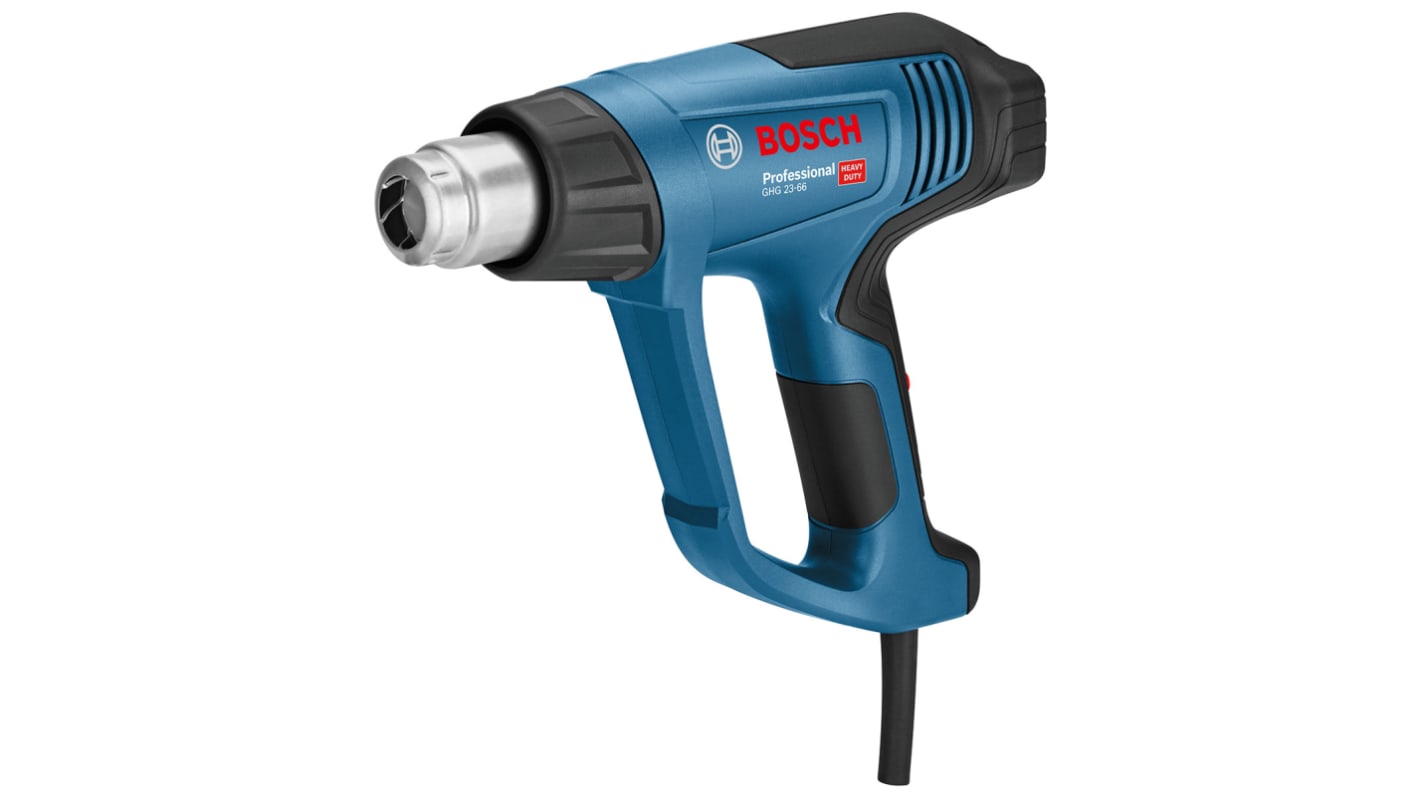

Bosch Professional GHG 23-66 2300W Heat Gun (06012A6360)

Introducing the GHG 23-66 Professional Heat Gun from Bosch that operates at 2300 watts and has a maximum working temperature of 650 degrees Celsius. The GHG 23-66 offers unique features such as digital temperature adjustment as well as variable airflow control from 150 to 500 litres per minute in increments of ten. This makes the tool especially suitable for demanding applications, for example, the welding of plastic workpieces. The temperature and airflow control, which can be read quickly and easily on the 1.4-inch LCD display, offers maximum precision: Temperature-critical workpieces can be melted without burning. Four adjustable programs ensure additional ease of use by making airflow and temperature immediately available for the main applications. If the heating element of the GHG 23-66 Professional overheats, it automatically switches itself off, similar to the GHG 20-63 Professional, and is additionally cooled by the blower, which remains in operation.

Bosch Professional GHG 23-66 is available in two voltage options:
• Bosch GBG 23-66 110V - 181-6798
• Bosch GBG 23-66 230V - 181-6799

Features and Benefits:

• 10 airflow rates,
• Digitally adjustable temperature setting
• 4 customizable programs for total tool control
• Incredibly strong 2300 W motor to quickly reach 650 °C
• Thermal Protection shut off in case of overheating
• Protective handle
• Supplied with two nozzles
• Available in 110V (181-6798) and 230V (181-6799) options

Technical Specification:

• Power input - 2.3 kW
• Temperature - 50°C – 650 °C (by steps of 10°C)
• Airflow - 150-500 l/min
• Machine weight - 0.47 kg
• Power cord length: 250mm
• Thermal Stop: Yes
• Memory programs: 4
• 1.4in Display: Yes
• Weight: 0.67 kg

Typical Applications:

Heat guns usually come with various heat and airflow settings which can be adjusted to suit all your requirements. Heat guns can be used in industrial and DIY applications such as:
• Stripping paint and varnish
• Heating materials such as plastic and vinyl so they can be shaped or welded
• Apply shrinkwrap
• Loosen fittings
• Thaw frozen pipes
• Soften adhesives
• Dry out materials and much more


What is supplied in the set?
• 1x GHG 23-66 Professional Heat Gun
• 1x 75mm Glass Protection Nozzle
• 1x 500 Surface Nozzle
• 1x Pistol Grip Handle
• 1x Blow Mould Carry Case

Is there a scraper included in the kit?
No, a scraper is not included in the kit

What is the actual air temperate range?
The temperature ranges from 50 °C and 650 °C

Attribute Value
Heat Gun Part Heat Gun
Maximum Airflow 500L/min
Wattage 2.3kW
Voltage Rating 230V
Maximum Operating Temperature 650°C
Plug Type Type G - British
Weight 670g
Model Number GHG 23-66
8 In stock - FREE next working day delivery available
Price Each
£ 144.24
(exc. VAT)
£ 173.09
(inc. VAT)
Per unit
1 +
