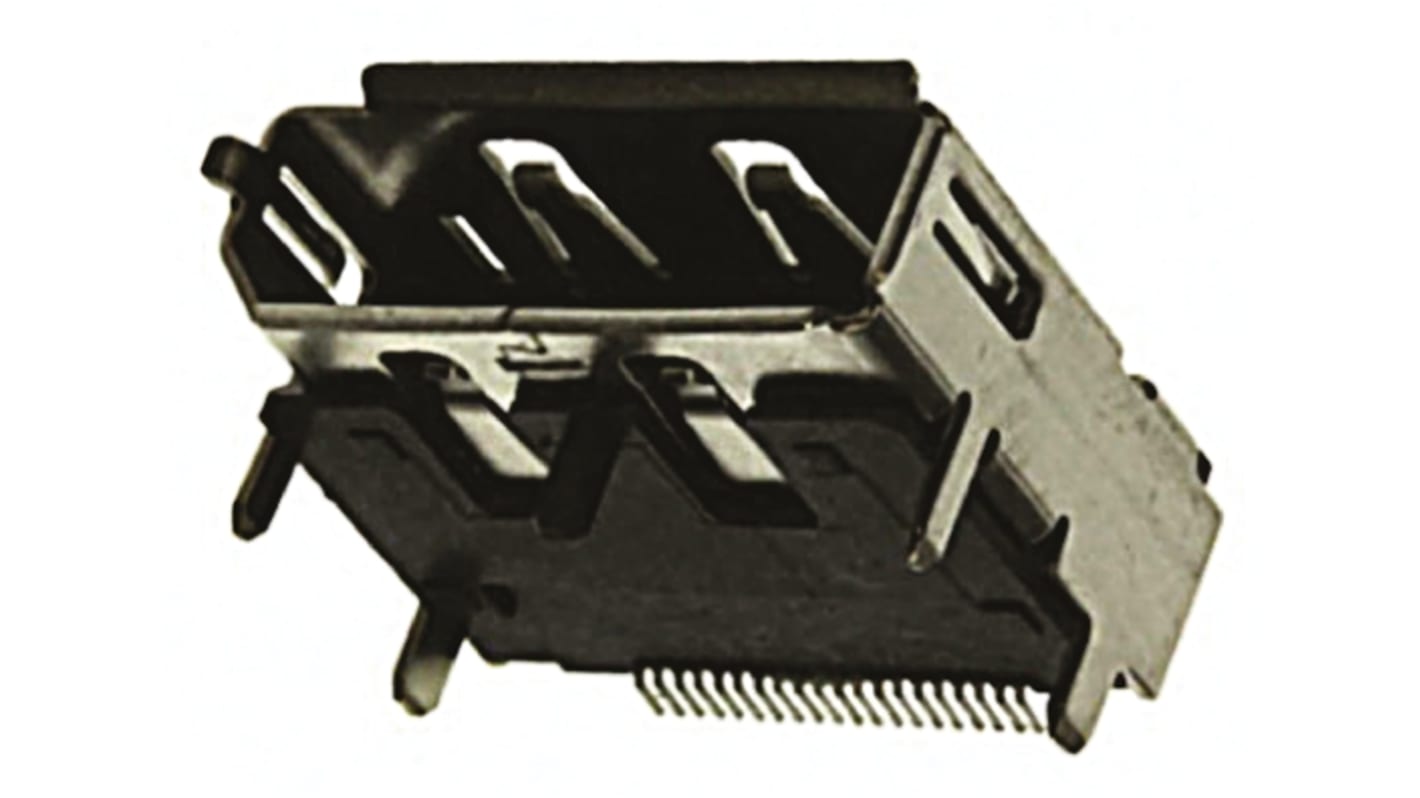

HDMI Receptacle assembly SMT 19 way

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

TE Connectivity’s (TE) connector incorporating high-definition multimedia interface (HDMI) technology is an interface for consumer electronics products such as digital television, set-top boxes, and multimedia players. The product specification is usually controlled by the industry specification for HDMI standard (Specification Version 1.3a). HDMI technology supports standard, enhanced or high-definition video, plus multi-channel audio on a single cable.

Simple, user friendly connector
Full shielding for ESD protection and lead-free process available
Available with or without panel flange
19 positions and 5 Gbps of bandwidth to support video and multi-channel audio in a single cable
Replaces existing audio and digital cabling in one assembly
Easy to use friction lock design provides secure electrical contact and smooth cable insertion/extraction
Applications
HD televisions
Set-top boxes
Telepresence systems
Gaming applications
Screens and displays
Non display related 19P, 5 Gbps applications

300 In stock for FREE next working day delivery
Price Each (On a Reel of 300)
£ 2.038
(exc. VAT)
£ 2.446
(inc. VAT)
Units
Per unit
Per Reel*
300 - 7200
£2.038
£611.40
7500 - 22200
£1.912
£573.60
22500 - 59700
£1.816
£544.80
60000 - 119700
£1.725
£517.50
120000 +
£1.639
£491.70
*price indicative
