Product Details

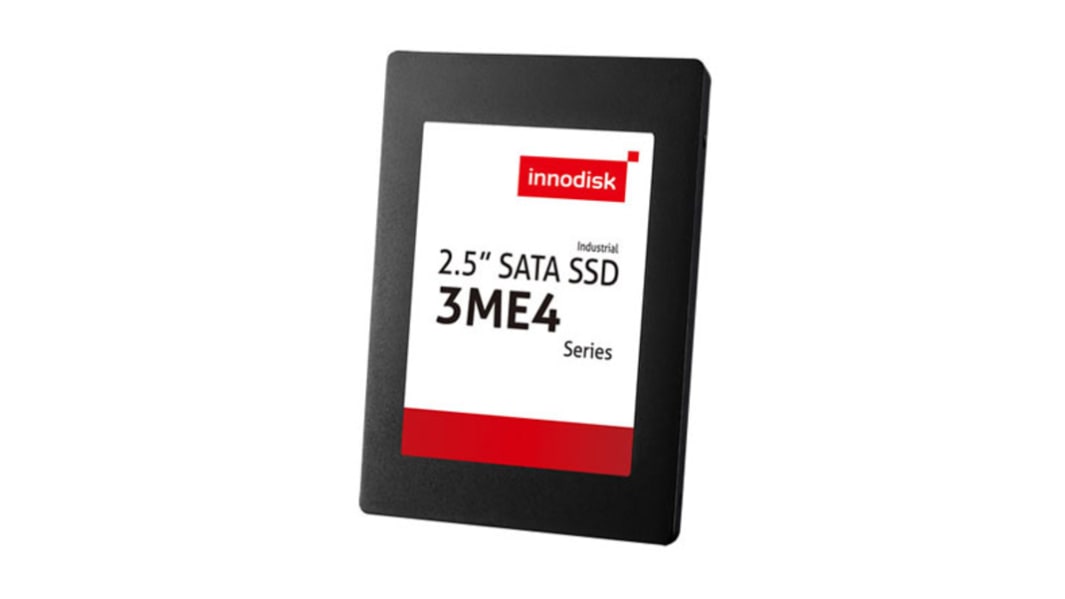

InnoDisk 2.5in SATA SSD 3ME4 Series
Innodisk 2.5 SATA SSD 3ME4 is characterised by L3 architecture with the latest SATA III (6.0 GHz) Marvell NAND controller. Innodisk exclusive L3 architecture is L2 architecture multiplied LDPC (Low Density Parity Check).
L2 (Long Life) architecture is a 4K mapping algorithm that reduces WAF and features a real-time wear levelling algorithm to provide high performance and prolong lifespan with exceptional reliability
L2 (Long Life) architecture is a 4K mapping algorithm that reduces WAF and features a real-time wear levelling algorithm to provide high performance and prolong lifespan with exceptional reliability
2.5 SATA III solution for industrial field
7 mm height mechanical design
DRAM-less, high-level data integrity
L3 architecture extends lifespan
Excellent IOPS boosts system performance
Built-in thermal sensor
Support S.M.A.R.T, TRIM, NCQ and iData Guard
Industrial Grade Toshiba MLC 3K NAND
Controlled BOM
Operating Temperature range: -40゚C to +85゚C
Solid State Drives
Specifications
Attribute | Value |
---|---|
Model | 3ME4 |
Hard Drive Type | SSD |
Internal/External | Internal |
Industrial | Yes |
Form Factor | 2.5 in |
Capacity | 16 GB |
Interface | SATA III |
Nand Type | MLC |
Dimensions | 69.85 x 100 x 6.9mm |
Length | 69.85mm |
Width | 100mm |
Height | 6.9mm |
