CAMDENBOSS, 2957, ABS, Handheld Enclosure With Integral Battery Compartment ,57 mm x 16 mm x 36 mm

  • RS Stock No. 540-1357
  • Mfr. Part No. 2957-23
  • Brand CAMDENBOSS
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): ES
Product Details

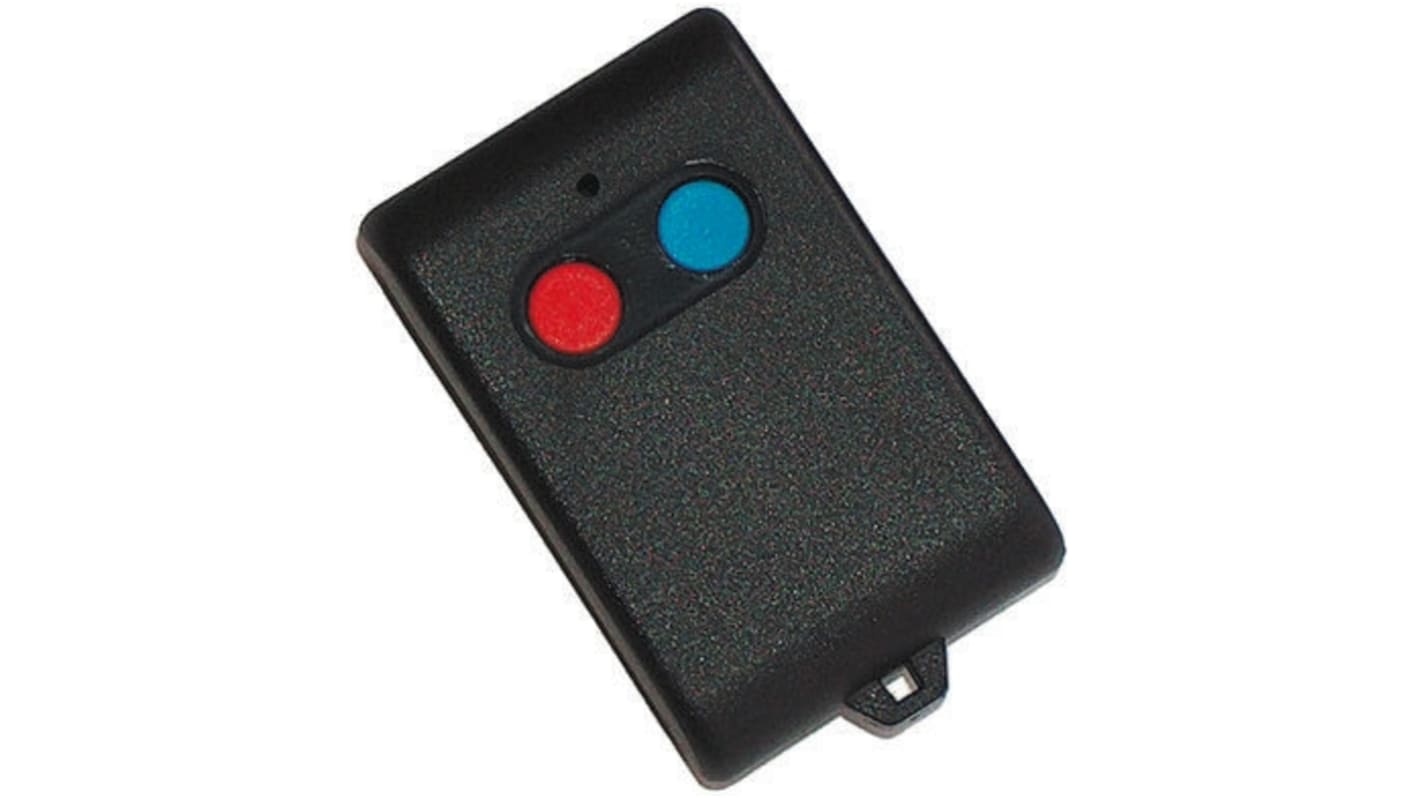

Miniature Key Fob Case

Miniature key fob cases designed for remote control applications, with one, two or three button segments. Loop provided for key ring or strap.

UL94 HB rated
Rigid snap-fit assembly
PCB mounting bosses provided in base
LED view window provided in lid

Note

Batteries not included. Fobs have battery clips that are suitable for mounting on a PCB and can take GP27A, GP10A or MN27 coin cell type batteries, see stk no. 386-9688 typically.

Key Fob Enclosures

Suitable for small wireless control of alarms, doors, entry systems.

Specifications
Attribute Value
Body Material ABS
External Length 57 mm
External Width 36 mm
External Height 16 mm
Integral Battery Compartment Yes
Colour Black
External Dimensions 57 x 36 x 16mm
Push Buttons Yes
Number Of Push Buttons 2
Series 2957
5 In stock for FREE next working day delivery
Price Each
£ 3.74
(exc. VAT)
£ 4.49
(inc. VAT)
Units
Per unit
1 - 14
£3.74
15 - 24
£3.56
25 +
£3.47
