- RS Stock No.:
- 513-5303
- Mfr. Part No.:
- 1553DBK
- Brand:
- Hammond
23 In stock - FREE next working day delivery available
3 available from Europe for delivery within 1 working day(s).
Added
Price Each
£8.37
(exc. VAT)
£10.04
(inc. VAT)
Units | Per unit |
1 - 4 | £8.37 |
5 - 9 | £7.95 |
10 - 24 | £7.53 |
25 - 49 | £7.11 |
50 + | £6.70 |
- RS Stock No.:
- 513-5303
- Mfr. Part No.:
- 1553DBK
- Brand:
- Hammond
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CA
Product Details

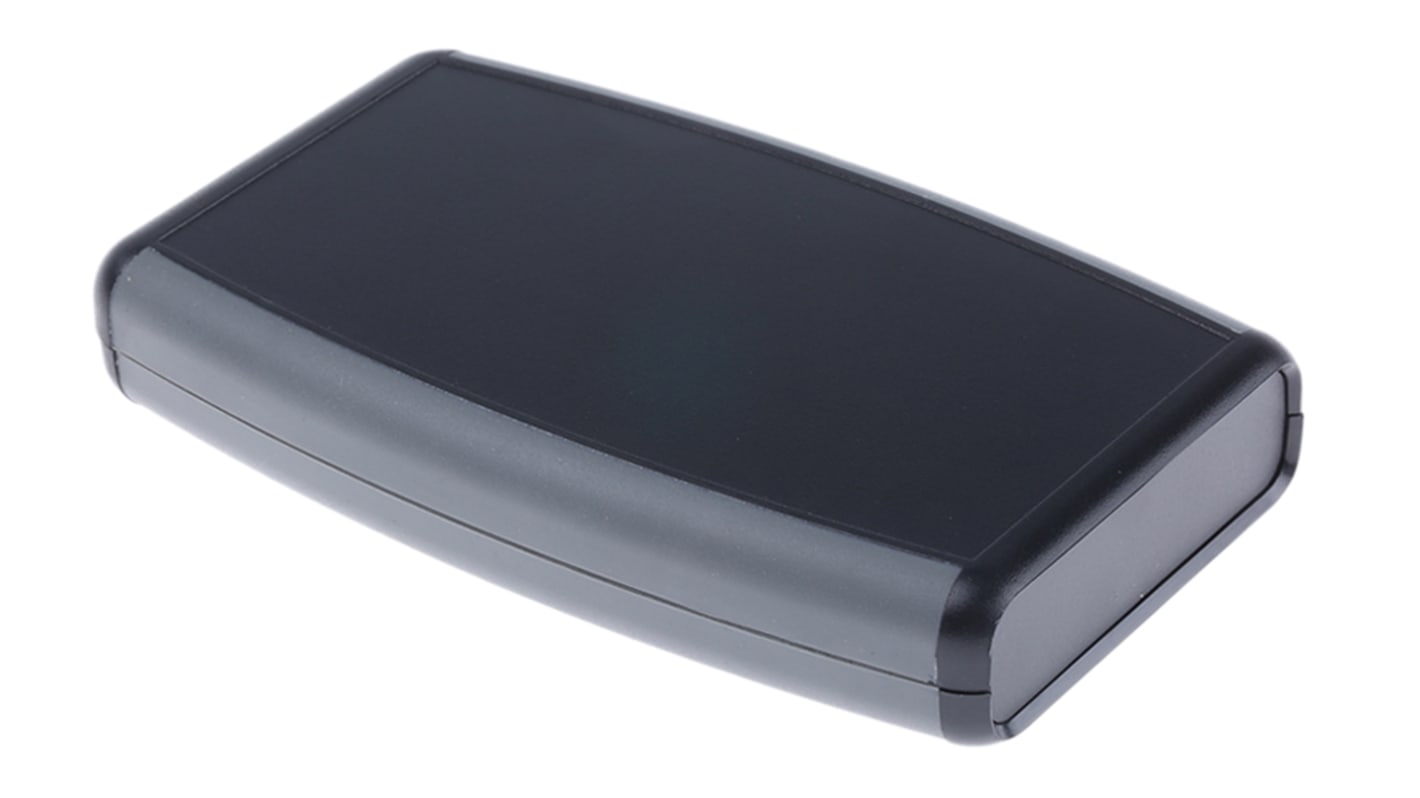

Hammond Handheld Enclosure, 147 (L) x 89 (W) x 25mm (H), ABS Construction, 97g Weight - 1553 Series - 1553DBK
Box your PCB away from dust and environmental elements in this handheld enclosure from Hammond. It does double duty by covering your board and protecting you from contact with live parts that may lead to electric shocks. For convenient and secure assembly, this unit comes with screws that are held inside internal bushings to protect your kit from damage. Thanks to its ABS construction, the unit withstands wear and impact, making it ideal for use in harsh environments. Soft overmoulds on the sides give you a comfortable grip during handling.
Features & Benefits
IP54 rating shows that it's resistant to dust and water splashes from all directions
Light weight of 97g means it's a cinch to carry around
Integral battery compartment to accommodate the PCB power source
Standoffs are moulded into the enclosure for the easy installation of a board
Light weight of 97g means it's a cinch to carry around
Integral battery compartment to accommodate the PCB power source
Standoffs are moulded into the enclosure for the easy installation of a board
Applications
Robotics and automation systems
Measurement and instrumentation devices
Marine engineering
Automotive workshops
Measurement and instrumentation devices
Marine engineering
Automotive workshops
Is this enclosure flame-resistant?
Yes, this holder has a very slow burning rate to help limit the spread of fire, making it a safe choice for your workplace.
Soft Sided moulding with PCB Standoffs in lid and base. Recessed top cover for membrane keypad or label
Specifications
Attribute | Value |
---|---|
Body Material | ABS |
External Length | 147.2 mm |
External Width | 89 mm |
External Height | 25 mm |
Integral Battery Compartment | No |
IP Rating | IP54 |
Weight | 95g |
Display Window | No |
Colour | Black |
External Dimensions | 147.24 x 89 x 25mm |
Push Buttons | No |
Special Features | Integrated Battery Compartment for 2 x AA |
Internal Mounting Type | PCB Mounting Bosses |
Series | 1553 |
Standards Met | RoHS |
Keypad Recess | Yes |
- RS Stock No.:
- 513-5303
- Mfr. Part No.:
- 1553DBK
- Brand:
- Hammond
