Rose, Polyamide, Handheld Enclosure, IP65 ,117 mm x 68 mm x 380 mm

  • RS Stock No. 343-8105
  • Mfr. Part No. 27020501
  • Brand Rose
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

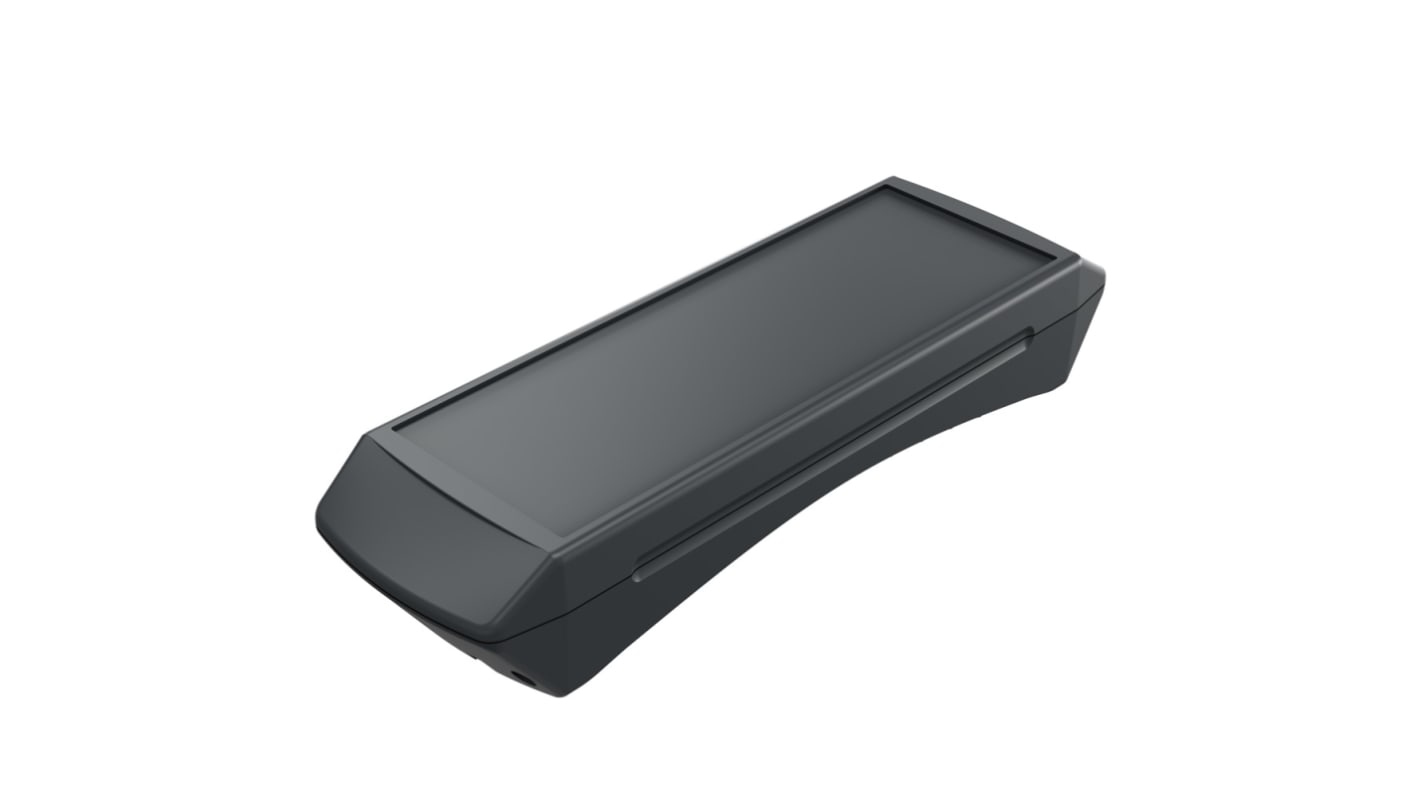

Beluga Model 380 Hand Held Enclosure.

The Rose Beluga series of handheld enclosures suitable for use with automation and control systems including MCR and automation engineering. The enclosure has a large internal area allowing you to easily install display fixing systems benefiting displays of various sizes. The Beluga series of enclosures are made from a hard wearing, double skinned, IP65 Polyamide and you can choose from models with or without display opening. This is a truly versatile, mobile hand held enclosure as it can also be used as an upright table / desktop enclosure, wall mounted enclosure plus carried around on a neck strap.

Features and Benefits.

• Beluga series hand held enclosure, Beluga380. • Flexible space.
• Ready for keypads and silicone mats.
• With or without display opening.
• Double skinned Polyamide.
• Top and bottom sections.
• Colour is back grey (RAL 7021).
• IP 65 (EN 60529).
• Flammability UL 94 V-2.
• Surface resistance IEC 60093.
• Temperature range -40°C to +60°C.
• Versatile (desk mounted, wall mounted, used with a neck strap).
• Hard wearing.
• Indoors and outdoors.

Hand Held Enclosure Models Available.

• Stock number 3438082, Beluga 180. • Stock number 3438098, Beluga 220.
• Stock number 3438105, Beluga 380.

Enclosure Typical Applications.

• Machine operation and control. • Setting up work and condition diagnosis.
• Crane control systems.
• Measuring systems (harsh environments including outdoors).
• Display enclosures.
• Measuring instruments.

(IP) Ingress Protection and what it means.

The first number is the protection from solids. The second number is the protection from liquids.

IP rating classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact, and water in electrical enclosures.

FAQ's.

Can the enclosure be used outside?

IP 65 protection from total dust ingress and waterproof (projected from any direction by 6.3 mm nozzle).

What is Supplied?

• Top. • Base.
• Fixing domes.
• Fastening and enclosure screws.

What can I install within the enclosure?

• Membrane keypads. • Displays.
• Emergency OFF switches.
• Key switches.
• Hand wheels and step switches.
• Enabling switches.
• Cable entries.
• Also suitable for many other installations.

Standards

IP65 EN 60529, UL 94 V-2, IEC 60093.

Specifications
Attribute Value
Body Material Polyamide
External Length 117 mm
External Width 380 mm
External Height 68 mm
IP Rating IP65
Display Window Yes
Colour Black, Grey
External Dimensions 117 x 380 x 68mm
Push Buttons No
Special Features Double-Skinned, Fastening and Enclosure Screws, Fixing Domes, MCR and Automation Engineering, Optional EMC Version with Internal Coating and EMC-Seal, Prepared for Keypads/Silicone Switch Mats, Top and Base Unit, With or Without Display Opening
Series Beluga
Standards Met UL 94 V-2
Keypad Recess Yes
Available to back order for despatch 11/10/2019
Price Each
£ 39.02
(exc. VAT)
£ 46.82
(inc. VAT)
Units
Per unit
1 - 14
£39.02
15 - 24
£37.05
25 +
£35.81
