Takachi Electric Industrial, CS, ABS, Handheld Enclosure With Integral Battery Compartment ,35 mm x 12 mm x 75 mm

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

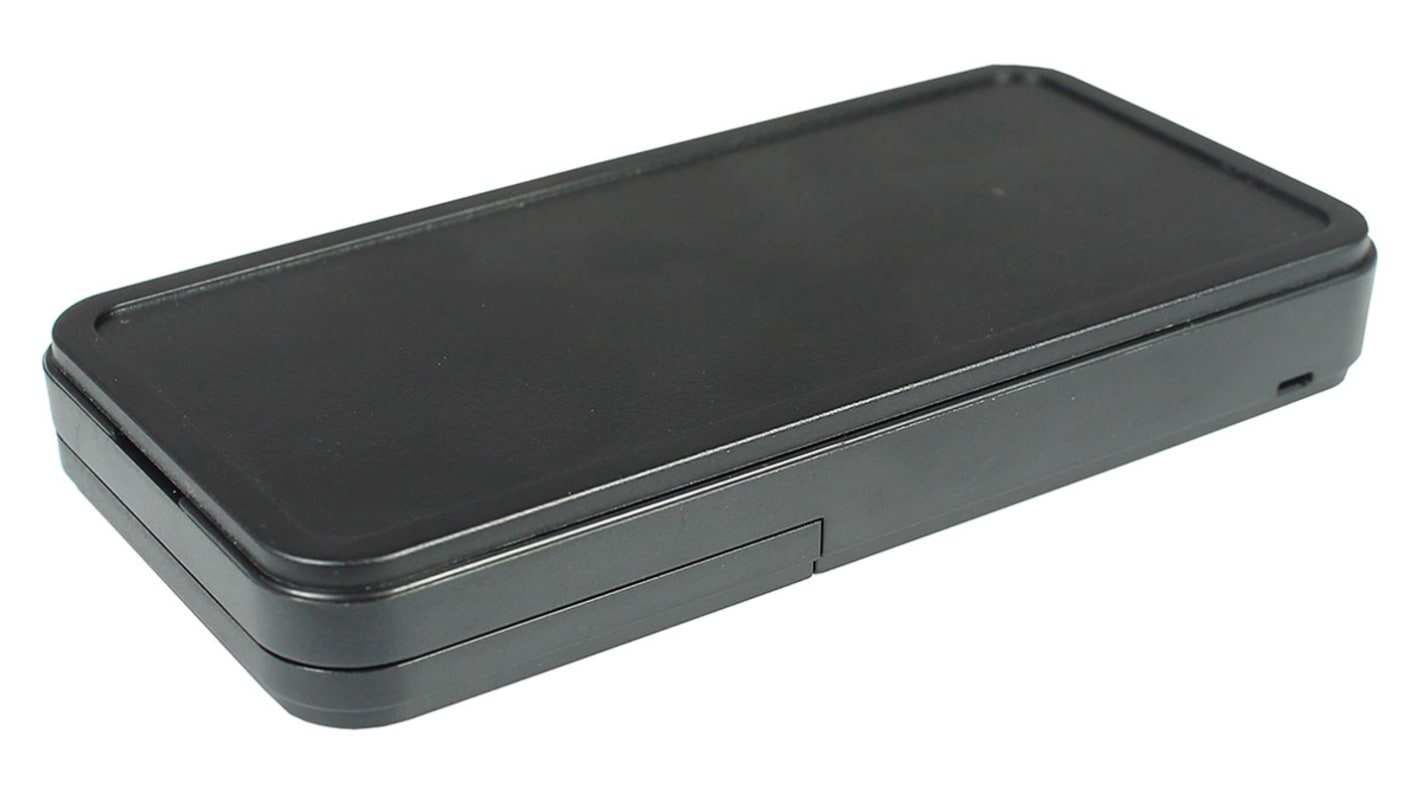

Takachi CS Slim Plastic Case

The Takachi CS Series is a slim handheld plastic enclosure suitable for use as RFID, remote controller, wireless key fob or small tester/device. A protective cover, available separately, offers added grip and impact protection.

Features and Benefits

ABS UL94HB
IP40 rated
Operating temperature -10 to +60°C
Available with or without battery compartment
A hole in the side of the case is designed for use with a strap

Accessories

Stock no. 906-0304, yellow protective cover 76.6x38.6x15.5mm
Stock no. 906-0307, Size 1 PCB 68.9x28.9x1mm
Stock no. 906-0301, Size 3 PCB 108.9x56.9x1mm

Note

Battery compartment for CR2032 x1

Supplied with

Top and bottom cover, battery cover, battery contact, 4 x screws and CR2032 sticker.

Specifications
Attribute Value
Body Material ABS
External Length 35 mm
External Width 75 mm
External Height 12 mm
Integral Battery Compartment Yes
Colour Black
External Dimensions 35 x 75 x 12mm
Special Features Easy Battery Replacement
Series CS
Standards Met UL 94 HB
160 In stock for FREE next working day delivery
Price Each
£ 4.52
(exc. VAT)
£ 5.42
(inc. VAT)
Units
Per unit
1 - 1
£4.52
2 - 4
£4.41
5 +
£4.30
