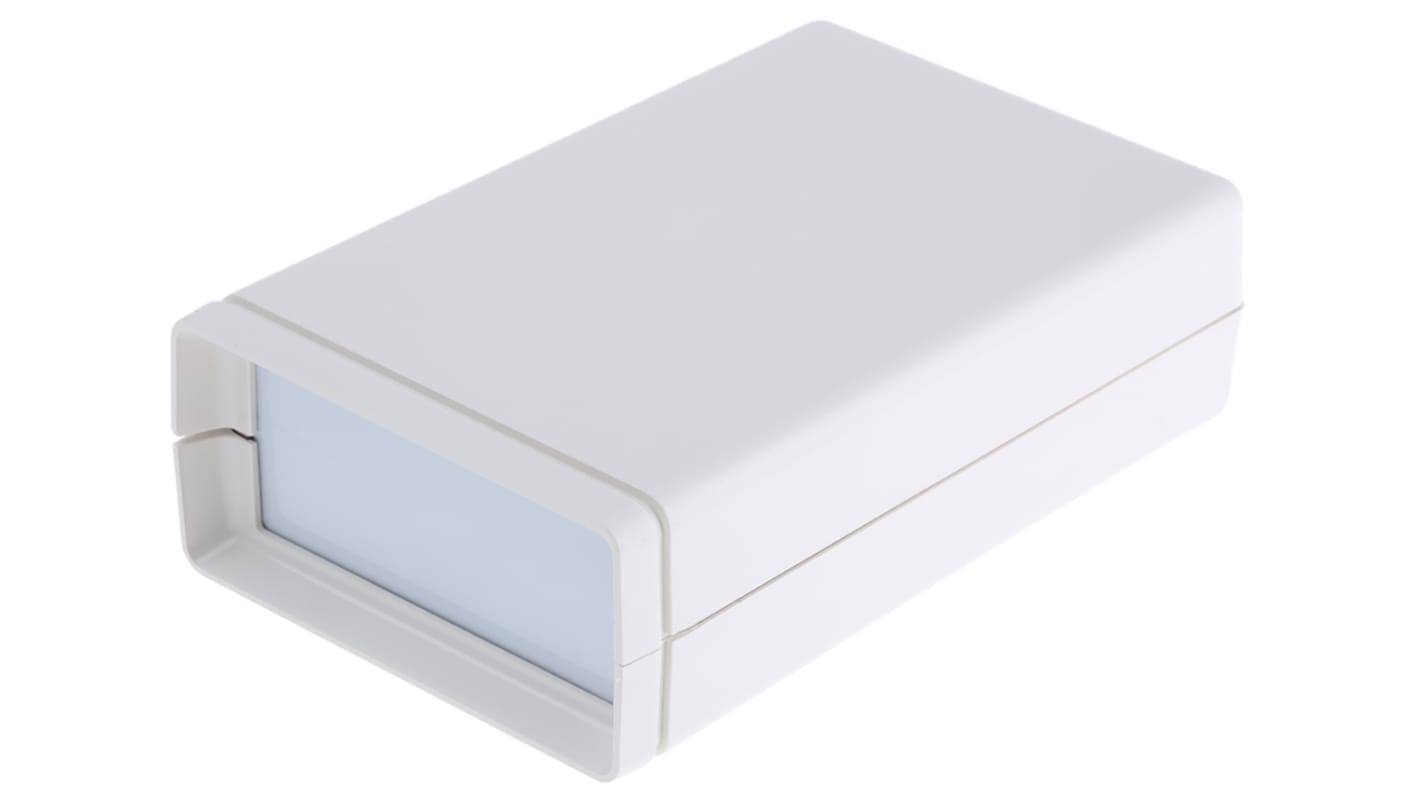

OKW, Shell-Type Case, ABS, Handheld Enclosure With Integral Battery Compartment, IP65 ,114 mm x 33 mm x 72 mm

  • RS Stock No. 583-195
  • Mfr. Part No. A9406334+A9107111
  • Brand OKW
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

High Impact, Polystyrene

Anodised aluminium front panels
Battery compartment with slide in snap locking cover
PCBs can be mounted either vertically in guides, or horizontally on pillars with No. 4 self tappers
Stock nos 583-230 and 583-246 accept 100x160 eurocards
Battery connector required for PP3 models, AA models supplied with a series connecting tag

Specifications
Attribute Value
Body Material ABS
External Length 114 mm
External Width 72 mm
External Height 33 mm
Integral Battery Compartment Yes
IP Rating IP65
Colour White
External Dimensions 114 x 72 x 33mm
Series Shell-Type Case
45 In stock for FREE next working day delivery
Price Each
£ 14.87
(exc. VAT)
£ 17.84
(inc. VAT)
Units
Per unit
1 - 14
£14.87
15 - 24
£14.10
25 +
£13.64
