Bopla, ABS, Handheld Enclosure With Integral Battery Compartment, IP65 ,209.3 mm x 34.8 mm x 98 mm

  • RS Stock No. 295-126
  • Mfr. Part No. 82804224
  • Brand Bopla
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

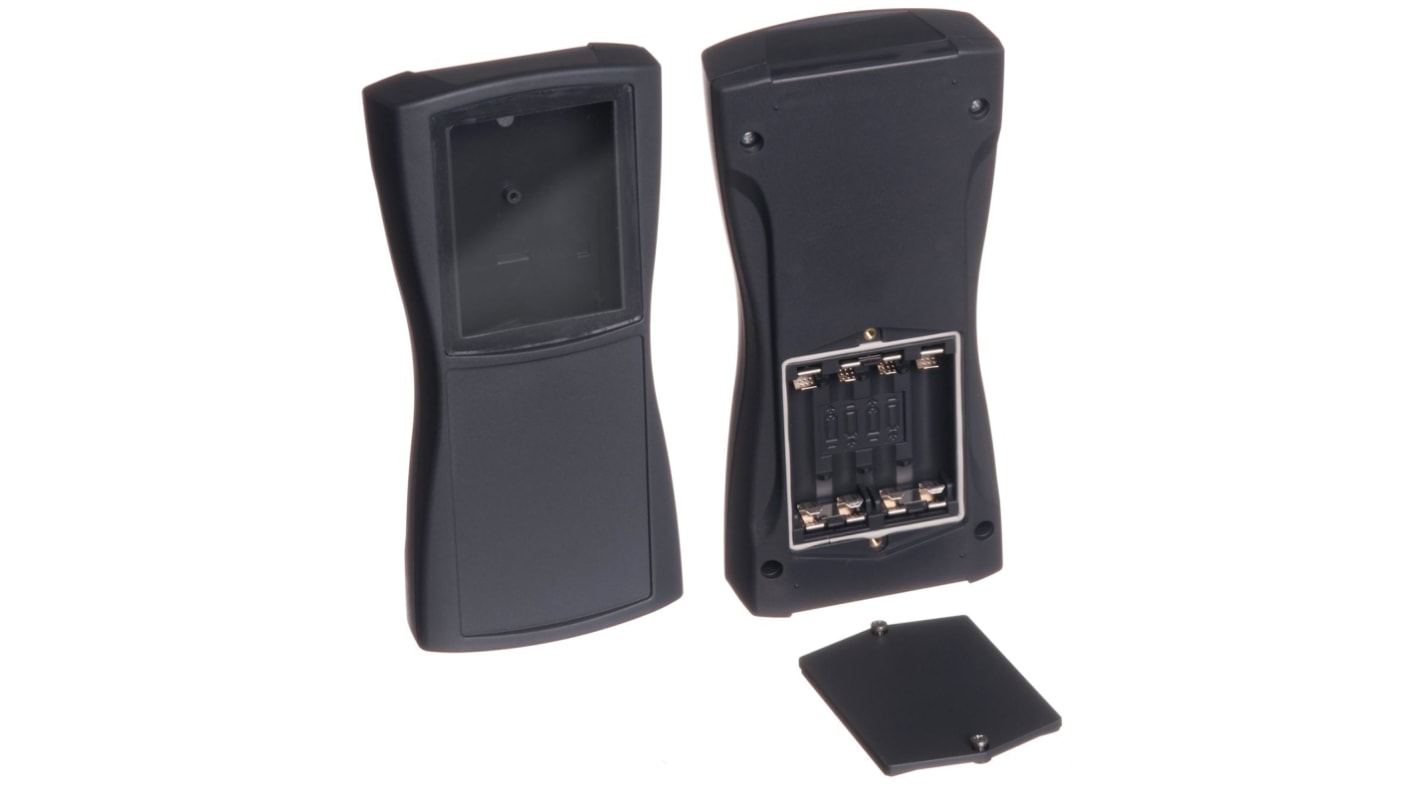

BOS-Streamline Handheld Enclosure

The BOS-Streamline ABS enclosure from Bopla is ideal for use in the field of mobile data recording and processing. The different angled design of the two half shells of this handheld case enables the lid and base to be arranged in parallel or as a console type. Also, thanks to the symmetrical design of the enclosure, it can be used horizontally or vertically depending on individual requirements. The enclosure has smooth areas on the front for fitting different interfaces, such as sub-D connectors.

Flat or inclined design by turning the enclosure half shells
Symmetrical design means it can be used horizontally or vertically
Decorative seal offers anti-knock protection and is available separately in yellow, red, blue, green and graphite grey (TPE)
The decorative seals provide IP65 protection (if used with a sealing cord to guarantee battery compartment sealing)
Available with or without a battery compartment
Screw covers to hide enclosure screws available separately, light grey or graphite grey

DIS variant: Ergonomic handheld enclosure with display screen and separate membrane keypad area. The display screen is not printed and can be glued in position by means of the adhesive film (included) which provides IP65 protection.
F variant: Ergonomic handheld enclosure with continuous membrane keypad area.

Note

Stock no. 770-9357 is supplied with a loop for attaching a lanyard and can only be upgraded to IP54 by using the decorative seal.

Specifications
Attribute Value
Body Material ABS
External Length 209.3 mm
External Width 98 mm
External Height 34.8 mm
Integral Battery Compartment Yes
IP Rating IP65
Display Window Yes
Colour Graphite Grey
External Dimensions 209.3 x 98 x 34.8mm
Push Buttons No
Series BOS-Streamline
Keypad Recess Yes
3 In stock for delivery within 1 working days
Price Each
£ 27.89
(exc. VAT)
£ 33.47
(inc. VAT)
Units
Per unit
1 - 14
£27.89
15 - 24
£26.46
25 +
£25.58
Not available for guaranteed pre 9am/10am delivery
