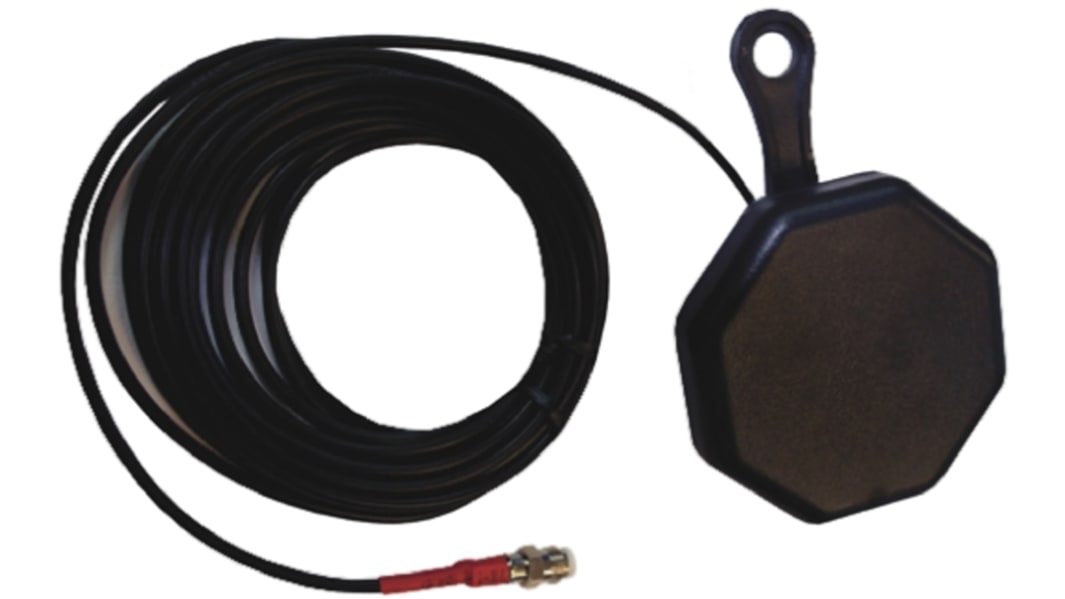

AEB660 CTi - 2G (GSM/GPRS), 3G (UTMS) Antenna, Adhesive, Through Hole/Bolted Mount, FME

  • RS Stock No. 716-5353
  • Mfr. Part No. AEB660
  • Brand CTi
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

Multi-Band GSM Body Mount Antenna

Designed to provide a discrete, vandal resistant solution for static and mobile applications
Multi-band (850/900, 1800/1900MHz, 3G and Bluetooth) cellular dipole
Tough, low profile, intrinsically safe ABS housing

GSM (Global System for Mobile communications) Antennas

Specifications
Attribute Value
RF Protocols 2G (GSM/GPRS), 3G (UTMS)
Supported Frequency Bands 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2450 MHz
Antenna Physical Form Puck
Antenna Mounting Type Adhesive, Through Hole/Bolted
Connector Type FME
Includes Lead Yes
Gain 2dBi
Connector Gender Female
Lead Length 4m
Antenna Internal Construction Dipole
3 In stock for FREE next working day delivery
Price Each
£ 10.92
(exc. VAT)
£ 13.10
(inc. VAT)
Units
Per unit
1 - 4
£10.92
5 - 9
£9.83
10 - 24
£9.39
25 +
£9.06
