Spring finger contact, SMT, 3mm height

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

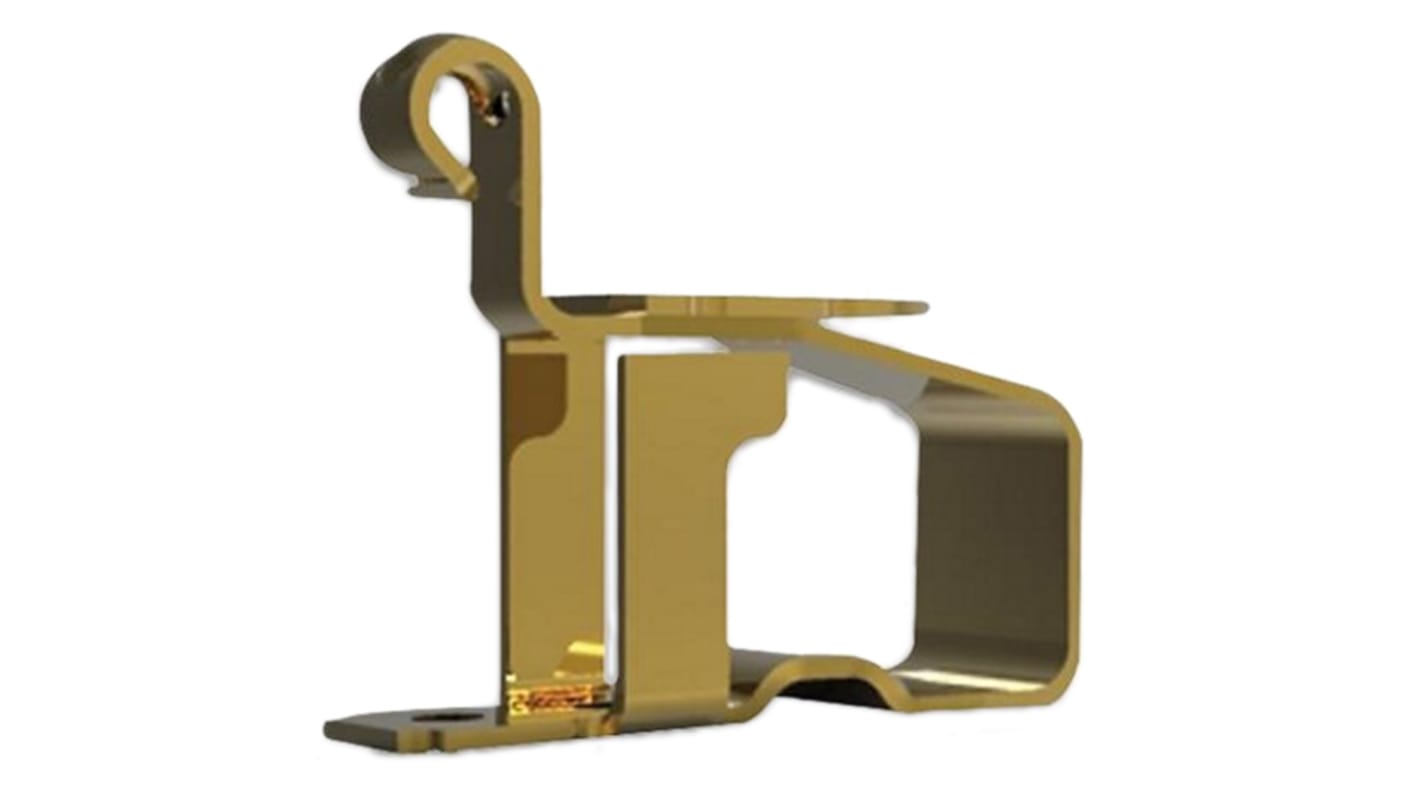

TE Connectivity Pre-Loaded Spring Finger Contacts

Spring fingers, also known as shield fingers, grounding springs or universal ground contacts, provide grounding between the device and PCB and shielding to prevent EMI noise and static caused by motors, speakers and microphones or any other vibrations within an application. Additional functions of spring fingers include antenna feeds, low voltage electrical connections and they can also be used as a connection for simple stacking applications between primary and secondary PCBs.
These spring fingers are gold plated and have a preloaded design with a highly engineered geometry including an enhanced side wall design. This design enables these pre-loaded spring fingers to be used in high speed manufacturing and more complex applications when a stable electrical contact with miniminal deflection is needed. The uncompressed height of these spring fingers is 3mm with a working height range of 2.1 to 2.7mm.
With a compact design, these pre-loaded spring fingers offer PCB space saving, design flexibility as well as a highly reliable connection.
Typical applications for these pre-loaded spring fingers include mobile phones, wearable devices, game consoles, tablets, patient monitoring devices, POS scanners, security devices and GPS devices.

Specifications
Attribute Value
Material Stainless Steel
Fixing Method Screw
Dimensions 3.26 x 1.3 x 3mm
Height 3mm
Length 3.26mm
Width 1.3mm
Available to back order for despatch 15/12/2020
Price Each (On a Tape of 4000)
£ 0.107
(exc. VAT)
£ 0.128
(inc. VAT)
Units
Per unit
Per Tape*
4000 +
£0.107
£428.00
*price indicative
