RF Solutions GPS Antenna ANT-GPSC-SMA SMA

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

ANT-GPSC-SMA GPS Antenna, RF Solutions

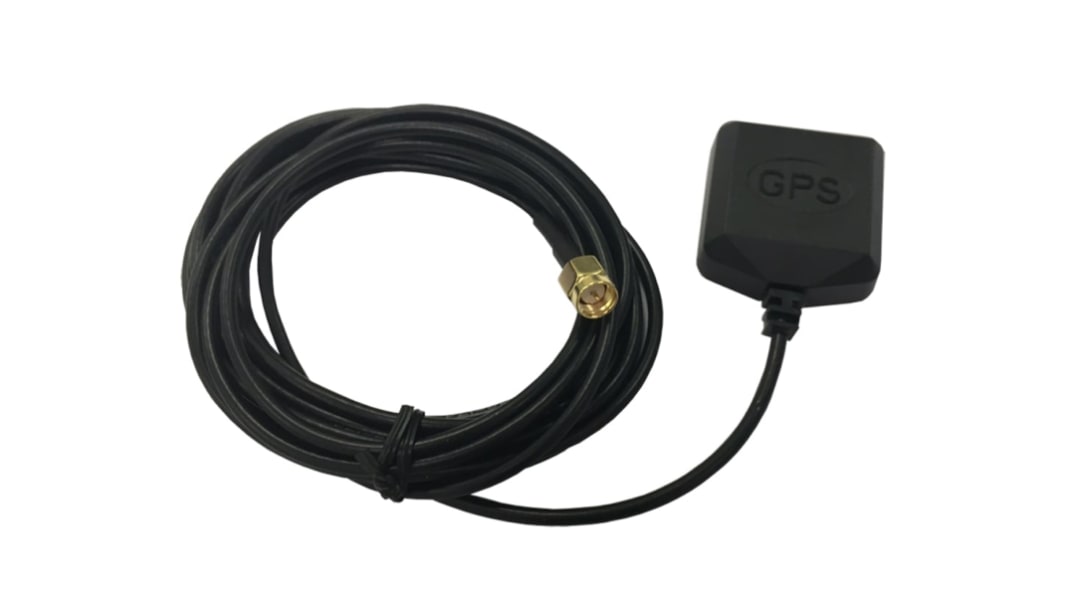

The ANT-GPSC-SMA from RF Solutions is an active GPS antenna featuring a 5 m cable with a male SMA connector.
This compact, waterproof package is ideal for GPS applications in harsh conditions and where space is limited. The ANT-GPSC-SMA offers both magnetic or screw mounting methods.

Features and Benefits
Compact GPS antenna
5 m RG174 Cable with SMA male connector
Built-in Low Noise Amplifer (LNA)
1575.43MHz +/- 3MHz
IP67 waterproof

GPS (Global Positioning System) Antennas

Specifications
Attribute Value
RF Protocols GPS
Internal/External External
Antenna Physical Form Square
Connector Type SMA
Antenna Mounting Type Magnetic
Lead Length 5m
Gain 28dBi
Includes Lead Yes
57 In stock for FREE next working day delivery
Price 1 Bag of 1
£ 7.34
(exc. VAT)
£ 8.81
(inc. VAT)
Bag(s)
1 - 4
£7.34
5 - 9
£7.05
10 - 24
£6.68
25 - 49
£6.24
50 +
£5.80
