Hammond 1455 Series Silver Anodised Aluminium Enclosure, IP54, Black Lid, 160 x 165 x 51.5mm
- RS Stock No.:
- 868-5012
- Mfr. Part No.:
- 1455T1602
- Brand:
- Hammond
2 In stock - FREE next working day delivery available
Added
Price Each
£26.30
(exc. VAT)
£31.56
(inc. VAT)
| Units | Per unit |
| 1 + | £26.30 |
- RS Stock No.:
- 868-5012
- Mfr. Part No.:
- 1455T1602
- Brand:
- Hammond
Legislation and Compliance
- COO (Country of Origin):
- CA
Product Details

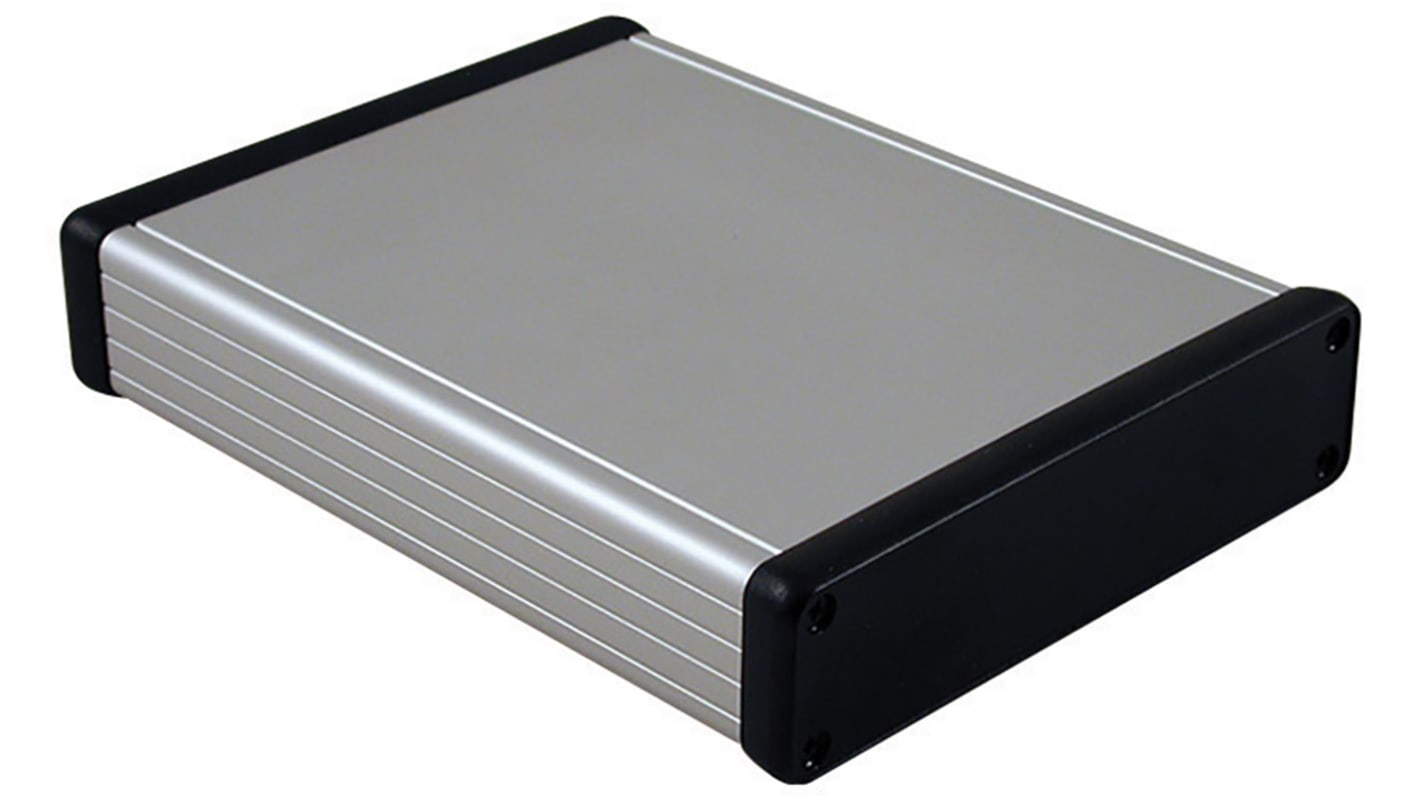

Hammond 1455 Enclosure with Plastic End Panels
The Hammond 1455 series enclosure has an extruded aluminium body and two easy to machine, black solid ABS end panels with integral bezel. These enclosures are designed to house P.C. boards or for equipment interfacing.
Features and Benefits
• Designed to house P.C. boards or for equipment interfacing
• Sized for standard Eurocards
• PCBs mount horizontally by sliding into internal slots extruded into the enclosure body
• Enclosure includes two solid black plastic end panels with integral bezel
• Rugged body constructed from extruded aluminium with a minimum thickness of 1.5 mm
• Extruded body includes a slide removable belly plate, except in smaller sizes (A, B, C & D)
• Smaller sizes (A & B) are rounded for better hand held ergonomics
• DIN Rail clips & flange kits are available separately
• Sized for standard Eurocards
• PCBs mount horizontally by sliding into internal slots extruded into the enclosure body
• Enclosure includes two solid black plastic end panels with integral bezel
• Rugged body constructed from extruded aluminium with a minimum thickness of 1.5 mm
• Extruded body includes a slide removable belly plate, except in smaller sizes (A, B, C & D)
• Smaller sizes (A & B) are rounded for better hand held ergonomics
• DIN Rail clips & flange kits are available separately
FAQ:
Can these enclosures be used outdoor?
No, these enclosures cannot be used outdoors as they do not meet any IP rating standard. They have been designed for strictly indoor use.
What is supplied?
• 1 x extruded aluminium body,
• 2 x ABS end panels,
• 6 x end panel screws
• Self-adhesive rubber feet.
Specifications
Attribute | Value |
|---|---|
| Body Material | Aluminium |
| External Length | 160 mm |
| External Height | 51.5 mm |
| External Width | 165 mm |
| External Dimensions | 160 x 165 x 51.5mm |
| Range | 1455 |
| IP Rating | IP54 |
| Colour | Silver Anodised |
| Lid Colour | Black |
| Flanged | No |
| Shielded | No |
| Series | 1455 |
| Weight | 538g |
| Explosion Proof | No |
