- RS Stock No.:
- 528-7268
- Mfr. Part No.:
- 1590DBK
- Brand:
- Hammond
3 In stock - FREE next working day delivery available
21 available from Europe for delivery within 1 working day(s).
Added
Price Each
£27.15
(exc. VAT)
£32.58
(inc. VAT)
Units | Per unit |
1 - 4 | £27.15 |
5 - 9 | £25.79 |
10 - 24 | £24.44 |
25 - 49 | £23.08 |
50 + | £21.71 |
- RS Stock No.:
- 528-7268
- Mfr. Part No.:
- 1590DBK
- Brand:
- Hammond
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- TW
Product Details

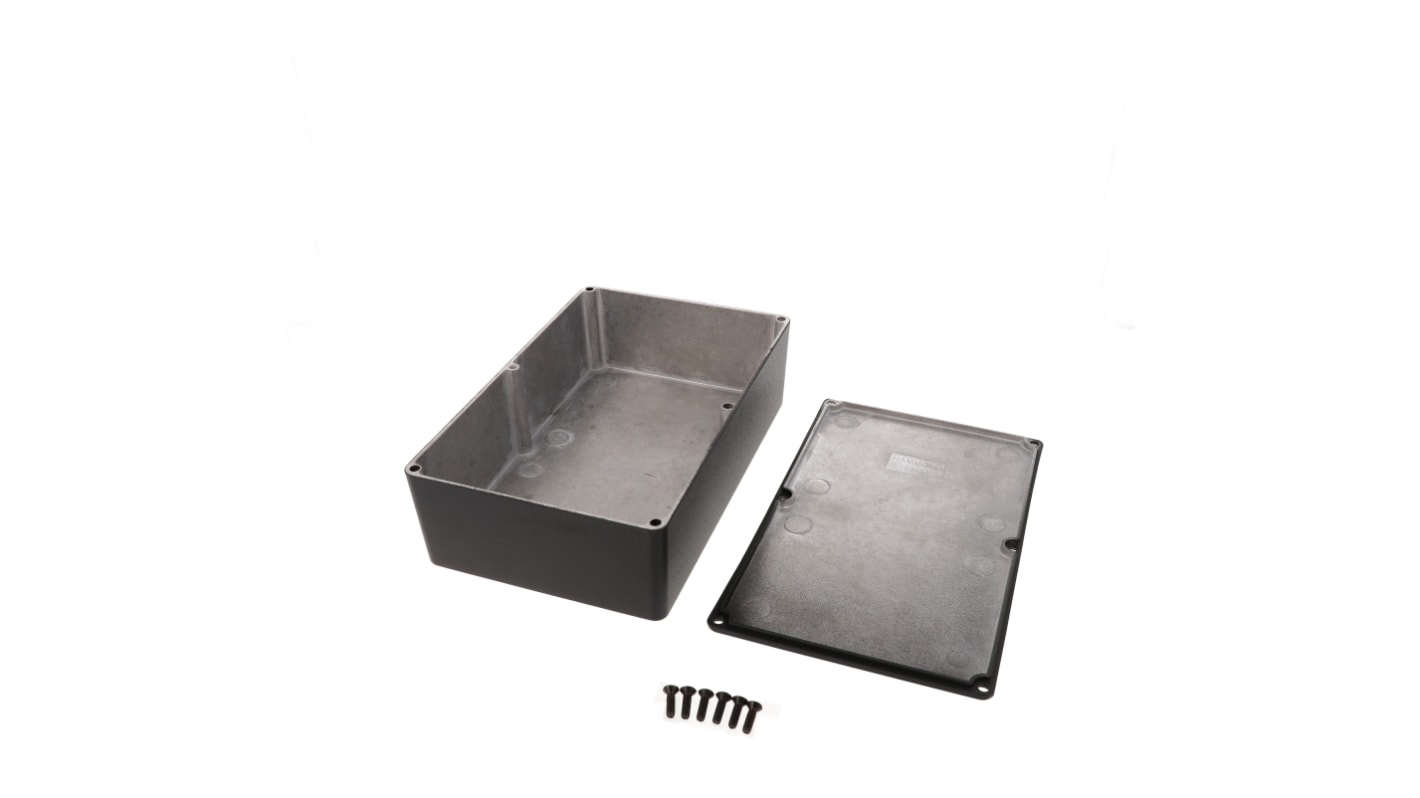

Hammond Enclosure, 187.5 (L) x 119.5 (W) x 52mm (H), Shielded, Black Colour - 1590 Series - 1590DBK
Safely mount and store your sensitive electronic components in this enclosure from Hammond. It has external dimensions of 187.5 (L) x 119.5 (W) x 52mm (H) so you'll have enough space to fit standard PCBs. A low side wall draft angle of 2° or less means cards slot in easily. The unit's robust lap-joint construction ensures it's tightly sealed to protect signals from EMI or RFI given off by nearby electronics. As it comes with machine screws, you can swiftly secure the lid and put the enclosure to work.
Features & Benefits
• Stainless steel screws resist corrosion, for safe use in damp settings
• Robust polyester powder paint finish accepts labels for ease of identification
• Mounting holes are factory pre-tapped for quick installation without drilling
• Robust polyester powder paint finish accepts labels for ease of identification
• Mounting holes are factory pre-tapped for quick installation without drilling
Applications
• Mining and quarrying industry
• Food and beverage processing
• Chemical plants
• Food and beverage processing
• Chemical plants
Is this enclosure protected from dust?
Yes, this enclosure's lap-joint construction achieves an IP54 rating, indicating protection against dust and water splashes.
What material is the box made from?
It's made from rugged die-cast aluminium that stands up to impacts and shrugs off corrosion.
Specifications
Attribute | Value |
---|---|
Body Material | Die Cast Aluminium |
External Length | 187.5 mm |
External Height | 52 mm |
External Width | 119.5 mm |
External Dimensions | 187.5 x 119.5 x 52mm |
Range | 1590 |
IP Rating | IP54 |
Colour | Black |
Lid Colour | Black |
Flanged | No |
Shielded | Yes |
Series | 1590 |
Number Of Knockouts | 0 |
Weight | 501g |
Transparent Door | No |
RAL Code | RAL 9005 |
Explosion Proof | No |
