- RS Stock No.:
- 528-7173
- Mfr. Part No.:
- 1590CBK
- Brand:
- Hammond
6 In stock - FREE next working day delivery available
10 available from Europe for delivery within 1 working day(s).
Added
Price Each
£16.24
(exc. VAT)
£19.49
(inc. VAT)
Units | Per unit |
1 - 4 | £16.24 |
5 - 9 | £15.42 |
10 - 24 | £14.63 |
25 - 49 | £13.80 |
50 + | £13.00 |
- RS Stock No.:
- 528-7173
- Mfr. Part No.:
- 1590CBK
- Brand:
- Hammond
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

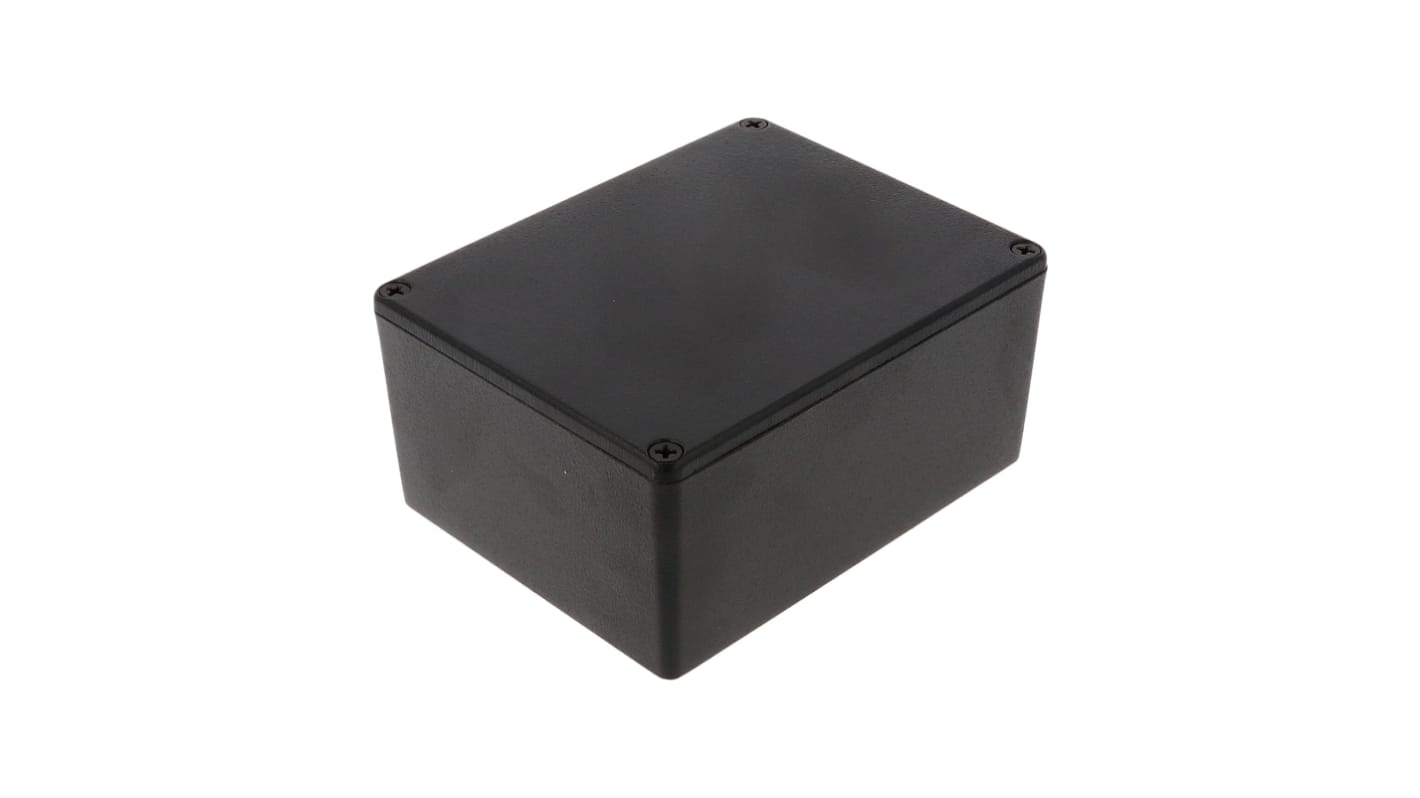

Hammond Enclosure, 120 (L) x 94 (W) x 57mm (H), Die-Cast Aluminium Alloy, Black Colour - 1590 Series - 1590CBK
Protect your electrical components from external contaminants with this enclosure from Hammond. It's made of durable die-cast aluminium that won't give in to corrosion and impact, so you can rely on it for long-lasting service in harsh industrial environments. The lap-joint construction supports smooth signal transmission by shielding the contents from EMI and RFI. An IP54 rating indicates the box is protected from limited amounts of dust and can handle splashes of water from any direction.
Features & Benefits
• Screw-down lid to prevent unauthorised access
• Low side wall draft angle of 2° for the easy insertion of printed circuit boards
• Weighs just 280g, so it puts minimal pressure on your mounting surface
• Comes with pre-drilled holes and colour-matched screws, saving time and effort during installation
• Low side wall draft angle of 2° for the easy insertion of printed circuit boards
• Weighs just 280g, so it puts minimal pressure on your mounting surface
• Comes with pre-drilled holes and colour-matched screws, saving time and effort during installation
Applications
• Data centres
• Manufacturing industry
• Medical facilities
• Manufacturing industry
• Medical facilities
What's the finish on this enclosure?
It's finished with black polyester paint, which means it's easy to apply labels or silk screens for identification purposes. This coating also provides a high level of UV resistance to help protect the box from damage caused by direct sunlight.
Specifications
Attribute | Value |
---|---|
Body Material | Die Cast Aluminium |
External Length | 119 mm |
External Height | 56 mm |
External Width | 94 mm |
External Dimensions | 119 x 94 x 56mm |
IP Rating | IP54 |
Range | 1590 |
Colour | Black |
Lid Colour | Black |
Flanged | No |
Shielded | Yes |
Series | 1590 |
Number Of Knockouts | 0 |
Weight | 280g |
Transparent Door | No |
RAL Code | RAL 9005 |
Explosion Proof | No |
Gasket Material | Silicone |
