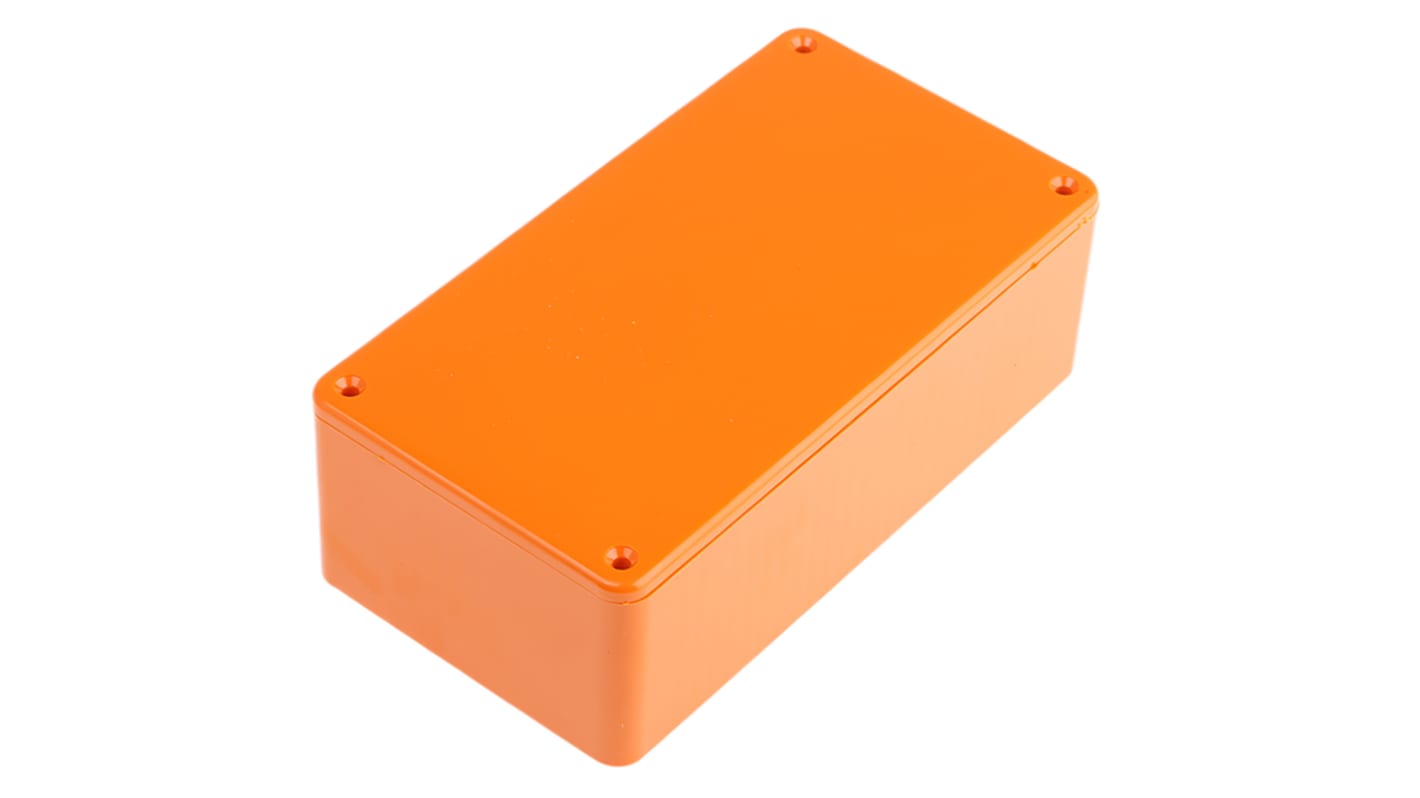

CAMDENBOSS 2000, ABS Enclosure, IP54, 150 x 80 x 50mm Orange

  • RS Stock No. 281-6841
  • Mfr. Part No. BIM2005/15-ORG/ORG
  • Brand CAMDENBOSS
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

2000 Series General Purpose ABS Cases

A range of multi-purpose electronic enclosures with a solid ABS deep lid, designed for a broad range of applications. Ideal for when tall electrical components require housing. Protection class IP rating IP54.

Features and Benefits:

Deep lid and base moulded in ABS
Low draught angle for mounting control elements on side walls
Polished finish for ease of cleaning
Lid mounted by four M3 machine screws
Brass inserts in base for repetitive removal of the lid
Excellent properties for machining
Integral mounting guides to accept 1.6mm PCBs
Withstand temperatures to 85°C
Flammability rating of UL94-HB

(IP) Ingress Protection and what it means

IP rating classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact and water in electrical enclosures.

Frequently Asked Questions

Can the box be used outside?
This enclosure has IP 54 rating so only protected from water spray, so this product is not recommended for outside use.

Does this product have FRI shielding?
No, this product does not have FRI shielding

Contents

Base and deep profile lid, 4 x M3 machine screws, PCB adapters

Specifications
Attribute Value
Body Material ABS
External Length 150 mm
External Height 50 mm
External Width 80 mm
External Dimensions 150 x 80 x 50mm
IP Rating IP54
Colour Orange
Lid Colour Orange
Shielded No
Series 2000
39 In stock for FREE next working day delivery
Price Each
£ 5.03
(exc. VAT)
£ 6.04
(inc. VAT)
Units
Per unit
1 - 9
£5.03
10 - 14
£4.76
15 +
£4.60
