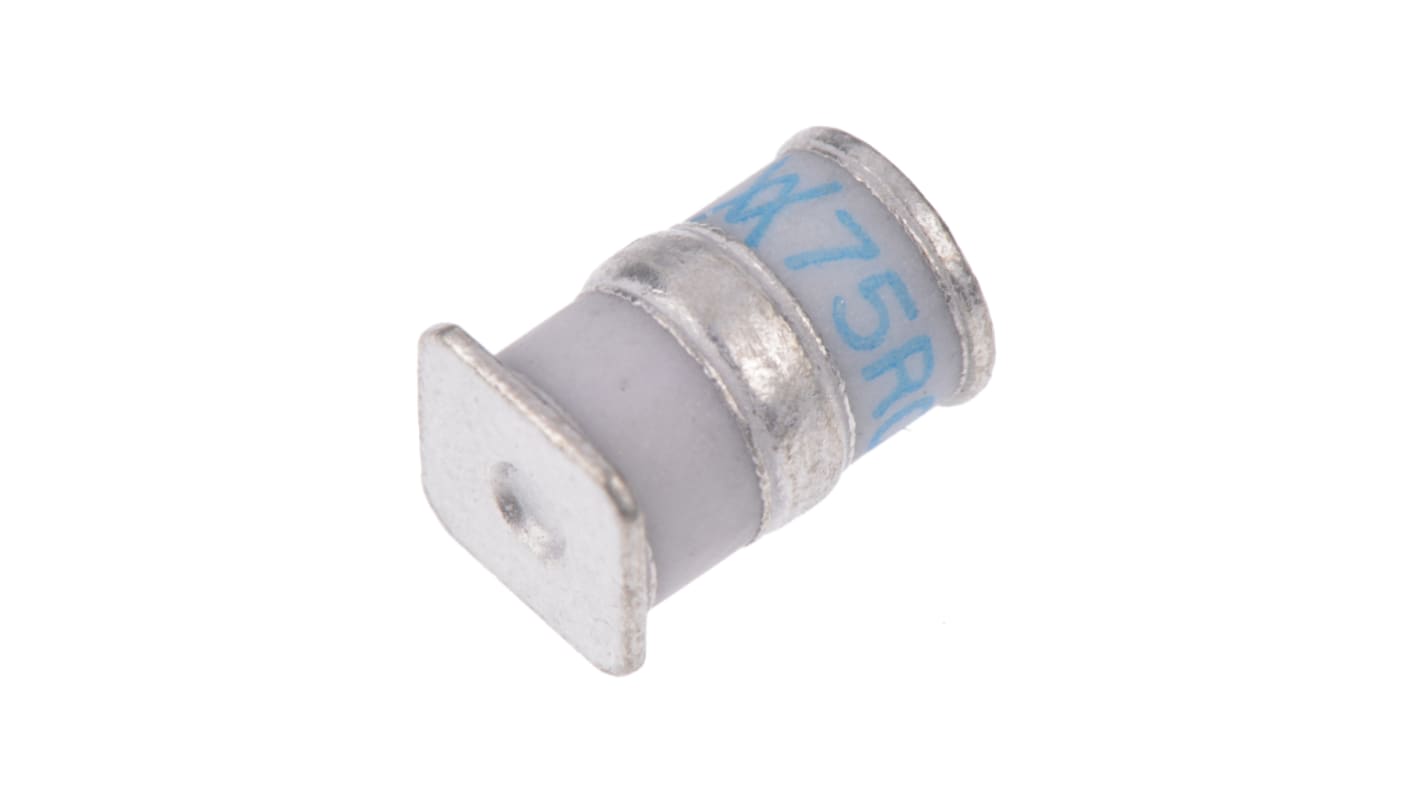

Littelfuse GTCS35 Series 75V 5kA SMD 3 Electrode Gas Discharge Tube

  • RS Stock No. 164-8196
  • Mfr. Part No. GTCS35-750M-R05-2
  • Brand Littelfuse
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): HK
Product Details

Gas Discharge Tubes - GTCX35-XXXM-R05 Series

GTCX35-XXXM-R05 Series are 5mm 3Pole GDTs (ceramic gas discharge tubes), are commonly used to help protect sensitive telecom equipment such as communication lines, signal lines and data transmission lines from damage caused by transient surge voltages that typically result from lightning strikes and equipment switching operations

Broad Voltage Range from 75V - 600V
Compact, small form factor suitable for efficient assembly
Various form factors: surface-mount, leaded, no leads
Optional fail-short mechanism on some devices
Low capacitance and insertion loss
Crowbar overvoltage protection

Applications in:

Telecommunications- MDF modules, xDSL equipment, RF system protection, antenna and base station
Industrial and consumer electronics, such as Surge protectors and Alarm systems

Specifications
Attribute Value
Series GTCS35
Suppressor Type 3 Electrode Gas Discharge Tube
Maximum Surge Current 5kA
DC Spark Over Voltage 75V
Impulse Spark Over Voltage <550 V @ 1000 Vμs
Mounting Type Surface Mount
Length 5mm
Maximum Operating Temperature +90°C
Minimum Operating Temperature -40°C
Capacitance <1.2pF
4000 In stock - FREE next working day delivery available
Price Each (On a Tape of 1000)
£ 0.551
(exc. VAT)
£ 0.661
(inc. VAT)
Units
Per unit
Per Tape*
1000 +
£0.551
£551.00
*price indicative
