Crowcon Carbon Monoxide, Hydrogen Sulphide, Oxygen Handheld Gas Detector, For Industrial ATEX Approved

  • RS Stock No. 122-5520
  • Mfr. Part No. T4-HOCA/RS
  • Brand Crowcon
Technical Reference
Legislation and Compliance
RoHS Status: Exempt
COO (Country of Origin): GB
Product Details

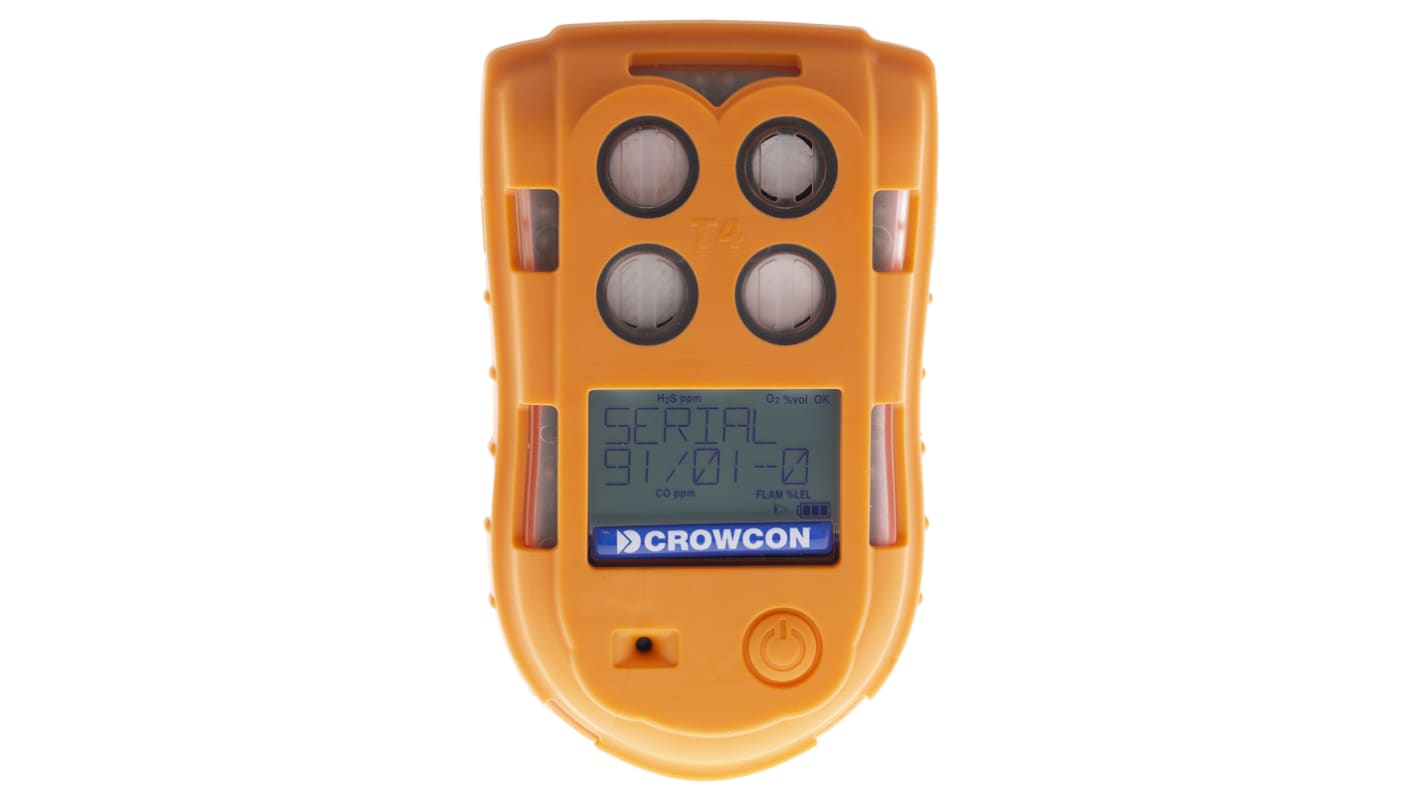

Crowcon T4 Portable Multigas Detector

Crowcon T4 portable multigas detectors are intrinsically safe, hazardous area certified, for use in harsh environments. They offer compliance, robustness and low cost ownership in a simple-to-use solution. The large single button allows operation while wearing gloves. The intuitive menu minimises training time. Features include drop testing to 4 m, an integral rubber boot and protection from water ingress to IP65 and IP67. T4 has a unique TWA Resume function. It ensures time weighted average (TWA) toxic gas exposure is calculated accurately over an entire shift, even if the instrument is switched off for a break or during travel between sites. Positive safety LEDs illuminate green (for compliant) or red (if battery low, bump test required, calibration due, T4 in gas alarm or T4 instrument fault).

Features and Benefits

Front mounted, backlit display
Option to flip the screen 180° for easy viewing when instrument attached to clothing
Audible (95 dB), vibrating (integrated) and visible (LED) alarms
Operating temperature -20 to +55 °C
Humidity 10 - 95% RH @ 40 °C non-condensing
Data logging 130 hours @ 10 second intervals (approximately 78 000 logs)
Events logging, 3500 events
Ingress protection independently tested to IP65 and IP67
Compliance EMC Directive 2014/30/EU
Thick anti-shock rubber casing
Drop tested 4 m on to concrete
Dimensions 135 x 80 x 35 mm
Weight 282 g

Areas of Application

Oil and gas production
Utilities
Manufacturing industry
Food and drink industries
Wineries and breweries
Maritime engineering
Personal monitoring
Portable safety applications
Hazardous areas
Explosive atmospheres

Note

T4 detects up to four gas types, depending on choice of model: oxygen depletion and flammable gases detection model T4-ZOZL ( 122-5524 ); oxygen depletion, flammable gases and carbon monoxide detection model T4-ZOCL ( 122-5523 ); oxygen depletion, flammable gases and hydrogen sulphide detection model T4-HOZL ( 122-5522 ); oxygen depletion, flammable gases, carbon monoxide and hydrogen sulphide detection model T4-HOCA/RS ( 122-5520 ). T4 includes improved detection of pentane and long chain hydrocarbons.

A seperate charger is needed but NOT supplied. Please see part number 122-5521

Approvals

IECEx, ATEX, UL, INMETRO, MED

Supplied with

Integrated alligator clip and tethering loop, bump/calibration plate (to apply test gas), rechargeable lithium-ion battery (typically 18 hour runtime, 5.5 hour recharge), user & operator manual, quick start guide, calibration report, declaration of conformity

//media.rs-online.com/t_line/L0431959-99.gif
Specifications
Attribute Value
Gases Detected Carbon Monoxide, Hydrogen Sulphide, Oxygen
Application Industrial
ATEX Approval Yes
Meter Type Handheld
Display Type LED
Audible Alarm Yes
Visual Alarm Yes
Power Source Battery
Battery Type Rechargeable Li-ion
Battery Life 24 h
Dimensions 135 x 80 x 35mm
Weight 282g
Width 35mm
Hazardous Area Certification ATEX, IECEx
Model Number p T4-HOCL
Height 80mm
Minimum Operating Temperature -20°C
Maximum Operating Temperature +55°C
Length 135mm
Available to back order for despatch 19/12/2019
Price Each
£ 446.04
(exc. VAT)
£ 535.25
(inc. VAT)
Units
Per unit
1 +
£446.04
