Schurter T12 Series Circuit Breaker Cover, IP54

  • RS Stock No. 284-6230
  • Mfr. Part No. 4400.0405
  • Brand Schurter
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CH
Product Details

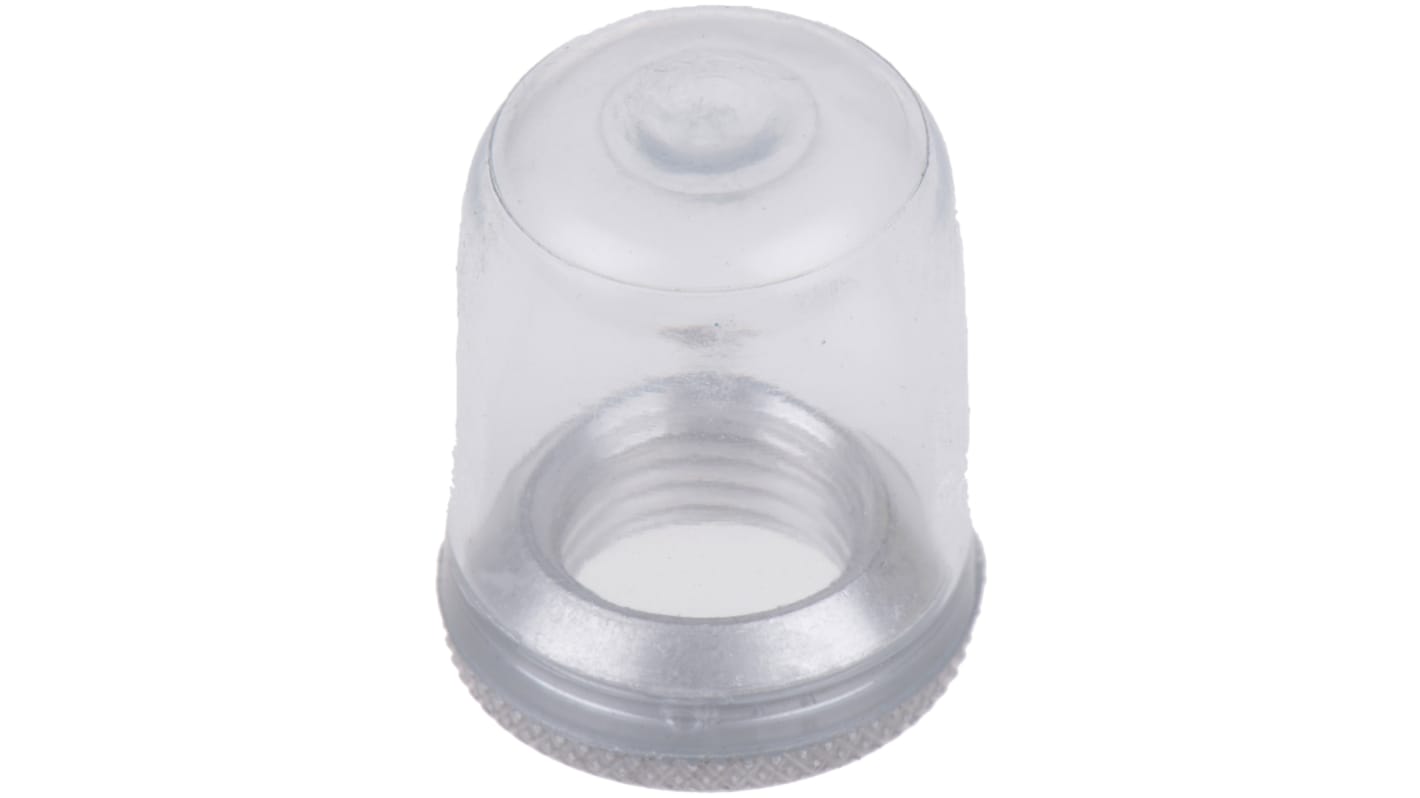

Sealing hood For T12 / T11 circuit breakers

Sealing hood for front panel mounting on T11 and T12 series circuit breakers, threaded guide fixing.

Schurter Fuse Cover

The Schurter fuse cover is a casing that surrounds electrical fuses in order to provide insulation and protection against water or contamination. It is a 1-pole, reset type panel mount fuse. The sealing hood for front panel mounting on T11 and T12 series circuit breakers, threaded guide fixing. All CBEs have blade terminals and have an insulation resistance greater than 100Mohm.

Features and Benefits

• 6.3 x 0.8mm quick connect terminal
• 6mm threaded neck
• Operating temperature ranges between -5°C and 60°C
• Positively trip free release
• Protective cap for circuit breaker
• Thermal circuit breaker

Applications

• Power tools
• Household equipment
• Power supplies and chargers
• Industrial appliances

Certifications

• IP54 rated
• IEC 60934
• UL 1077 listed
• CSA C22.2 235
•GB 17701

Thermal Magnetic Convertible

All CBEs have blade terminals and have an insulation resistance greater than 100MΩ (MegaOhms).

Specifications
Attribute Value
Series T12
Fuse Holder Type Panel Mount
International Protection Rating IP54
494 In stock for FREE next working day delivery
Price Each
£ 1.78
(exc. VAT)
£ 2.14
(inc. VAT)
Units
Per unit
1 - 9
£1.78
10 - 49
£1.47
50 - 99
£1.24
100 - 249
£1.08
250 +
£1.01
